395-068 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

...

Part	Material - Insulation	Termination Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Number of Rows [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions	Contact Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch	Pitch	Features	Contact Finish	Color	Card Thickness [Max]	Card Thickness [Min]	Read Out	Termination	Card Type	Gender	Termination Rows	Number of Rows

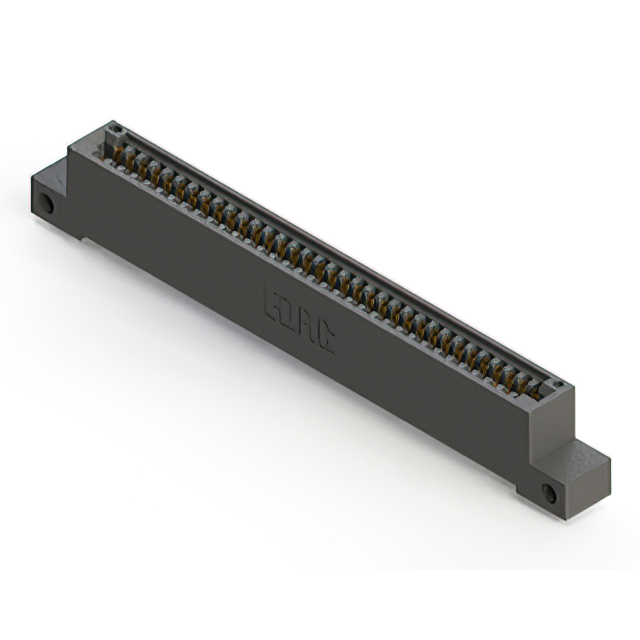

EDAC Inc. 395-068-556-212	Polyester Thermoplastic	2	0.25 Ám	10 Áin	34	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	68 positions	Cantilever	Copper Alloy	-40 C	105 ░C	Board Edge Straddle Mount	0.1 "	2.54 mm	Card Extender	Gold	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Solder	Non Specified - Dual Edge	Female
EDAC Inc. 395-068-558-804	Polyester Thermoplastic	2	0.25 Ám	10 Áin	34	2		0.156 "	3.96 mm	68 positions	Cantilever	Copper Alloy	-40 C	105 ░C	Right Angle Through Hole	0.1 "	2.54 mm		Gold	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Solder	Non Specified - Dual Edge	Female
EDAC Inc. 395-068-520-808	Polyester Thermoplastic	2	0.25 Ám	10 Áin	34	2	4-40 Threaded Insert Top Mount Opening			68 positions	Cantilever	Copper Alloy	-40 C	105 ░C	Through Hole	0.1 "	2.54 mm		Gold	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Solder	Non Specified - Dual Edge	Female
EDAC Inc. 395-068-524-407	Polyester Thermoplastic		0.25 Ám	10 Áin	68		M3 Threaded Insert Top Mount Opening			68 positions	Cantilever	Copper Alloy	-40 C	105 ░C	Through Hole	0.1 "	2.54 mm		Gold	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Solder	Non Specified - Single Edge	Female	1	1
EDAC Inc. 395-068-541-403	Polyester Thermoplastic		0.25 Ám	10 Áin	68		Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	68 positions	Cantilever	Copper Alloy	-40 C	105 ░C	Through Hole	0.1 "	2.54 mm		Gold	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Wire Wrap	Non Specified - Single Edge	Female	1	1
EDAC Inc. 395-068-540-104	Polyester Thermoplastic		0.25 Ám	10 Áin	68		Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	68 positions	Cantilever	Copper Alloy	-40 C	105 ░C	Through Hole	0.1 "	2.54 mm		Gold	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Wire Wrap	Non Specified - Single Edge	Female	1	1
EDAC Inc. 395-068-542-102	Polyester Thermoplastic		0.25 Ám	10 Áin	68		Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	68 positions	Cantilever	Copper Alloy	-40 C	105 ░C	Through Hole	0.1 "	2.54 mm		Gold	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Wire Wrap	Non Specified - Single Edge	Female	1	1
EDAC Inc. 395-068-560-212	Polyester Thermoplastic	2	0.25 Ám	10 Áin	34	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	68 positions	Cantilever	Copper Alloy	-40 C	105 ░C	Board Edge Straddle Mount	0.1 "	2.54 mm	Card Extender	Gold	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Solder	Non Specified - Dual Edge	Female
EDAC Inc. 395-068-559-201	Polyester Thermoplastic	2	0.25 Ám	10 Áin	34	2				68 positions	Cantilever	Copper Alloy	-40 C	105 ░C	Right Angle Through Hole	0.1 "	2.54 mm		Gold	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Solder	Non Specified - Dual Edge	Female
EDAC Inc. 395-068-523-107	Polyester Thermoplastic		0.25 Ám	10 Áin	68		Flush Mount M3 Threaded Insert Top Opening			68 positions	Cantilever	Copper Alloy	-40 C	105 ░C	Through Hole	0.1 "	2.54 mm		Gold	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Solder	Non Specified - Single Edge	Female	1	1
