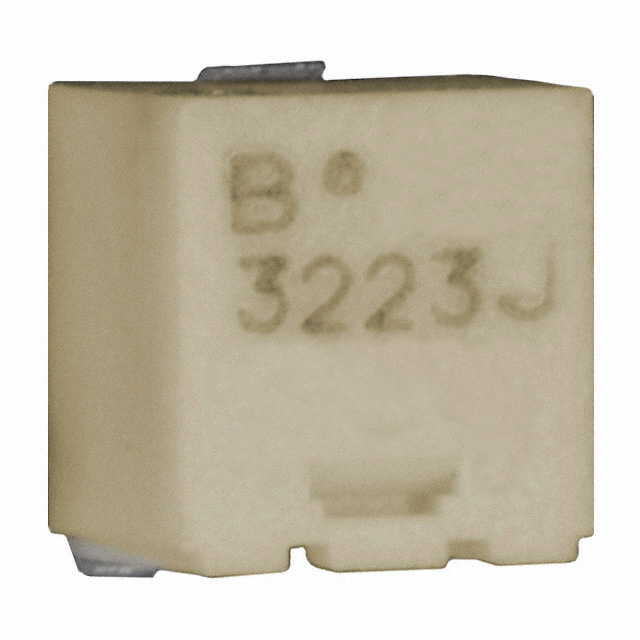

3223J Series
Manufacturer: Bourns Inc.
Beta
⌘K
TRIMMER 10OHM 0.125W J LEAD SIDE
| Part | Number of Turns | Adjustment Type | Power (Watts) | Power (Watts) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Termination Style | Resistive Material | Resistance | Tolerance | Temperature Coefficient | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 11 | Side Adjustment | 0.125 W | 0.125 W | 0.154 " | 3.18 mm | 0.125 " | 3.9 mm | J Lead | Cermet | 10 Ohms | 20 % | 100 ppm/°C | Surface Mount |
Bourns Inc. | 11 | Side Adjustment | 0.125 W | 0.125 W | 0.154 " | 3.18 mm | 0.125 " | 3.9 mm | J Lead | Cermet | 1 MOhms | 20 % | 100 ppm/°C | Surface Mount |
Bourns Inc. | 11 | Side Adjustment | 0.125 W | 0.125 W | 0.154 " | 3.18 mm | 0.125 " | 3.9 mm | J Lead | Cermet | 200000 Ohms | 20 % | 100 ppm/°C | Surface Mount |
Bourns Inc. | 11 | Side Adjustment | 0.125 W | 0.125 W | 0.154 " | 3.18 mm | 0.125 " | 3.9 mm | J Lead | Cermet | 5 kOhms | 20 % | 100 ppm/°C | Surface Mount |
Bourns Inc. | 11 | Side Adjustment | 0.125 W | 0.125 W | 0.154 " | 3.18 mm | 0.125 " | 3.9 mm | J Lead | Cermet | 20 Ohms | 20 % | 100 ppm/°C | Surface Mount |
Bourns Inc. | 11 | Side Adjustment | 0.125 W | 0.125 W | 0.154 " | 3.18 mm | 0.125 " | 3.9 mm | J Lead | Cermet | 2 MOhms | 20 % | 100 ppm/°C | Surface Mount |
Bourns Inc. | 11 | Side Adjustment | 0.125 W | 0.125 W | 0.154 " | 3.18 mm | 0.125 " | 3.9 mm | J Lead | Cermet | 0.5 kOhms | 20 % | 100 ppm/°C | Surface Mount |
Bourns Inc. | 11 | Side Adjustment | 0.125 W | 0.125 W | 0.154 " | 3.18 mm | 0.125 " | 3.9 mm | J Lead | Cermet | 100 kOhms | 20 % | 100 ppm/°C | Surface Mount |
