LCA500 Series

Catalog

CONN TERM RECT TONG 500 MCM #1

Part	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Material	Contact Finish	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Terminal Style	Terminal Type	Color	Mounting Type	Termination	Insulation	Stud/Tab Size	Tab Thickness	Tab Thickness	Width - Outer Edges	Width - Outer Edges	Wire Gauge	Length - Overall [x]	Length - Overall [x]	Diameter - Ring ID	Diameter - Ring ID
Panduit Corp LCA500-1F-6	1.06 "	26.92 mm	Copper	Electro-Tin	26.16 mm	1.03 in	Single Stud Hole	Rectangular Tongue	Brown	Free Hanging (In-Line) Right Angle	Barrel Crimp	Non-Insulated	1 Stud	5.59 mm	0.22 in	1.54 in	39.12 mm	500 MCM

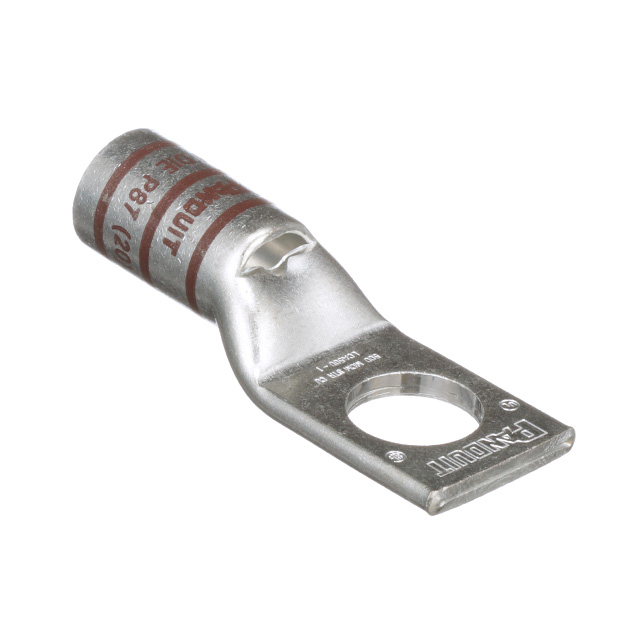

Panduit Corp LCA500-1-6	1.06 "	26.92 mm	Copper	Electro-Tin	26.16 mm	1.03 in	Single Stud Hole	Rectangular Tongue	Brown	Free Hanging (In-Line)	Barrel Crimp	Non-Insulated	1 Stud	5.59 mm	0.22 in	1.54 in	39.12 mm	500 MCM	4.26 in	108.2 mm

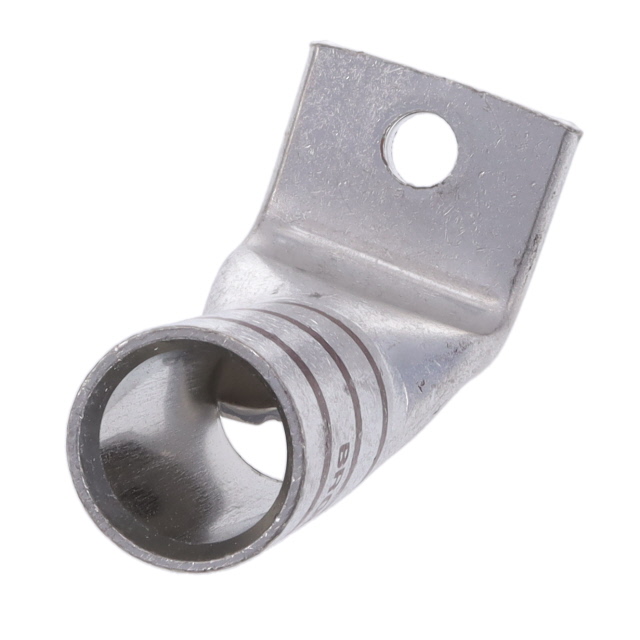

Panduit Corp LCA500-38F-6	1.06 "	26.92 mm	Copper	Electro-Tin	10.41 mm	0.41 "	Single Stud Hole	Rectangular Tongue	Brown	Free Hanging (In-Line) Right Angle	Barrel Crimp	Non-Insulated	0.375 Stud	5.59 mm	0.22 in	1.54 in	39.12 mm	500 MCM

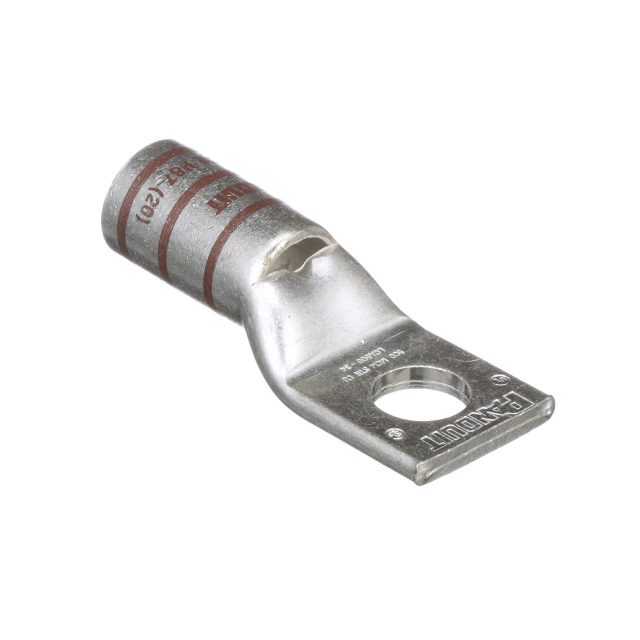

Panduit Corp LCA500-34-6	1.06 "	26.92 mm	Copper	Electro-Tin	19.81 mm	0.78 in	Single Stud Hole	Rectangular Tongue	Brown	Free Hanging (In-Line)	Barrel Crimp	Non-Insulated	0.75 Stud	5.59 mm	0.22 in	1.54 in	39.12 mm	500 MCM	3.89 in	98.81 mm
Panduit Corp LCA500-78H-6	1.06 "	26.92 mm	Copper	Electro-Tin	23.11 mm	0.91 "	Single Stud Hole	Rectangular Tongue	Brown	Free Hanging (In-Line)	Barrel Crimp	Non-Insulated		5.59 mm	0.22 in	1.54 in	39.12 mm	500 MCM

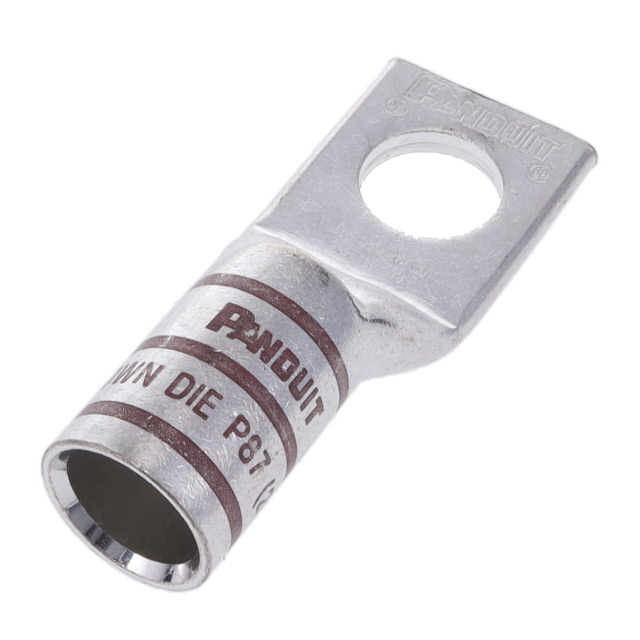

Panduit Corp LCA500-78-6	1.06 "	26.92 mm	Copper	Electro-Tin	23.11 mm	0.91 "	Single Stud Hole	Rectangular Tongue	Brown	Free Hanging (In-Line)	Barrel Crimp	Non-Insulated		5.59 mm	0.22 in	1.54 in	39.12 mm	500 MCM	4.14 in	105.16 mm
Panduit Corp LCA500-34F-6	1.06 "	26.92 mm	Copper	Electro-Tin	19.81 mm	0.78 in	Single Stud Hole	Rectangular Tongue	Brown	Free Hanging (In-Line) Right Angle	Barrel Crimp	Non-Insulated	0.75 Stud	5.59 mm	0.22 in	1.54 in	39.12 mm	500 MCM
Panduit Corp LCA500-78F-6	1.06 "	26.92 mm	Copper	Electro-Tin	23.11 mm	0.91 "	Single Stud Hole	Rectangular Tongue	Brown	Free Hanging (In-Line) Right Angle	Barrel Crimp	Non-Insulated		5.59 mm	0.22 in	1.54 in	39.12 mm	500 MCM

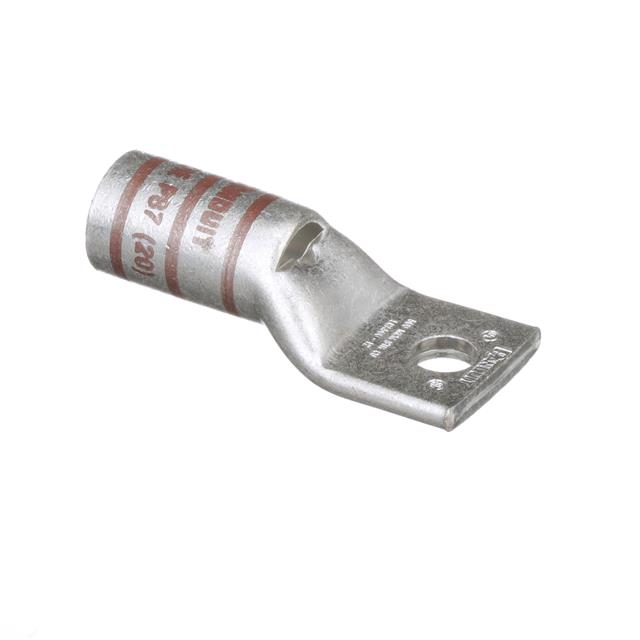

Panduit Corp LCA500-12-6	1.06 "	26.92 mm	Copper	Electro-Tin			Single Stud Hole	Rectangular Tongue	Brown	Free Hanging (In-Line)	Barrel Crimp	Non-Insulated	0.5 Stud	5.59 mm	0.22 in	1.54 in	39.12 mm	500 MCM	3.54 in	89.92 mm	13.46 mm	0.53 in
