DRV8804 Series
Manufacturer: Texas Instruments
Beta
⌘K
65V, 2.3A 4 CHANNEL LOW-SIDE DRIVER WITH INTEGRATED SPI AND OVERCURRENT PROTECTION
| Part | Package / Case | Package / Case [y] | Package / Case [y] | Applications | Function | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Output | Motor Type - AC, DC | Voltage - Load [Min] | Voltage - Load [Max] | Output Configuration | Interface | Motor Type - Stepper | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Technology | Supplied Contents | Primary Attributes | Embedded | Embedded | Type | Utilized IC / Part | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 20-SOIC | 0.295 in | 7.5 mm | General Purpose | Driver - Fully Integrated Control and Power Stage | 60 V | 8.2 V | 800 mA | Brushed DC | 8.2 V | 60 V | Low Side (4) | SPI | Unipolar | Surface Mount | 150 °C | -40 °C | 20-SOIC | Power MOSFET | |||||||

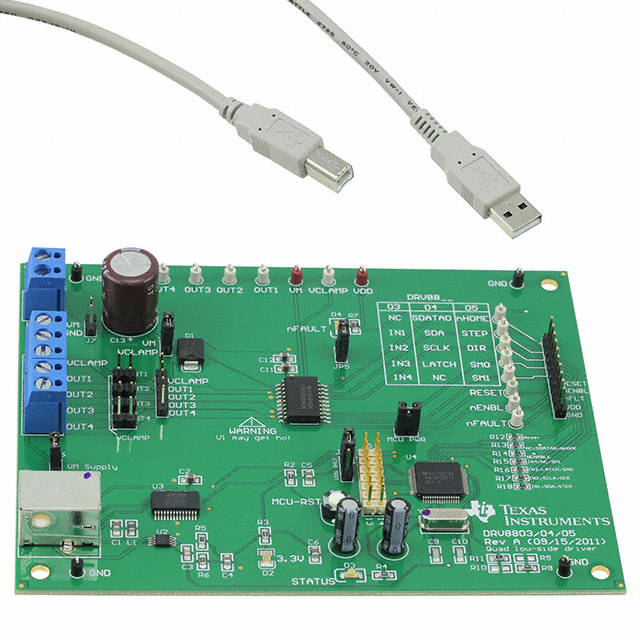

 Texas Instruments | Board(s) | 4 Channel Low-Side Driver | 16-Bit MCU | Power Management | DRV8804 | |||||||||||||||||||||
 Texas Instruments | 16-PowerTSSOP | General Purpose | Driver - Fully Integrated Control and Power Stage | 60 V | 8.2 V | 1 A | Brushed DC | 8.2 V | 60 V | Low Side (4) | SPI | Unipolar | Surface Mount | 150 °C | -40 °C | 16-HTSSOP | Power MOSFET | 0.173 in 4.4 mm Width |
