M2T18TX Series

Catalog

SWITCH ROCKER SPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Circuit	Actuator Marking	Mounting Type	Actuator Type	Termination Style	Features	Voltage Rating - DC	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Color - Actuator/Cap	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches M2T18TXG30-DG	50000 Cycles	50000 Cycles	SPDT	No Marking	Right Angle Through Hole	Concave	PC Pin	Process Sealed	28 V	28 V	Mom-Off-Mom	0.4 VA	Blue	CSA UL	85 °C	-30 ░C
NKK Switches M2T18TXG13-GA	50000 Cycles	50000 Cycles	SPDT	No Marking	Through Hole	Paddle	PC Pin	Process Sealed	28 V	28 V	Mom-Off-Mom	0.4 VA	Black	CSA UL	85 °C	-30 ░C
NKK Switches M2T18TXW13-DA	50000 Cycles	25000 Steps	SPDT	No Marking	Through Hole	Concave	PC Pin	Process Sealed	30 V	125 V	Mom-Off-Mom	3 A 6 A	Black	CSA UL	85 °C	-30 ░C
NKK Switches M2T18TXG41-GH	50000 Cycles	50000 Cycles	SPDT	No Marking	Right Angle Through Hole Vertical	Paddle	PC Pin	Process Sealed	28 V	28 V	Mom-Off-Mom	0.4 VA		CSA UL	85 °C	-30 ░C
NKK Switches M2T18TXG13-EC	50000 Cycles	50000 Cycles	SPDT	No Marking	Through Hole	Paddle	PC Pin	Process Sealed	28 V	28 V	Mom-Off-Mom	0.4 VA	Red	CSA UL	85 °C	-30 ░C
NKK Switches M2T18TXG30	50000 Cycles	50000 Cycles	SPDT	Varies by Cap	Right Angle Through Hole	Actuator Arm Cap Required	PC Pin	Process Sealed	28 V	28 V	Mom-Off-Mom	0.4 VA		CSA UL	85 °C	-30 ░C

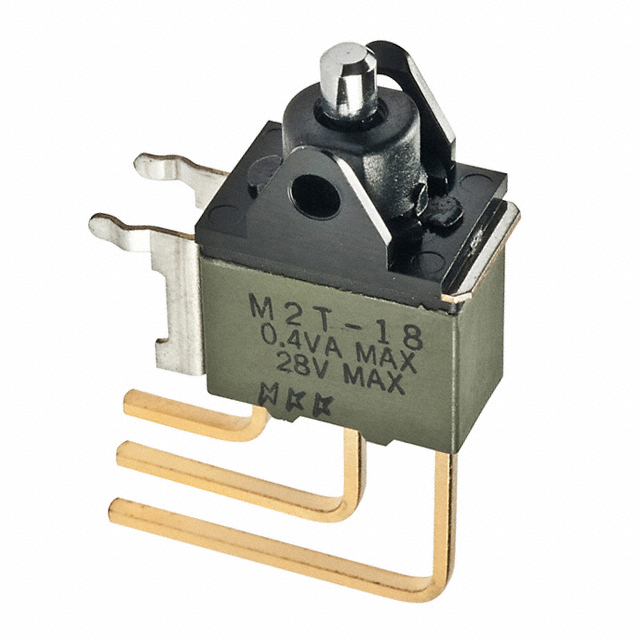

NKK Switches M2T18TXG41	50000 Cycles	50000 Cycles	SPDT	Varies by Cap	Right Angle Through Hole Vertical	Actuator Arm Cap Required	PC Pin	Process Sealed	28 V	28 V	Mom-Off-Mom	0.4 VA		CSA UL	85 °C	-30 ░C
