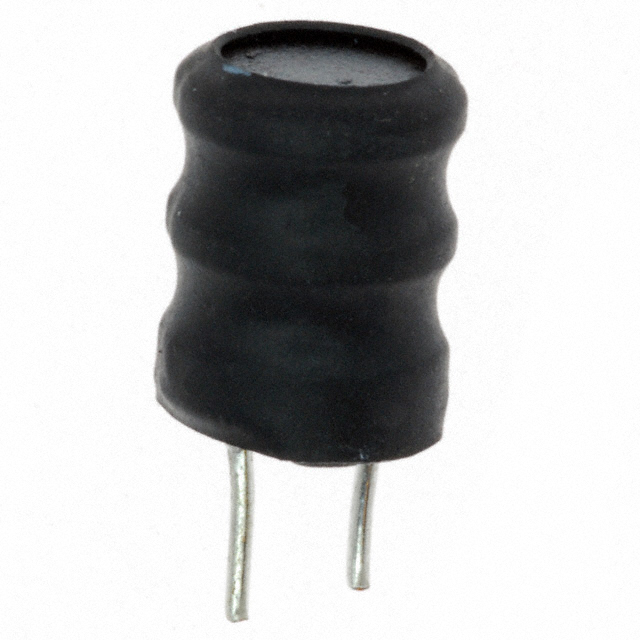

RL187 Series

Catalog

FIXED IND 150UH 200MA 2 OHM TH

Part	Operating Temperature [Min]	Operating Temperature [Max]	Q @ Freq	Package / Case	Inductance	Size / Dimension [diameter]	Size / Dimension [diameter]	Current Rating (Amps)	Tolerance	Shielding	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Type	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency - Self Resonant	Mounting Type	DC Resistance (DCR)
Bourns Inc. RL187-151J-RC	-55 C	105 ░C	80 796 kHz	Radial Vertical Cylinder	150 µH	0.315 in	8 mm	0.2 A	5 %	Unshielded	0.796 MHz	2 Ohm	Drum Core Wirewound	Ferrite	0.441 in	11.2 mm	3.8 MHz	Through Hole
Bourns Inc. RL187-102J-RC	-55 C	105 ░C	90	Radial Vertical Cylinder	1 mH	0.315 in	8 mm	150 mA	5 %	Unshielded	252 kHz	6 Ohm	Drum Core Wirewound	Ferrite	0.441 in	11.2 mm	1.3 MHz	Through Hole
Bourns Inc. RL187-153J-RC	-55 C	105 ░C	79.6 kHz 100	Radial Vertical Cylinder	15 mH	0.315 in	8 mm	40 mA	5 %	Unshielded	79.6 kHz		Drum Core Wirewound	Ferrite	0.441 in	11.2 mm	400 kHz	Through Hole	60 Ohm
Bourns Inc. RL187-122J-RC	-55 C	105 ░C	90	Radial Vertical Cylinder	1200 µH	0.315 in	8 mm	150 mA	5 %	Unshielded	252 kHz	9 Ohm	Drum Core Wirewound	Ferrite	0.441 in	11.2 mm	1.2 MHz	Through Hole
Bourns Inc. RL187-333J-RC	-55 C	105 ░C	79.6 kHz 100	Radial Vertical Cylinder	33 mH	0.315 in	8 mm	30 mA	5 %	Unshielded	79.6 kHz	80 Ohm	Drum Core Wirewound	Ferrite	0.441 in	11.2 mm	300 kHz	Through Hole
Bourns Inc. RL187-183J-RC	-55 C	105 ░C	79.6 kHz 100	Radial Vertical Cylinder	18 mH	0.315 in	8 mm	30 mA	5 %	Unshielded	79.6 kHz		Drum Core Wirewound	Ferrite	0.441 in	11.2 mm	300 kHz	Through Hole	60 Ohm
Bourns Inc. RL187-471J-RC	-55 C	105 ░C	80 796 kHz	Radial Vertical Cylinder	470 µH	0.315 in	8 mm	0.2 A	5 %	Unshielded	0.796 MHz	4 Ohm	Drum Core Wirewound	Ferrite	0.441 in	11.2 mm	1.9 MHz	Through Hole
Bourns Inc. RL187-561J-RC	-55 C	105 ░C	80 796 kHz	Radial Vertical Cylinder	560 µH	0.315 in	8 mm	0.2 A	5 %	Unshielded	0.796 MHz	4 Ohm	Drum Core Wirewound	Ferrite	0.441 in	11.2 mm	1.7 MHz	Through Hole
Bourns Inc. RL187-103J-RC	-55 C	105 ░C	79.6 kHz 100	Radial Vertical Cylinder	10 mH	0.315 in	8 mm	40 mA	5 %	Unshielded	79.6 kHz	40 Ohm	Drum Core Wirewound	Ferrite	0.441 in	11.2 mm	400 kHz	Through Hole
Bourns Inc. RL187-152J-RC	-55 C	105 ░C	90	Radial Vertical Cylinder	1.5 mH	0.315 in	8 mm	150 mA	5 %	Unshielded	252 kHz	9 Ohm	Drum Core Wirewound	Ferrite	0.441 in	11.2 mm	1.1 MHz	Through Hole
