TPS61500 Series

High brightness LED driver with integrated 3-A, 40-V power switch

Catalog

High brightness LED driver with integrated 3-A, 40-V power switch

Part	Dimming	Type	Frequency [Min]	Frequency [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Internal Switch(s)	Number of Outputs	Mounting Type	Topology	Voltage - Supply (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Applications	Current - Output / Channel	Supplier Device Package	Voltage - Supply (Min) [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Utilized IC / Part	Supplied Contents	Outputs and Type	Outputs and Type
Texas Instruments TPS61500PWPR	Analog PWM	DC DC Regulator	200 kHz	2.2 MHz	85 °C	-40 °C		1	Surface Mount	Step-Up (Boost)	18 V	38 V	2.9 V	Backlight	3 A	14-HTSSOP	2.9 V	14-PowerTSSOP	4.4 mm	0.173 in

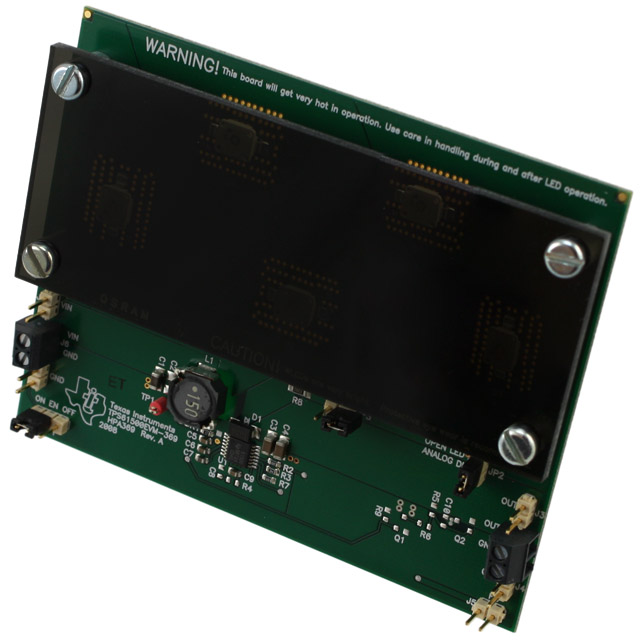

Texas Instruments TPS61500EVM-369															500 mA						15 V	2.9 V	12.5 V 15.5 V	TPS61500	Board(s)	Non-Isolated	1

Catalog

High brightness LED driver with integrated 3-A, 40-V power switch

Key Features

• 2.9-V to 18-V Input Voltage Range3-A, 40-V Internal Power SwitchFour 3-W LEDs From 5-V InputEight 3-W LEDs From 12-V InputHigh-Efficiency Power Conversion: Up to 93%Frequency Set by External Resistor: 200 kHz to 2.2 MHzUser-Defined Soft Start Into Full LoadProgrammable Overvoltage ProtectionAnalog and Pure PWM Brightness Dimming14-Pin HTSSOP Package With PowerPAD™2.9-V to 18-V Input Voltage Range3-A, 40-V Internal Power SwitchFour 3-W LEDs From 5-V InputEight 3-W LEDs From 12-V InputHigh-Efficiency Power Conversion: Up to 93%Frequency Set by External Resistor: 200 kHz to 2.2 MHzUser-Defined Soft Start Into Full LoadProgrammable Overvoltage ProtectionAnalog and Pure PWM Brightness Dimming14-Pin HTSSOP Package With PowerPAD™

Description

The TPS61500 is a monolithic switching regulator with integrated 3-A, 40-V power switch. It is an ideal driver for high brightness 1-W or 3-W LED. The device has a wide input voltage range to support application with input voltage from multi-cell batteries or regulated 5-V or 12-V power rails. The LED current is set with an external sensor resistor R3, and the feedback voltage that is regulated to 200 mV by current mode PWM (pulse width modulation) control loop, as shown inTypical Application Circuit. The device supports analog and pure PWM dimming methods for LED brightness control. Connecting a capacitor to the DIMC pin configures the device to be used for analog dimming, and the LED current varies proportional to the duty cycle of an external PWM signal. Floating the DIMC pin configures the device for pure PWM dimming with the average LED current being the PWM signal’s duty cycle times a set LED current. The device features a programmable soft-start function to limit inrush current during start-up, and it has other built-in protection features, such as pulse-by-pulse overcurrent limit, overvoltage protection, and thermal shutdown. The TPS61500 is available in 14-pin HTSSOP package with PowerPAD. The TPS61500 is a monolithic switching regulator with integrated 3-A, 40-V power switch. It is an ideal driver for high brightness 1-W or 3-W LED. The device has a wide input voltage range to support application with input voltage from multi-cell batteries or regulated 5-V or 12-V power rails. The LED current is set with an external sensor resistor R3, and the feedback voltage that is regulated to 200 mV by current mode PWM (pulse width modulation) control loop, as shown inTypical Application Circuit. The device supports analog and pure PWM dimming methods for LED brightness control. Connecting a capacitor to the DIMC pin configures the device to be used for analog dimming, and the LED current varies proportional to the duty cycle of an external PWM signal. Floating the DIMC pin configures the device for pure PWM dimming with the average LED current being the PWM signal’s duty cycle times a set LED current. The device features a programmable soft-start function to limit inrush current during start-up, and it has other built-in protection features, such as pulse-by-pulse overcurrent limit, overvoltage protection, and thermal shutdown. The TPS61500 is available in 14-pin HTSSOP package with PowerPAD.
