A3DT Series

Manufacturer: Omron Automation and Safety

Catalog

CONFIG SW BODY PUSHBUTTON ILLUM

Part	Panel Cutout Dimensions	Illumination	Actuator Type	Requires	(Select First, Then Apply Filters) Compatible Series	Circuit	Termination Style	Contact Rating @ Voltage	Accessory Type	For Use With/Related Products	Electrical Life	Mechanical Life	Mounting Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Actuator Marking	Ingress Protection	Type	Switch Function	Illumination Voltage (Nominal)

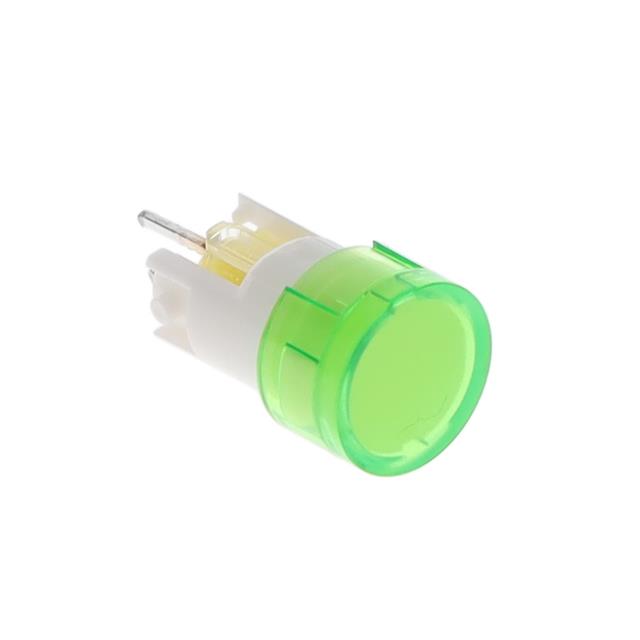

Omron Automation and Safety A3DT-500GY	8 mm	Illuminated - Green	Pushbutton Round	Contact Block(s)	A3D Omron

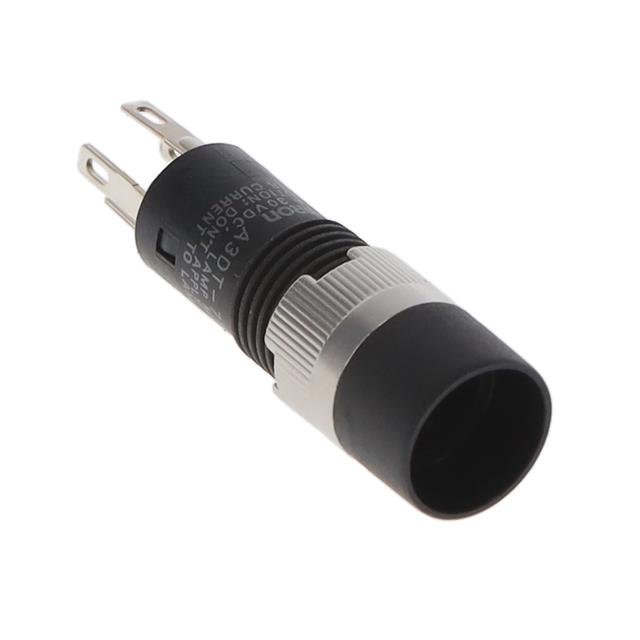

Omron Automation and Safety A3DT-7111				Switch Body	A3D Omron	SPST-NO	Solder Lug	0.1 A 30 VDC
Omron Automation and Safety A3DT-5201									Legend Plate	A3D Series
Omron Automation and Safety A3DT-90A1-00EG			Button Round			SPST-NO	Solder Lug				100000 Cycles	1000000 Cycles	Panel Mount Front	Green	55 °C	-10 °C	30 V	Green LED	8 mm	100 mA	No Marking	IP40	Illuminated Standard	Off-Mom	2.1 VDC
Omron Automation and Safety A3DT-500W	8 mm	Illuminated - White	Pushbutton Round	Contact Block(s)	A3D Omron

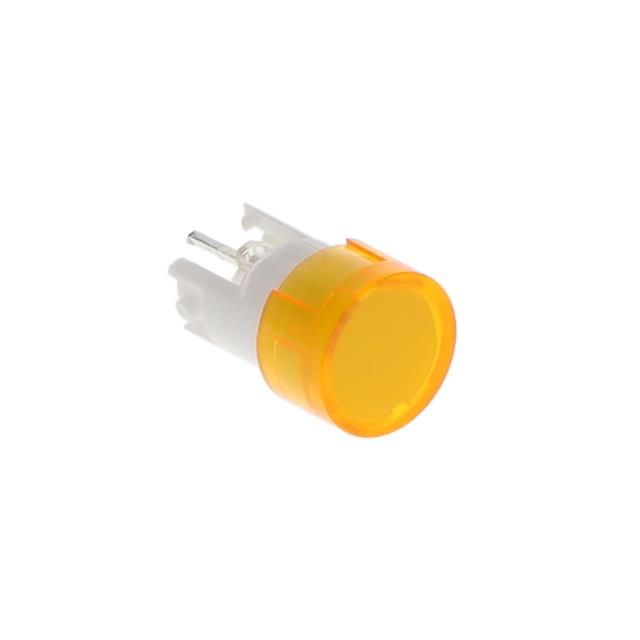

Omron Automation and Safety A3DT-500Y	8 mm	Illuminated - Yellow	Pushbutton Round	Contact Block(s)	A3D Omron

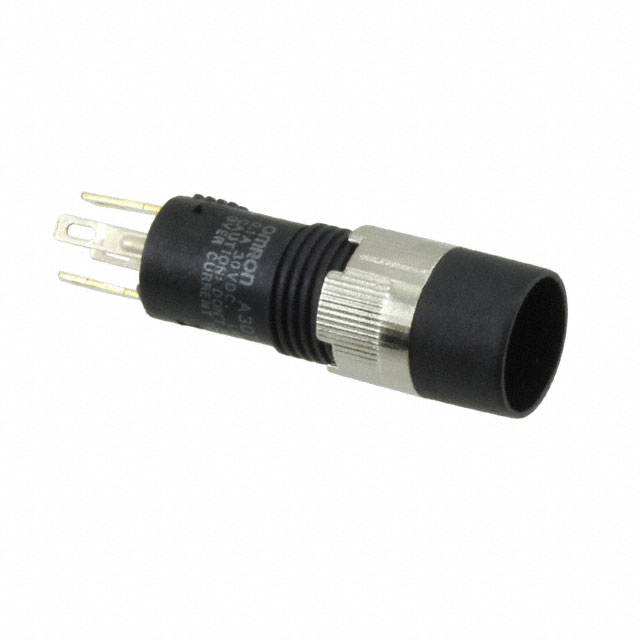

Omron Automation and Safety A3DT-7121				Switch Body	A3D Omron	SPST-NO	Solder Lug	0.1 A 30 VDC
Omron Automation and Safety A3DT-7122				Switch Body	A3D Omron	SPST-NO	PC Pin	0.1 A 30 VDC

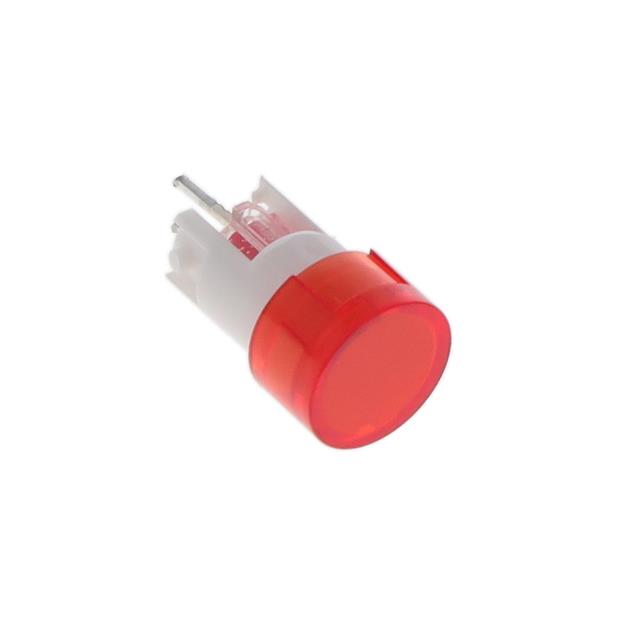

Omron Automation and Safety A3DT-500R	8 mm	Illuminated - Red	Pushbutton Round	Contact Block(s)	A3D Omron

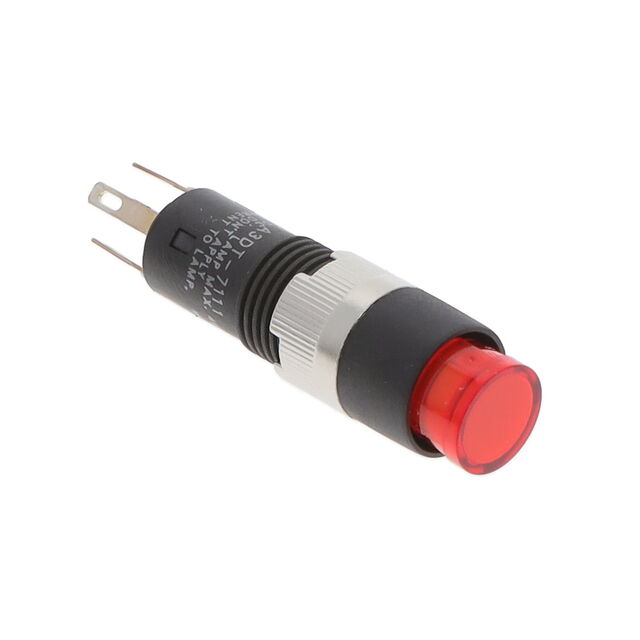

Omron Automation and Safety A3DT-90A1-00ER			Button Round			SPST-NO	Solder Lug				100000 Cycles	1000000 Cycles	Panel Mount Front	Red	55 °C	-10 °C	30 V	LED Red	8 mm	100 mA	No Marking	IP40	Illuminated Standard	Off-Mom	1.7 VDC
