M80-852 Series

Catalog

BOARD-TO-BOARD CONNECTOR, VERTICAL, DATAMATE L-TEK M80 SERIES, THROUGH HOLE, PLUG, 5, 2 MM ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mated Stacking Heights	Current Rating (Amps)	Contact Type	Mounting Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shrouding	Contact Shape	Termination	Insulation Color	Contact Material	Contact Finish - Mating	Voltage Rating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Fastening Type	Number of Rows	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Style	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Connector Type	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish - Post

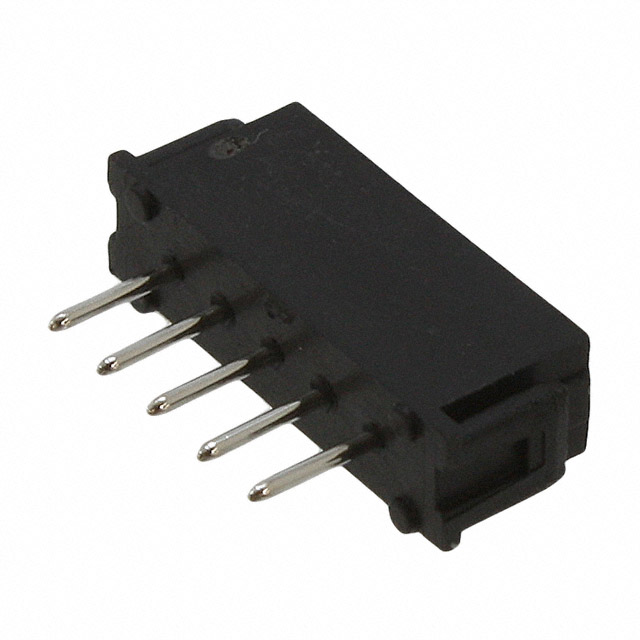

Harwin Inc. M80-8520542	118.1 µin	3 µm	7.23 mm 10.2 mm 13.46 mm	2.2 A	Male Pin	Through Hole	29.5 µin	0.75 µm	Shrouded - 4 Wall	Circular	Solder	Black	Phosphor Bronze	Gold	800 V	0.118 in	3 mm	UL94 V-0	Latch Holder	1	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	125 °C	Board to Board Cable	0.219 in	5.56 mm	All	Header	5	0.079 "	2 mm	Tin
Harwin Inc. M80-8520342	118.1 µin	3 µm	7.23 mm 10.2 mm 13.46 mm	2.2 A	Male Pin	Through Hole	29.5 µin	0.75 µm	Shrouded - 4 Wall	Circular	Solder	Black	Phosphor Bronze	Gold	800 V	0.118 in	3 mm	UL94 V-0	Latch Holder	1	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	125 °C	Board to Board Cable	0.219 in	5.56 mm	All	Header		0.079 "	2 mm	Tin
Harwin Inc. M80-8520442	118.1 µin	3 µm	7.23 mm 10.2 mm 13.46 mm	2.2 A	Male Pin	Through Hole	29.5 µin	0.75 µm	Shrouded - 4 Wall	Circular	Solder	Black	Phosphor Bronze	Gold	800 V	0.118 in	3 mm	UL94 V-0	Latch Holder	1	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	125 °C	Board to Board Cable	0.219 in	5.56 mm	All	Header	4	0.079 "	2 mm	Tin
Harwin Inc. M80-8520642	118.1 µin	3 µm	7.23 mm 10.2 mm 13.46 mm	2.2 A	Male Pin	Through Hole	29.5 µin	0.75 µm	Shrouded - 4 Wall	Circular	Solder	Black	Phosphor Bronze	Gold	800 V	0.118 in	3 mm	UL94 V-0	Latch Holder	1	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	125 °C	Board to Board Cable	0.219 in	5.56 mm	All	Header	6	0.079 "	2 mm	Tin
Harwin Inc. M80-8520445			7.23 mm 10.2 mm 13.46 mm	2.2 A	Male Pin	Through Hole	29.5 µin	0.75 µm	Shrouded - 4 Wall	Circular	Solder	Black	Phosphor Bronze	Gold	800 V	0.118 in	3 mm	UL94 V-0	Latch Holder	1	Polyphenylene Sulfide (PPS) Glass Filled	-55 C	125 °C	Board to Board Cable	0.219 in	5.56 mm	All	Header	4	0.079 "	2 mm
