FPC050 Series
Manufacturer: Chip Quik Inc.
Beta
⌘K
FPC/FFC SMT CONNECTOR 0.5 MM PIT
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Board Thickness | Board Thickness | Board Thickness | Proto Board Type | Package Accepted | Material | Number of Positions | Pitch | Pitch | Thickness | Thickness | Outer Dimension | Outer Dimension | Thermal Center Pad [y] | Thermal Center Pad [x] | Thermal Center Pad [y] | Thermal Center Pad [x] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

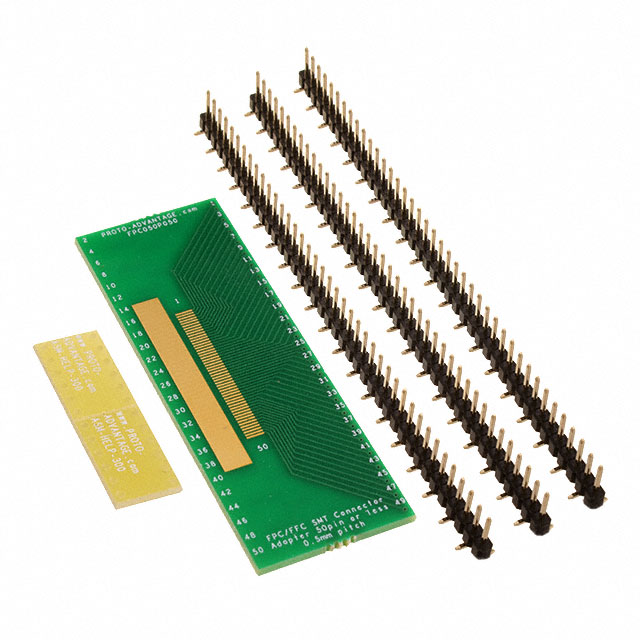

 Chip Quik Inc. | 22.86 mm | 64.77 mm | 2.55 " | 0.9 in | 1.57 mm | 0.062 " | 0.0625 in | SMD to DIP | FPC Connector | FR4 Epoxy Glass | 50 | 0.02 " | 0.5 mm | |||||||||

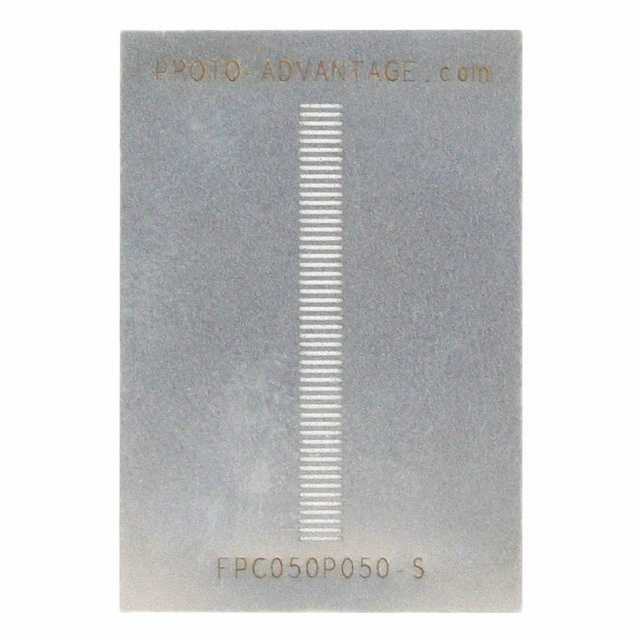

 Chip Quik Inc. | Stainless Steel | 50 | 0.02 " | 0.5 mm | 0.102 mm | 0.004 in | 22.86 mm 33.02 mm | 0.9 in 1.3 in | 0.157 in | 1.291 " | 4 mm | 32.8 mm | FPC/FFC |
