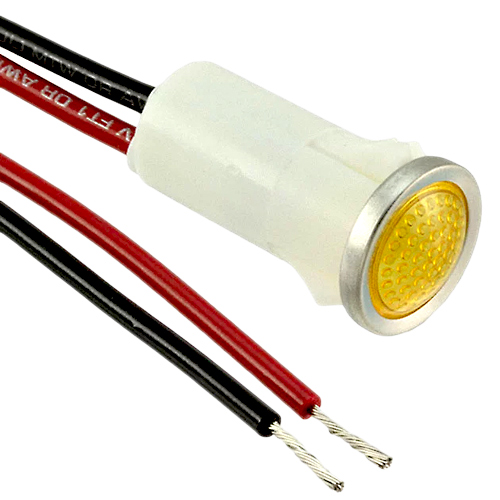

1092D Series

Catalog

PMI RND .5" LED CLR SEMIDOME 12V

Part	Lens Size	Lens Size	Ratings	Voltage	Lamp Color	Lens Transparency	Wavelength - Peak	Current	Type	Panel Cutout Shape	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Millicandela Rating	Lens Style	Lens Color

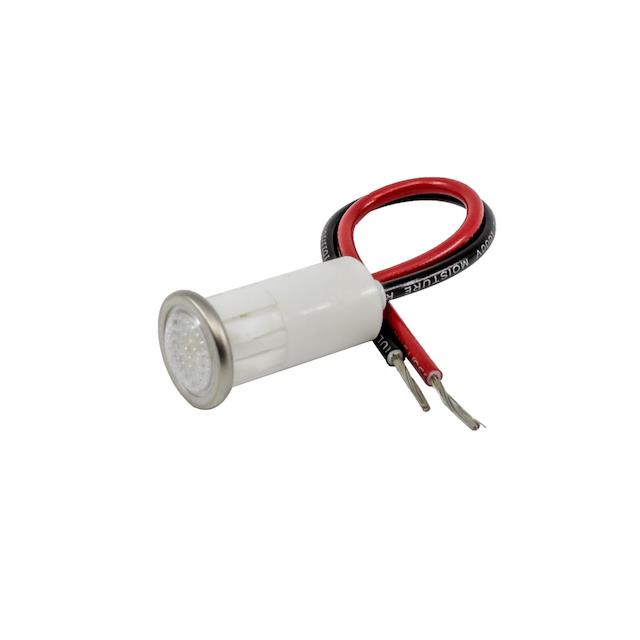

Visual Communications Company - VCC 1092D2-12V	5 mm	T-1 3/4	AC/DC	12 V	Clear	Clear	468 nm	25 mA	LED	Round	121.92 mm	Wire Leads	4.8 in	0.5 in	12.7 mm	7000 mcd	Round with Convex Top	Colorless
Visual Communications Company - VCC 1092D2-28V	5 mm	T-1 3/4	AC/DC	28 V	Clear	Clear	468 nm	25 mA	LED	Round	121.92 mm	Wire Leads	4.8 in	0.5 in	12.7 mm	7000 mcd	Round with Convex Top	Colorless
Visual Communications Company - VCC 1092D2-125VAC	5 mm	T-1 3/4	AC	125 V	Clear	Clear	468 nm	25 mA	LED	Round	121.92 mm	Wire Leads	4.8 in	0.5 in	12.7 mm	7000 mcd	Round with Convex Top	Colorless

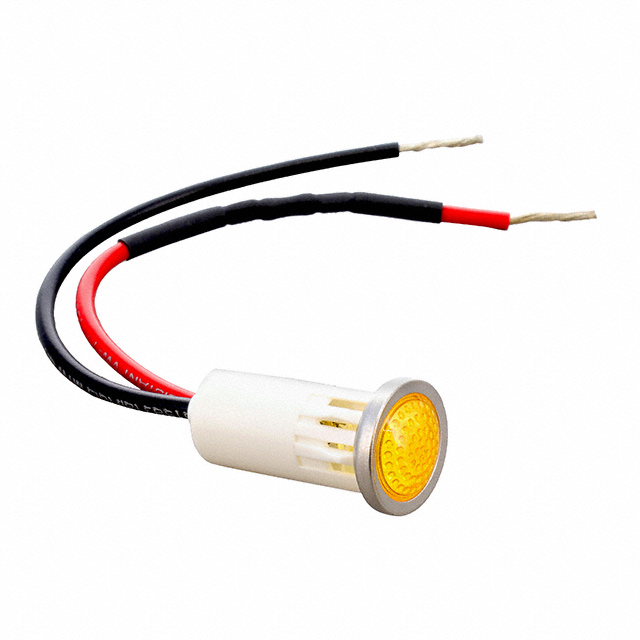

Visual Communications Company - VCC 1092D3-250VAC			AC	250 VDC	Amber	Clear		25 mA	LED	Round		Wire Leads - 4.6" (116.84mm)		0.5 in	12.7 mm	13000 mcd	Round with Domed Top	Amber

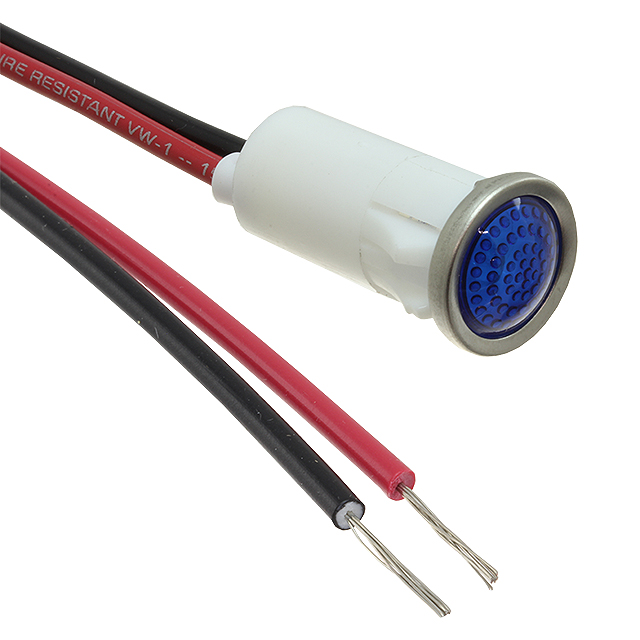

Visual Communications Company - VCC 1092D6-28V			DC	28 V	Blue	Clear		25 mA	LED	Round		Wire Leads - 4.6" (116.84mm)		0.5 in	12.7 mm	3200 mcd	Round with Domed Top	Blue
Visual Communications Company - VCC 1092D3-125VAC			AC	125 V	Amber	Diffused		25 mA	LED	Round		Wire Leads - 4.6" (116.84mm)		0.5 in	12.7 mm	13000 mcd	Round with Domed Top	Amber

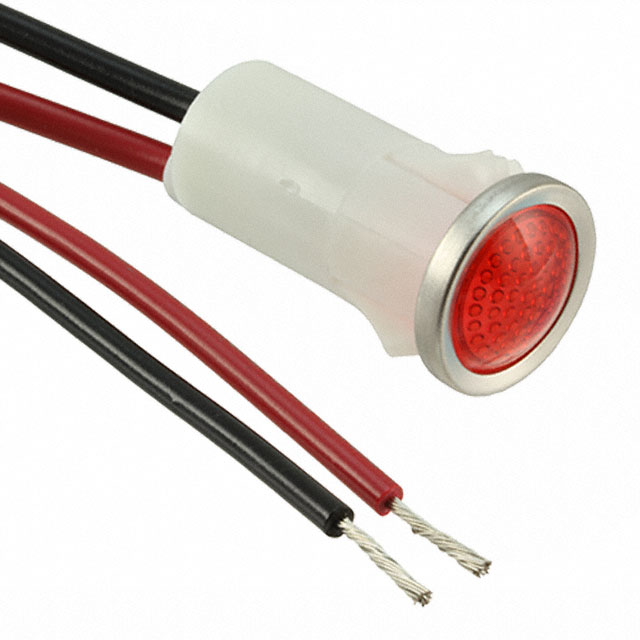

Visual Communications Company - VCC 1092D1-12V			DC	12 V	Red	Diffused		25 mA	LED	Round		Wire Leads - 4.6" (116.84mm)		0.5 in	12.7 mm	13000 mcd	Round with Domed Top	Red
