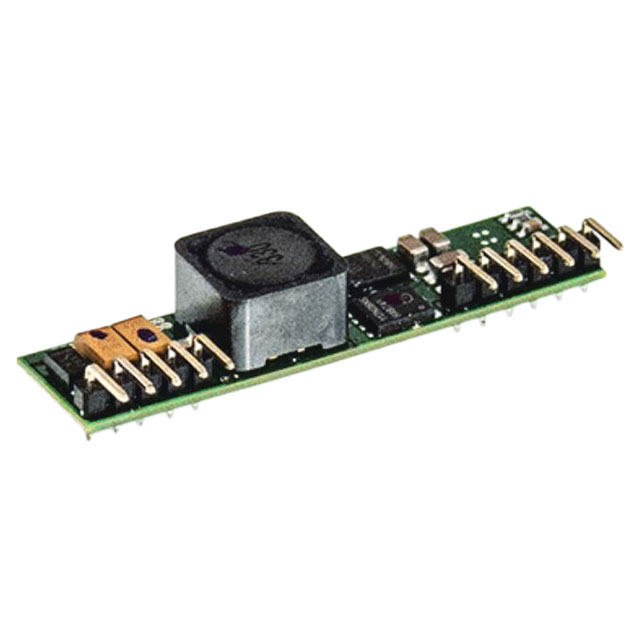

NID35 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 15V 36W
| Part | Efficiency | Power (Watts) | Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Number of Outputs | Type | Mounting Type | Applications | Voltage - Output 1 | Package / Case | Voltage - Input (Max) [Max] | Approval Agency | Features | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 96 % | 36 W | 20 V | 13 mm | 50.8 mm | 0.43 in | 11 mm | 2 in | 0.51 in | 1 | Non-Isolated PoL Module | Through Hole | ITE (Commercial) | 15 V | 11-SIP Module | 53 V | CE EAC | OCP OVP Remote On/Off SCP | 2.4 A | 85 °C | -30 °C |
 MEAN WELL USA Inc. | 93 % | 18 W | 10.5 V | 13 mm | 50.8 mm | 0.43 in | 11 mm | 2 in | 0.51 in | 1 | Non-Isolated PoL Module | Through Hole | ITE (Commercial) | 5 V | 11-SIP Module | 53 V | CE EAC | Remote On/Off | 3.5 A | 85 °C | -30 °C |
 MEAN WELL USA Inc. |
