PPPC292 Series

Catalog

CONN HDR 58POS 0.1 GOLD PCB R/A

Part	Contact Material	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Number of Positions Loaded	Number of Rows [custom]	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Mating	Fastening Type	Voltage Rating	Mounting Type	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Termination	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Height
Sullins Connector Solutions PPPC292LJBN-RC	Phosphor Bronze	Flash	Polyester	Square	All	2	Female Socket	0.1 in	2.54 mm	Flash	0.2 in	5.08 mm	Black	-40 C	105 ░C	3 A	UL94 V-0	Gold	Push-Pull	250 V	Right Angle Through Hole	58	0.124 in	3.15 mm	Gold	Solder	0.1 "	2.54 mm	Header

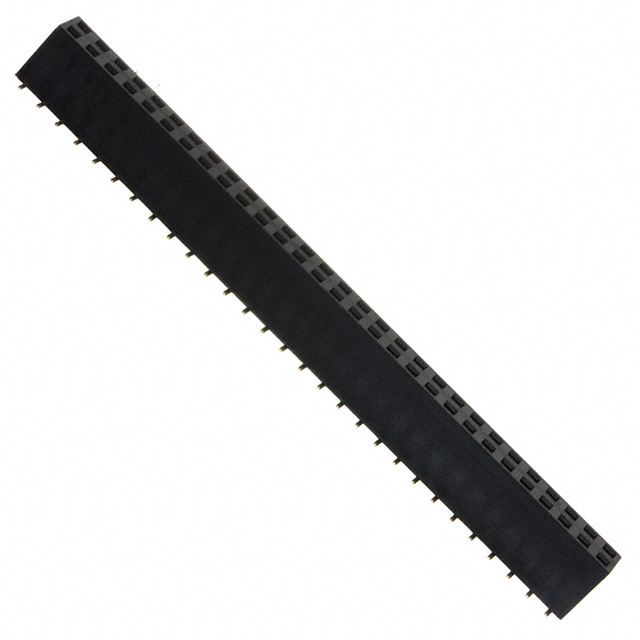

Sullins Connector Solutions PPPC292KFMS	Phosphor Bronze	Flash	Polyester	Square	All	2	Female Socket	0.1 in	2.54 mm	Flash	0.299 "		Black	-40 C	125 °C	3 A	UL94 V-0	Gold	Push-Pull	250 V	Surface Mount	58			Gold	Solder	0.1 "	2.54 mm	Header	7.6 mm
