1757826 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
CONN D-SUB HD HOUSING RCPT 44POS
| Part | Connector Type | Flange Feature | Note | Mounting Type | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Number of Rows | Connector Style | Number of Positions | Shell Finish Thickness | Shell Finish Thickness | Shell Material, Finish | Contact Type | Termination | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Contact Material | Shell Size, Connector Layout | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

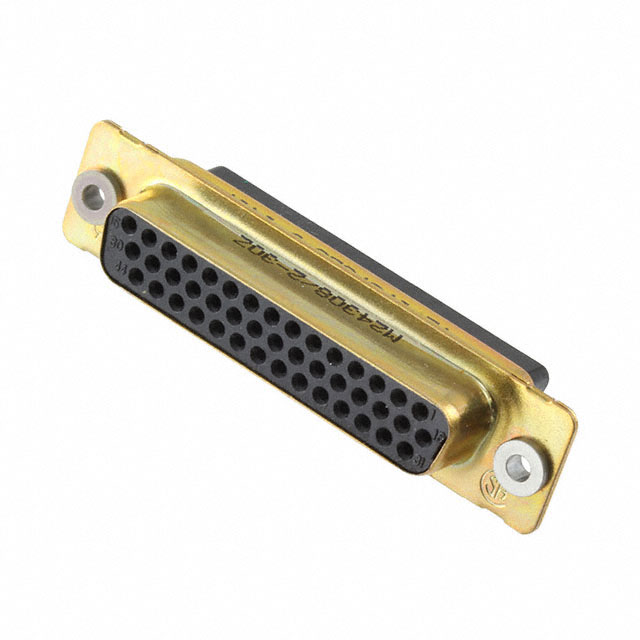

 TE Connectivity Aerospace, Defense and Marine | Receptacle for Female Contacts | Housing/Shell (Unthreaded) | Contacts Not Included | Free Hanging (In-Line) | 3 | B DB | 3 | D-Sub High Density | 44 | 5.08 µm | 200 µin | Steel Yellow Chromate Plated Zinc | Signal | ||||||||||

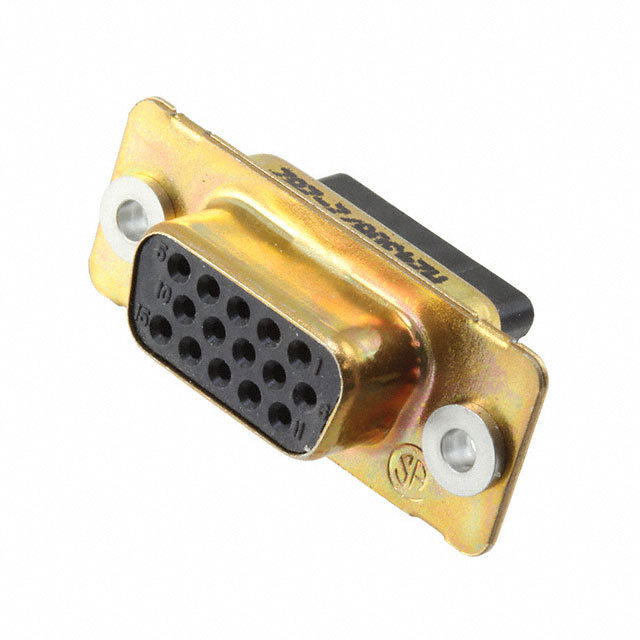

TE Connectivity Aerospace, Defense and Marine | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | DE E | 3 | D-Sub High Density | 15 | Steel Yellow Chromate Plated Zinc | Signal | Crimp | Gold | -55 °C | 125 °C | 1 | High Density | 7.5 A | Copper Alloy | ||||||

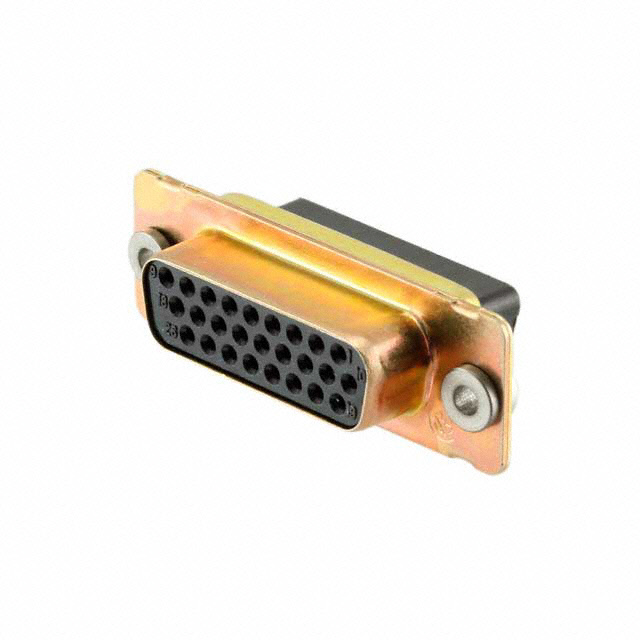

 TE Connectivity Aerospace, Defense and Marine | Receptacle for Female Contacts | Housing/Shell (Unthreaded) | Contacts Not Included | Free Hanging (In-Line) | 3 | D-Sub High Density | 26 | 5.08 µm | 200 µin | Steel Yellow Chromate Plated Zinc | Signal | 2 | (DA A) High Density | ||||||||||

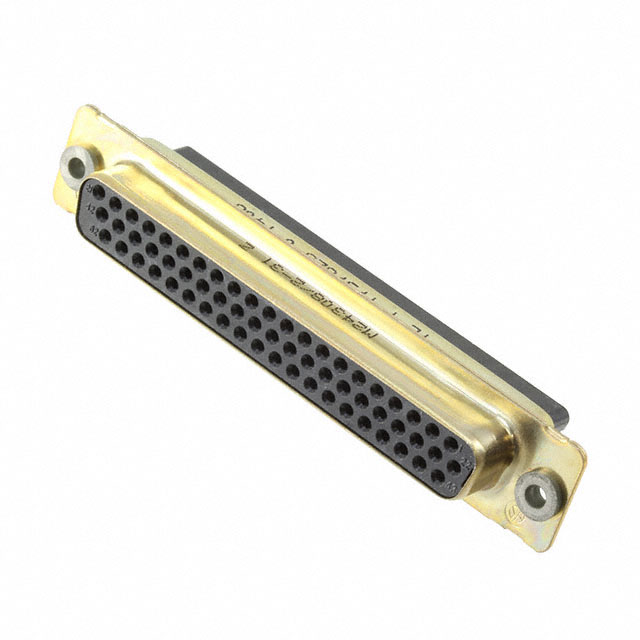

 TE Connectivity Aerospace, Defense and Marine | Receptacle for Female Contacts | Housing/Shell (Unthreaded) | Contacts Not Included | Free Hanging (In-Line) | 3 | D-Sub High Density | 62 | 5.08 µm | 200 µin | Steel Yellow Chromate Plated Zinc | Signal | 4 | |||||||||||
 TE Connectivity Aerospace, Defense and Marine | Receptacle for Female Contacts | Housing/Shell (Unthreaded) | Contacts Not Included | Free Hanging (In-Line) | DE E | 3 | D-Sub High Density | 15 | 5.08 µm | 200 µin | Steel Yellow Chromate Plated Zinc | Signal | 1 | High Density |
