FF02S55S Series
Manufacturer: JAE Electronics
Beta
⌘K

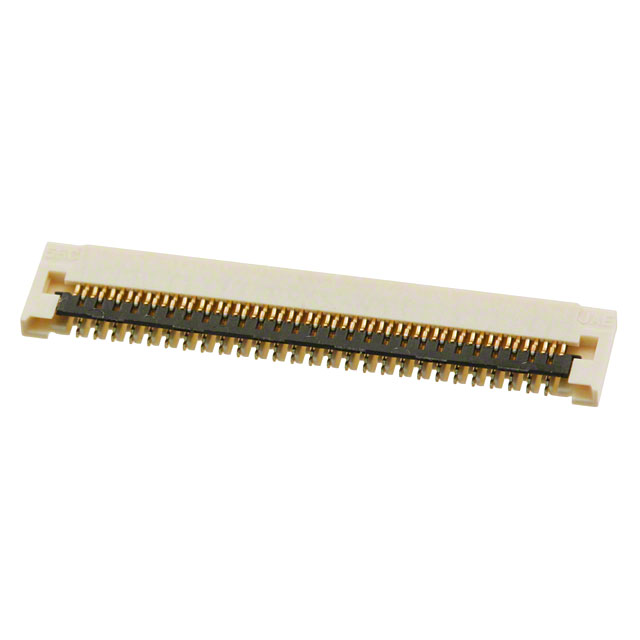

CONN FPC BOTTOM 55POS 0.3MM R/A
| Part | Housing Color | Current Rating (Amps) | Actuator Color | Cable End Type | Contact Finish | Flat Flex Type | Height Above Board [z] | Height Above Board [z] | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Connector/Contact Type | Actuator Material | FFC, FCB Thickness | Material Flammability Rating | Mounting Type | Locking Feature | Housing Material | Number of Positions | Pitch | Pitch | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | White | 0.35 A | Black | Straight | Gold | FPC | 0.88 mm | 0.035 in | Solder | 85 °C | -40 C | Copper Alloy | Contacts Bottom | Polyphenylene Sulfide (PPS) | 0.12 mm | UL94 V-0 | Right Angle Surface Mount | Flip Lock | Liquid Crystal Polymer (LCP) | 55 | 0.012 in | 0.3 mm | 50 V |
