SML-LX5026 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K

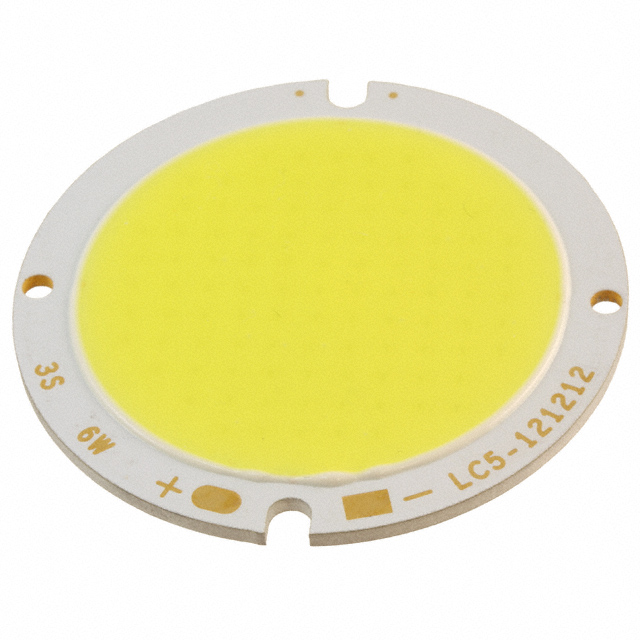

LED COB COOL WHT ROUND 6500K
| Part | Light Emitting Surface (LES) [diameter] | Current - Max [Max] | Size / Dimension [diameter] | Temperature - Test | Type | Current - Test | Color | Height [z] | Voltage - Forward (Vf) (Typ) | Configuration | CCT (K) | Lumens/Watt @ Current - Test | Viewing Angle | Lens Type | Luminous Flux @ Current/Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 40 mm | 700 mA | 50 mm | 25 °C | Chip On Board (COB) | 660 mA | Cool White | 2.8 mm | 10.2 V | Round | 6500 K | 83 lm/W | 170 ° | Flat | 560 lm |
Lumex Opto/Components Inc. | 40 mm | 700 mA | 50 mm | 25 °C | Chip On Board (COB) | 660 mA | Warm White | 2.8 mm | 10.2 V | Round | 3500 K | 95 lm/W | 170 ° | Flat | 640 lm |
