TPCC-R Series

Manufacturer: OptiFuse

Catalog

FUSE CERM 20A 600VAC 300VDC 5AG

Part	Package / Case [y]	Package / Case [x]	Package / Case	Breaking Capacity @ Rated Voltage	Mounting Type	Voltage Rating - AC	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Response Time	Current Rating (Amps)	Fuse Type	Approval Agency
OptiFuse TPCC-R-20A	38 mm	10 mm	5AG	100 kA 200 kA	Requires Holder	600 V	300 V	38.1 mm	1.5 in	10.4 mm	0.409 in	Slow Blow	20 A	Cartridge Ceramic

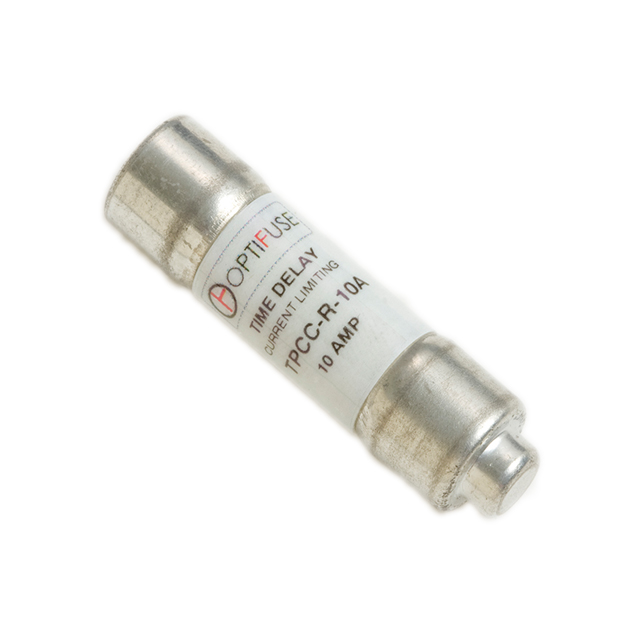

OptiFuse TPCC-R-1.125A	38 mm	10 mm	5AG	100 kA 200 kA	Requires Holder	600 V	300 V	38.1 mm	1.5 in	10.4 mm	0.409 in	Slow Blow	1.125 A	Cartridge Ceramic	CSA UL
OptiFuse TPCC-R-2A	38 mm	10 mm	5AG	100 kA 200 kA	Requires Holder	600 V	300 V	38.1 mm	1.5 in	10.4 mm	0.409 in	Slow Blow	2 A	Cartridge Ceramic

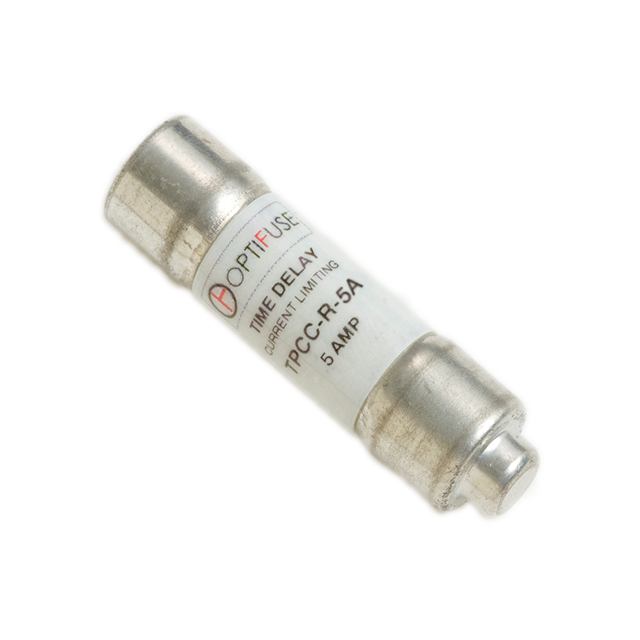

OptiFuse TPCC-R-5A	38 mm	10 mm	5AG	100 kA 200 kA	Requires Holder	600 V	300 V	38.1 mm	1.5 in	10.4 mm	0.409 in	Slow Blow	5 A	Cartridge Ceramic
OptiFuse TPCC-R-1A	38 mm	10 mm	5AG	100 kA 200 kA	Requires Holder	600 V	300 V	38.1 mm	1.5 in	10.4 mm	0.409 in	Slow Blow	1 A	Cartridge Ceramic	CSA UL
