USB4520 Series
Manufacturer: GCT
Beta
⌘K

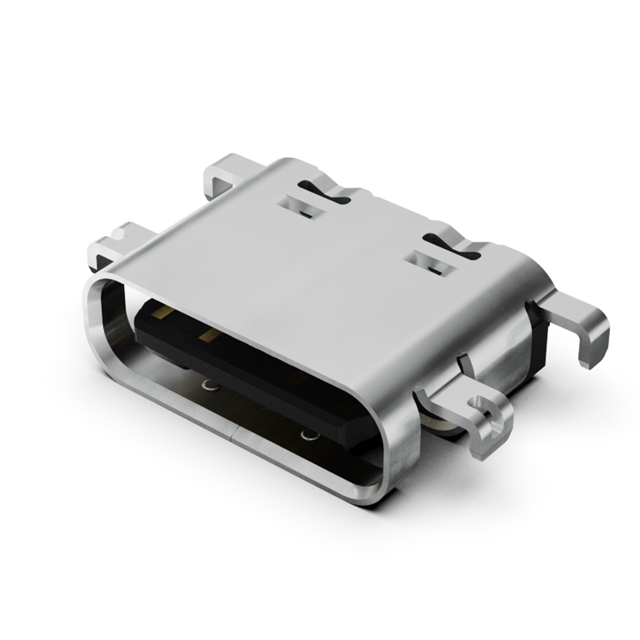

USB CONNECTORS USB C REC 16P 3U" MID MNT 2.1MM O-SET SMT L = 6.5MM
| Part | Insulation Color | Contact Finish | Material Flammability Rating | Shell/Shielding Material | Voltage - Rated | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Number of Contacts [custom] | Number of Contacts [custom] | Number of Contacts [custom] | Mating Cycles | Number of Ports | Features | Shielding | Mounting Feature | Mounting Type | Specifications | Current Rating (Amps) | Connector Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Black | Gold | UL94 V-0 | Steel (SUS304) | 48 VDC | Receptacle | 85 °C | -25 °C | 8 | 16 | 24 | 10000 | 1 | Solder Retention Tab | Shielded | Horizontal Mid Mount | Board Edge Cutout Surface Mount Through Hole Right Angle | USB 2.0 | 5 A | USB-C (USB TYPE-C) | Solder |
