LS1043 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
IC MPU QORIQ 1.6GHZ 780FCPBGA
| Part | Ethernet | SATA | Supplier Device Package | USB | Package / Case | Number of Cores/Bus Width [custom] | Number of Cores/Bus Width [custom] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Security Features | Speed | Core Processor | Additional Interfaces | Graphics Acceleration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | 10GbE (1) 1GbE (5) 1GbE (7) | SATA 6Gbps (1) | 780-FCPBGA | USB 3.0 (3) + PHY | 780-FBGA FCBGA | 64 Bit | 4 | Surface Mount | -40 °C | 105 ░C | Secure Boot TrustZone® | 1.6 GHz | ARM® Cortex®-A53 | ||

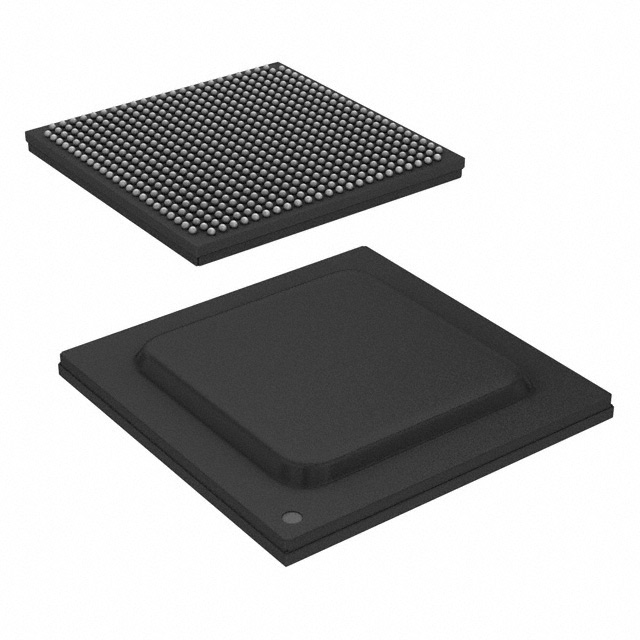

 Freescale Semiconductor - NXP | 10GbE (1) 1GbE (5) 1GbE (7) | SATA 6Gbps (1) | 621-FCPBGA (21x21) | USB 3.0 (3) + PHY | 621-FBGA FCBGA | 64 Bit | 4 | Surface Mount | 0 °C | 105 ░C | Secure Boot TrustZone® | 1.4 GHz | ARM® Cortex®-A53 | ||
Freescale Semiconductor - NXP | 10GbE (1) 1GbE (5) 1GbE (7) | SATA 6Gbps (1) | 780-FCPBGA | USB 3.0 (3) + PHY | 780-FBGA FCBGA | 64 Bit | 4 | Surface Mount | -40 °C | 105 ░C | Secure Boot TrustZone® | 1.2 GHz | ARM® Cortex®-A53 | ||
Freescale Semiconductor - NXP | 10GbE (1) 1GbE (5) 1GbE (7) | SATA 6Gbps (1) | 780-FCPBGA | USB 3.0 (3) + PHY | 780-FBGA FCBGA | 64 Bit | 4 | Surface Mount | 0 °C | 105 ░C | Secure Boot TrustZone® | 1.6 GHz | ARM® Cortex®-A53 | ||
Freescale Semiconductor - NXP | 10GbE (1) 1GbE (7) 2.5GbE (2) | SATA 6Gbps (1) | 780-FBGA (23x23) | USB 3.0 + PHY (3) | 780-BFBGA | 64 Bit | 4 | Surface Mount | -40 °C | 105 °C | ARM TZ Boot Security | 1.4 GHz | ARM® Cortex®-A53 | eMMC I2C SD SDIO SPI UART | |
Freescale Semiconductor - NXP | 10GbE (1) 1GbE (5) 1GbE (7) | SATA 6Gbps (1) | 780-FCPBGA | USB 3.0 (3) + PHY | 780-FBGA FCBGA | 64 Bit | 4 | Surface Mount | 0 °C | 105 ░C | Secure Boot TrustZone® | 1 GHz | ARM® Cortex®-A53 | ||
Freescale Semiconductor - NXP | 10GbE (1) 1GbE (5) 1GbE (7) | SATA 6Gbps (1) | 621-FCPBGA (21x21) | USB 3.0 (3) + PHY | 621-FBGA FCBGA | 64 Bit | 4 | Surface Mount | 0 °C | 105 ░C | Secure Boot TrustZone® | 1.2 GHz | ARM® Cortex®-A53 | ||
Freescale Semiconductor - NXP | 10GbE (1) 1GbE (5) 1GbE (7) | SATA 6Gbps (1) | 780-FCPBGA | USB 3.0 (3) + PHY | 780-FBGA FCBGA | 64 Bit | 4 | Surface Mount | -40 °C | 105 ░C | Secure Boot TrustZone® | 1.6 GHz | ARM® Cortex®-A53 | ||
Freescale Semiconductor - NXP | 10GbE (1) 1GbE (5) 1GbE (7) | SATA 6Gbps (1) | 780-FCPBGA | USB 3.0 (3) + PHY | 780-FBGA FCBGA | 64 Bit | 4 | Surface Mount | 0 °C | 105 ░C | Secure Boot TrustZone® | 1.2 GHz | ARM® Cortex®-A53 | ||
Freescale Semiconductor - NXP | 10GbE (1) 1GbE (5) 1GbE (7) | SATA 6Gbps (1) | 621-FCPBGA (21x21) | USB 3.0 (3) + PHY | 621-FBGA FCBGA | 64 Bit | 4 | Surface Mount | 0 °C | 105 ░C | Secure Boot TrustZone® | 1.6 GHz | ARM® Cortex®-A53 |
