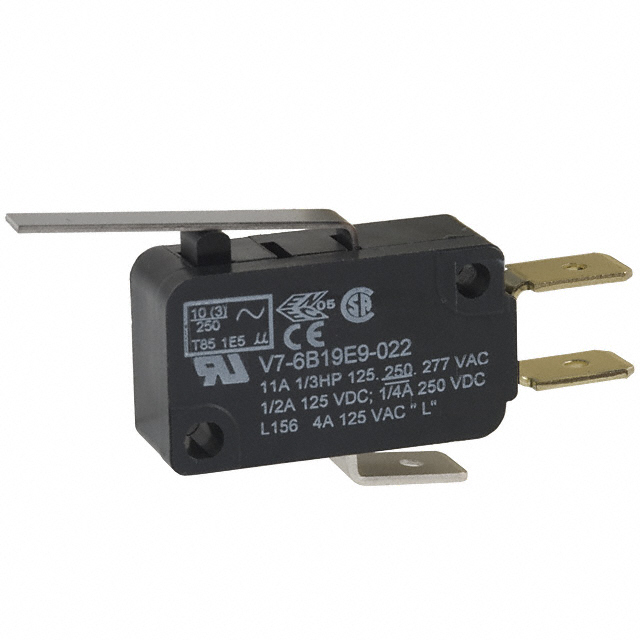

V7-6B1 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 11A 125V
| Part | Circuit | Overtravel | Overtravel | Mounting Type | Voltage Rating - DC | Differential Travel | Differential Travel | Termination Style | Switch Function | Release Force | Operating Force | Mechanical Life | Current Rating (Amps) | Operating Position | Operating Position | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Actuator Type | Pretravel | Pretravel | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | SPDT | 0.053 in | 1.35 mm | Chassis Mount | 125 VDC | 0.76 mm | 0.03 in | Quick Connect - 0.250" (6.3mm) | On-Mom | 38 gf | 215 gf | 10000000 Cycles | 11 A 500 mA | 0.6 in | 15.2 mm | 85 °C | -40 C | 100000 Cycles | Lever Straight | 3.25 mm | 0.128 in | 125 V |
