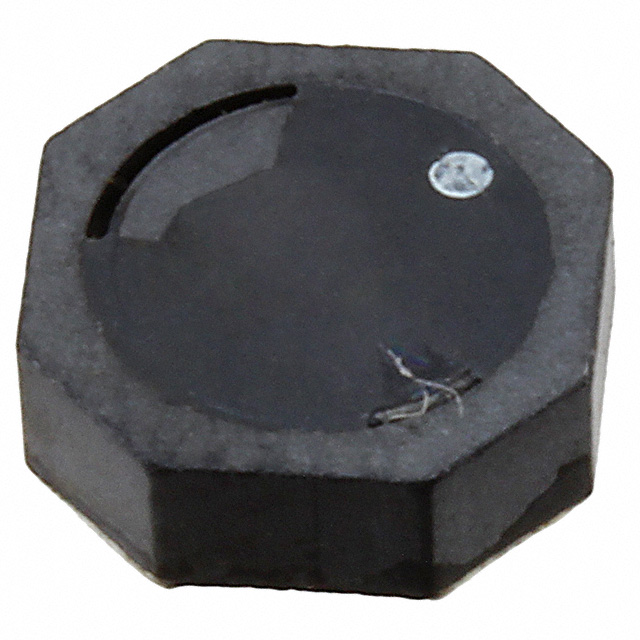

SRU6025 Series
Manufacturer: Bourns Inc.
Beta
⌘K
INDUCTOR POWER SHIELDED WIREWOUND 220UH 30% 100KHZ 20Q-FACTOR FERRITE 0.42A 1.25OHM DCR T/R
| Part | Current - Saturation (Isat) | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Material - Core | Q @ Freq | Inductance | Current Rating (Amps) | Type | DC Resistance (DCR) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Inductance Frequency - Test | Shielding | Frequency - Self Resonant | Tolerance | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 240 mA | Nonstandard | 125 °C | -40 C | Surface Mount | Ferrite | 2.52 MHz 20 | 220 µH | 0.42 A | Drum Core Wirewound | 1.25 Ohm | 0.244 in | 0.256 in | 6.2 mm | 6.5 mm | 100 kHz | Shielded | 4 MHz | 30 % | |
 Bourns Inc. | 3.2 A | Nonstandard | 125 °C | -40 C | Surface Mount | Ferrite | 7.96 MHz 8 | 1.2 µH | 4 A | Drum Core Wirewound | 0.244 in | 0.256 in | 6.2 mm | 6.5 mm | 100 kHz | Shielded | 120 MHz | 30 % | 19 mOhm |
