72479 Series

Catalog

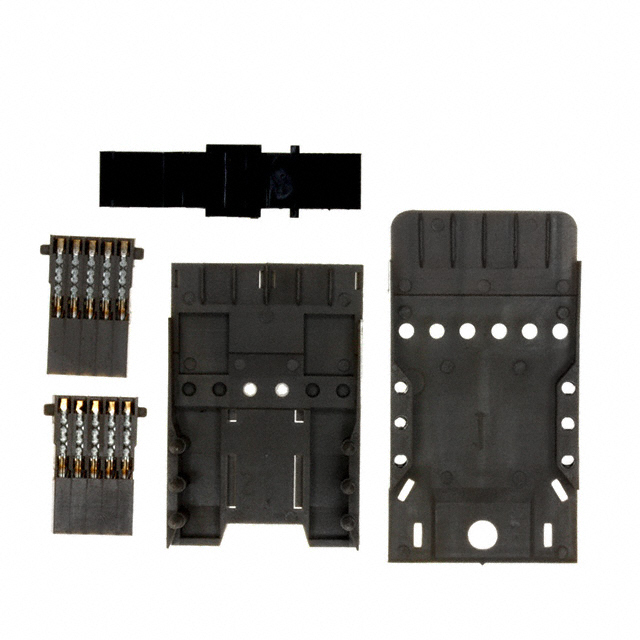

CONN RCPT 60POS FREE HANGING

Part	Features	Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Type	Number of Positions	Number of Positions Loaded	Number of Rows	Material Flammability Rating
Amphenol ICC (FCI) 72479-1221LF	Latch Fingers	Gray	Receptacle Female Sockets	105 ░C	-55 °C	1000 VDC	IDC	0.76 Ám	30 Áin	Gold	Free Hanging (In-Line)	60	All	5	UL94 V-0
Amphenol ICC (FCI) 72479-1121LF	Latch Fingers	Gray	Receptacle Female Sockets	105 ░C	-55 °C	1000 VDC	IDC	0.76 Ám	30 Áin	Gold	Free Hanging (In-Line)	60	All	5	UL94 V-0
Amphenol ICC (FCI) 72479-2211LF	Latch Fingers	Gray	Receptacle Female Sockets	105 ░C	-55 °C	1000 VDC	IDC	2 µm	78.7 µin	Gold	Free Hanging (In-Line)	60	All	5	UL94 V-0
Amphenol ICC (FCI) 72479-2121LF	Latch Fingers	Gray	Receptacle Female Sockets	105 ░C	-55 °C	1000 VDC	IDC	2 µm	78.7 µin	Gold	Free Hanging (In-Line)	60	All	5	UL94 V-0
Amphenol ICC (FCI) 72479-2111LF	Latch Fingers	Gray	Receptacle Female Sockets	105 ░C	-55 °C	1000 VDC	IDC	2 µm	78.7 µin	Gold	Free Hanging (In-Line)	60	All	5	UL94 V-0
