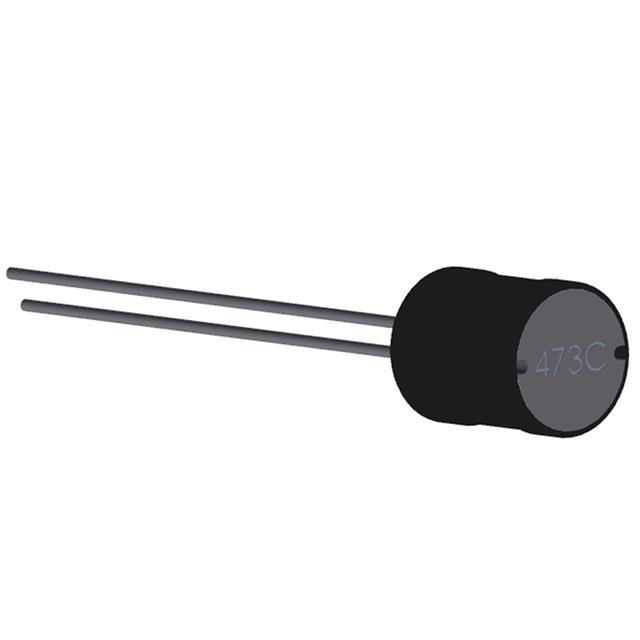

13R Series

Catalog

FIXED IND 1MH 330MA 2.1 OHM TH

Part	DC Resistance (DCR) [Max]	Tolerance	Current Rating (Amps)	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Inductance Frequency - Test	Shielding	DC Resistance (DCR)
Murata Electronics 13R105C	2.1 Ohm	10 %	0.33 A	Through Hole	0.531 in	13.5 mm	Wirewound	0.374 Dia	9.5 mm	1 mH	85 °C	-40 C	Radial Vertical Cylinder	1 kHz	Unshielded
Murata Electronics 13R473C		10 %	1.5 A	Through Hole	0.531 in	13.5 mm	Wirewound	0.374 Dia	9.5 mm	47 µH	85 °C	-40 C	Radial Vertical Cylinder	1 kHz	Unshielded	110 mOhm
Murata Electronics 13R333C	92 mOhm	10 %	1.8 A	Through Hole	0.531 in	13.5 mm	Wirewound	0.374 Dia	9.5 mm	33 µH	85 °C	-40 C	Radial Vertical Cylinder	1 kHz	Unshielded
Murata Electronics 13R335C		10 %	190 mA	Through Hole	0.531 in	13.5 mm	Wirewound	0.374 Dia	9.5 mm	3300 µH	85 °C	-40 C	Radial Vertical Cylinder	1 kHz	Unshielded
Murata Electronics 13R682C	23 mOhm	20 %	3.5 A	Through Hole	0.531 in	13.5 mm	Wirewound	0.374 Dia	9.5 mm	6.8 µH	85 °C	-40 C	Radial Vertical Cylinder	1 kHz	Unshielded
Murata Electronics 13R225C	4.5 Ohm	10 %	0.24 A	Through Hole	0.531 in	13.5 mm	Wirewound	0.374 Dia	9.5 mm	2.2 mH	85 °C	-40 C	Radial Vertical Cylinder	1 kHz	Unshielded
Murata Electronics 13R222C	10 mOhm	20 %	5.3 A	Through Hole	0.531 in	13.5 mm	Wirewound	0.374 Dia	9.5 mm	2.2 µH	85 °C	-40 C	Radial Vertical Cylinder	1 kHz	Unshielded
Murata Electronics 13R332C	13 mOhm	20 %	4.8 A	Through Hole	0.531 in	13.5 mm	Wirewound	0.374 Dia	9.5 mm	3.3 µH	85 °C	-40 C	Radial Vertical Cylinder	1 kHz	Unshielded
Murata Electronics 13R155C		10 %	0.28 A	Through Hole	0.531 in	13.5 mm	Wirewound	0.374 Dia	9.5 mm	1.5 mH	85 °C	-40 C	Radial Vertical Cylinder	1 kHz	Unshielded	3.1 Ohm
Murata Electronics 13R153C	42 mOhm	10 %	2.5 A	Through Hole	0.531 in	13.5 mm	Wirewound	0.374 Dia	9.5 mm	15 µH	85 °C	-40 C	Radial Vertical Cylinder	1 kHz	Unshielded
