6821-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

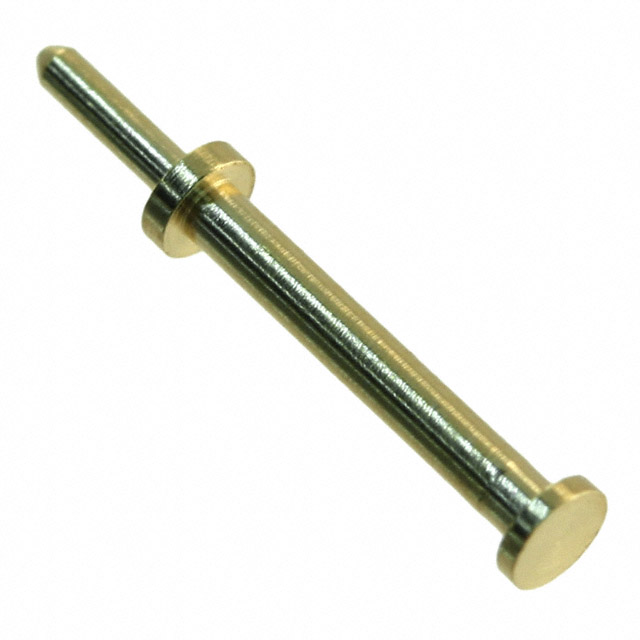

CONN PC PIN CIRC
| Part | Length - Overall [x] | Length - Overall [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Mounting Type | Length - Above Flange [custom] | Length - Above Flange [custom] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Insulation | Termination | Terminal Style | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 11.3 mm | 0.445 in | 0.04 in | 1.02 mm | 1.78 mm | 0.07 in | Brass Alloy | Free Hanging (In-Line) | 0.125 in | 3.18 mm | Tin | 200 Áin | 5.08 Ám | 7.62 mm | 0.3 " | Non-Insulated | Solder | Single End Turret | PC Pin | 0.03 in | 0.76 mm |
 Mill-Max Manufacturing Corp. | 11.3 mm | 0.445 in | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | Brass Alloy | Free Hanging (In-Line) | 0.125 in | 3.18 mm | Gold | 10 Áin | 0.25 Ám | 7.62 mm | 0.3 " | Non-Insulated | Solder | Single End Turret | PC Pin | 0.03 in | 0.76 mm |
Mill-Max Manufacturing Corp. | 11.3 mm | 0.445 in | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | Brass Alloy | Free Hanging (In-Line) | 0.125 in | 3.18 mm | Gold | 50 µin | 1.27 µm | 7.62 mm | 0.3 " | Non-Insulated | Solder | Single End Turret | PC Pin | 0.03 in | 0.76 mm |
