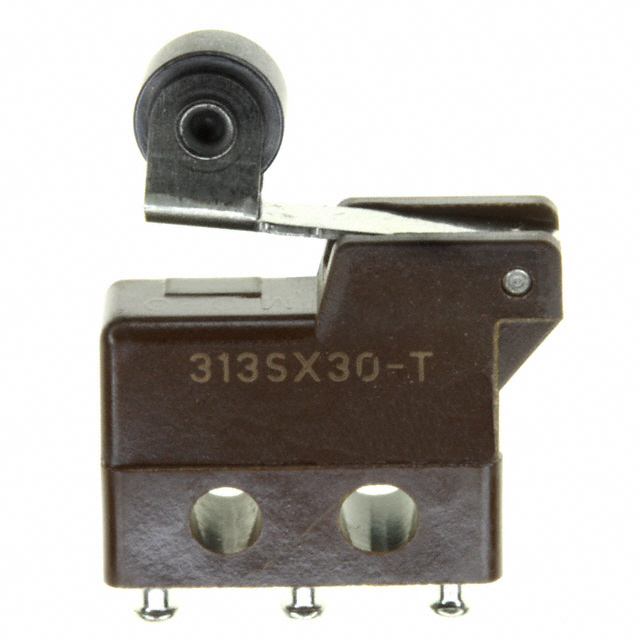

313SX30 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 1A 125V
| Part | Mounting Type | Operating Position | Operating Position | Actuator Type | Circuit | Current Rating (Amps) | Release Force | Voltage Rating - DC | Termination Style | Mechanical Life | Differential Travel | Differential Travel | Operating Force | Voltage Rating - AC | Overtravel [custom] | Overtravel [custom] | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Chassis Mount | 14.15 mm | 0.557 in | Lever Roller | SPDT | 1 A | 11 gf | 30 V | Solder Turret | 10000000 Cycles | 0.015 in | 0.38 mm | 68 gf | 125 V | 0.01 " | 0.25 mm | On-Mom | -55 C | 125 °C | 0.05 in | 1.27 mm |
