GLK240128 Series

Catalog

240X128 GRAPHIC DISPLAY

Part	Dot Size [y]	Dot Size [x]	Dot Pitch [y]	Dot Pitch [x]	Background Color [custom]	Display Type	Graphics Color	Viewing Area [x]	Viewing Area [y]	Interface	Dot Pixels [y]	Dot Pixels [x]	Display Mode	Background Color	Backlight
Matrix Orbital GLK240128-25-VPT-E	0.4 mm	0.4 mm	0.45 mm	0.45 mm	Green Yellow	LCD - Monochrome	Black	107.95 mm	57.55 mm	I2C RS-232 TTL	128	240
Matrix Orbital GLK240128-25-422-VPT	0.4 mm	0.4 mm	0.45 mm	0.45 mm	Green Yellow	LCD - Monochrome	Black	107.95 mm	57.55 mm		128	240
Matrix Orbital GLK240128-25-E	0.4 mm	0.4 mm	0.45 mm	0.45 mm		Monochrome	Black	114 mm	64 mm	I2C RS-232 TTL	128	240	Transmissive	Green
Matrix Orbital GLK240128-25-VPT	0.4 mm	0.4 mm	0.45 mm	0.45 mm		Monochrome	Black	114 mm	64 mm	I2C RS-232 TTL	128	240	Transmissive	Green
Matrix Orbital GLK240128-25-422-FGW-VPT	0.4 mm	0.4 mm	0.45 mm	0.45 mm		LCD - Monochrome	Gray	107.95 mm	57.55 mm		128	240		White

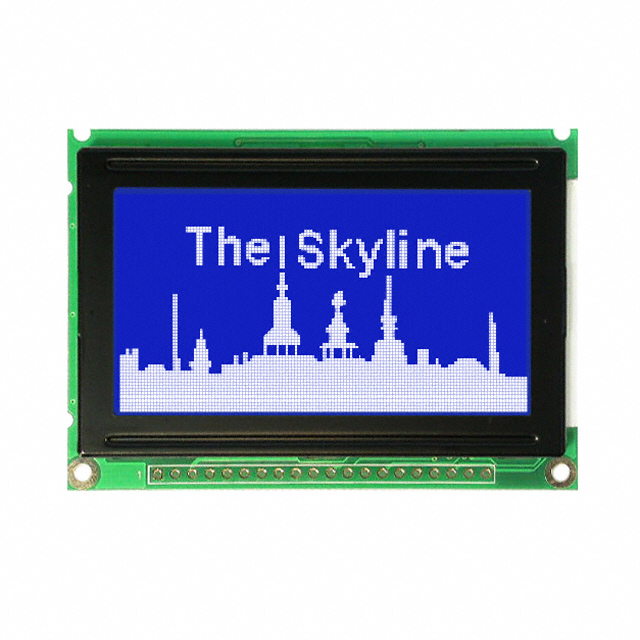

Matrix Orbital GLK240128-25-WB-VPT	0.4 mm	0.4 mm	0.45 mm	0.45 mm		Monochrome	White	114 mm	64 mm	I2C RS-232 TTL	128	240	Transmissive	Blue	LED - White
Matrix Orbital GLK240128-25-USB	0.4 mm	0.4 mm	0.45 mm	0.45 mm	Green Yellow	LCD - Monochrome	Black	107.95 mm	57.55 mm	USB	128	240
Matrix Orbital GLK240128-25-422-WB-VPT-E	0.4 mm	0.4 mm	0.45 mm	0.45 mm		LCD - Monochrome	White	107.95 mm	57.55 mm		128	240		Blue
Matrix Orbital GLK240128-25-FGW-VPT-E	0.4 mm	0.4 mm	0.45 mm	0.45 mm		LCD - Monochrome	Gray	107.95 mm	57.55 mm	I2C RS-232 TTL	128	240		White
Matrix Orbital GLK240128-25-USB-WB-E	0.4 mm	0.4 mm	0.45 mm	0.45 mm		LCD - Monochrome	White	107.95 mm	57.55 mm	USB	128	240		Blue
