M40-401 Series

Catalog

CONN HEADER SMD R/A 8POS 1MM

Part	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Connector Type	Contact Material	Features	Insulation Material	Material Flammability Rating	Shrouding	Mounting Type	Style	Termination	Number of Rows	Contact Finish - Post	Contact Shape	Insulation Height	Insulation Height	Contact Type	Number of Positions	Fastening Type	Voltage Rating

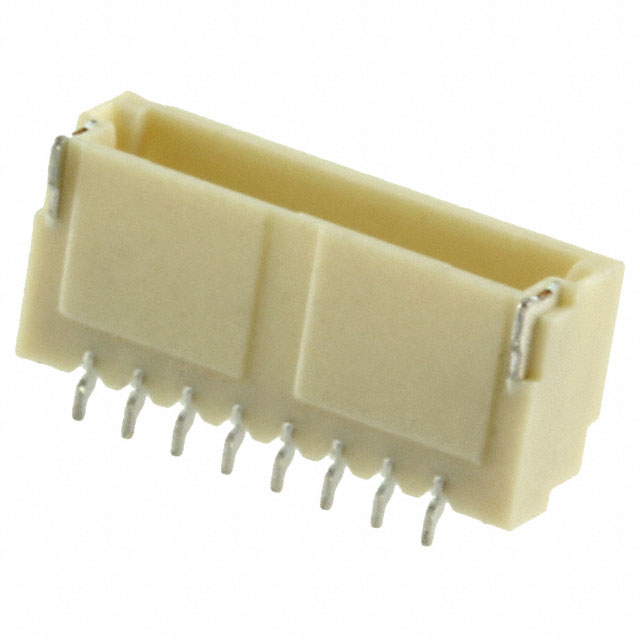

Harwin Inc. M40-4010846	All	1 mm	0.039 in	85 °C	-25 °C	Natural	Header	Phosphor Bronze	Solder Retention	Nylon 9T Polyamide (PA9T)	UL94 V-0	Shrouded - 4 Wall	Right Angle Surface Mount	Board to Cable/Wire	Solder	1	Tin	Rectangular	0.114 in	2.9 mm	Male Pin	8	Push-Pull	50 V

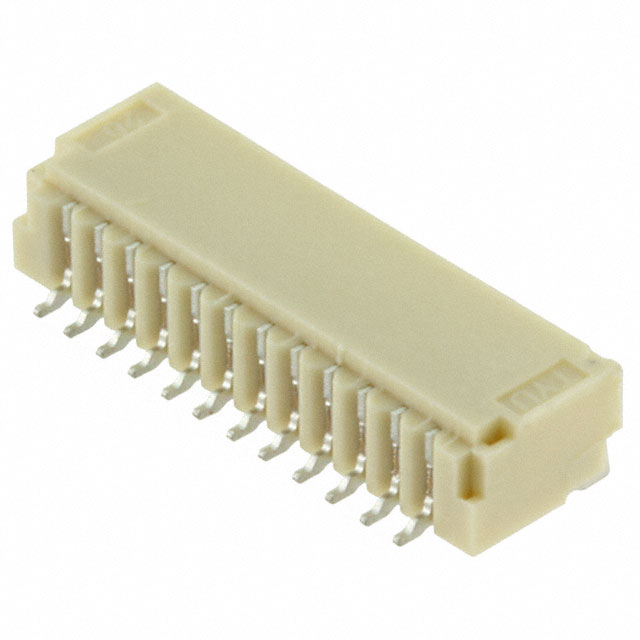

Harwin Inc. M40-4011246	All	1 mm	0.039 in	85 °C	-25 °C	Natural	Header	Phosphor Bronze	Solder Retention	Nylon 9T Polyamide (PA9T)	UL94 V-0	Shrouded - 4 Wall	Right Angle Surface Mount	Board to Cable/Wire	Solder	1	Tin	Rectangular	0.114 in	2.9 mm	Male Pin	12	Push-Pull	50 V

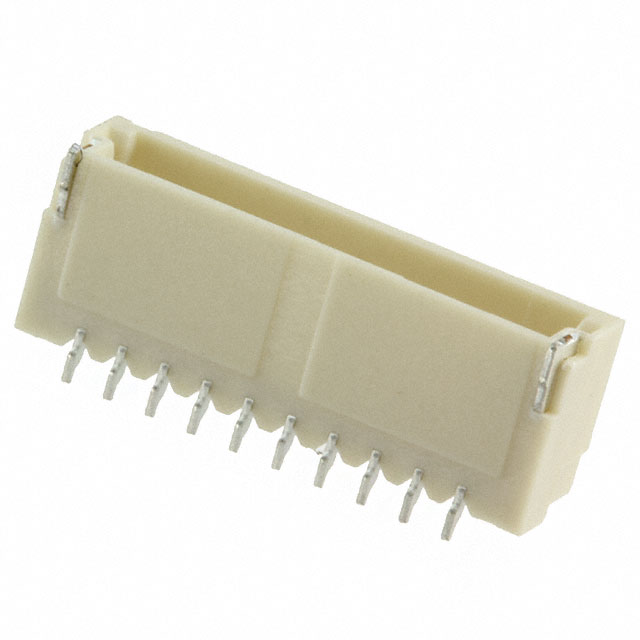

Harwin Inc. M40-4011046	All	1 mm	0.039 in	85 °C	-25 °C	Natural	Header	Phosphor Bronze	Solder Retention	Nylon 9T Polyamide (PA9T)	UL94 V-0	Shrouded - 4 Wall	Right Angle Surface Mount	Board to Cable/Wire	Solder	1	Tin	Rectangular	0.114 in	2.9 mm	Male Pin	10	Push-Pull	50 V

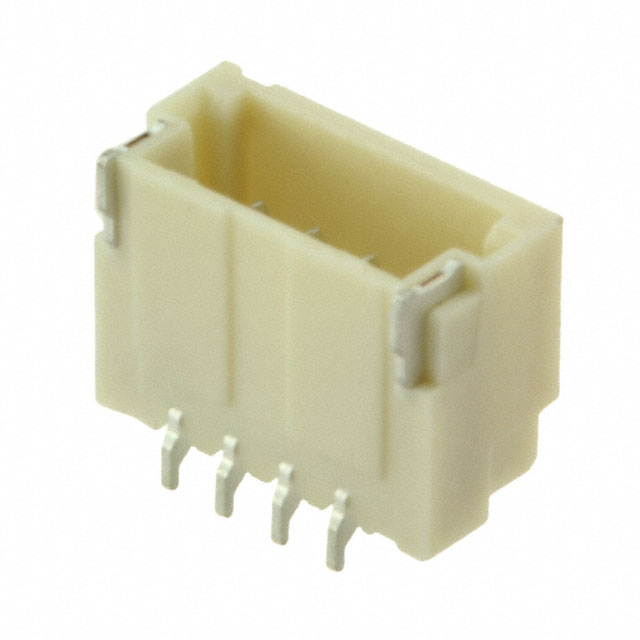

Harwin Inc. M40-4010446	All	1 mm	0.039 in	85 °C	-25 °C	Natural	Header	Phosphor Bronze	Solder Retention	Nylon 9T Polyamide (PA9T)	UL94 V-0	Shrouded - 4 Wall	Right Angle Surface Mount	Board to Cable/Wire	Solder	1	Tin	Rectangular	0.114 in	2.9 mm	Male Pin	4	Push-Pull	50 V
Harwin Inc. M40-4010246R	All	1 mm	0.039 in	85 °C	-25 °C	Natural	Header	Phosphor Bronze	Solder Retention	Nylon 9T Polyamide (PA9T)	UL94 V-0	Shrouded - 4 Wall	Right Angle Surface Mount	Board to Cable/Wire	Solder	1	Tin	Rectangular	0.114 in	2.9 mm	Male Pin	2	Push-Pull	50 V
Harwin Inc. M40-4010246	All	1 mm	0.039 in	85 °C	-25 °C	Natural	Header	Phosphor Bronze	Solder Retention	Nylon 9T Polyamide (PA9T)	UL94 V-0	Shrouded - 4 Wall	Right Angle Surface Mount	Board to Cable/Wire	Solder	1	Tin	Rectangular	0.114 in	2.9 mm	Male Pin	2	Push-Pull	50 V

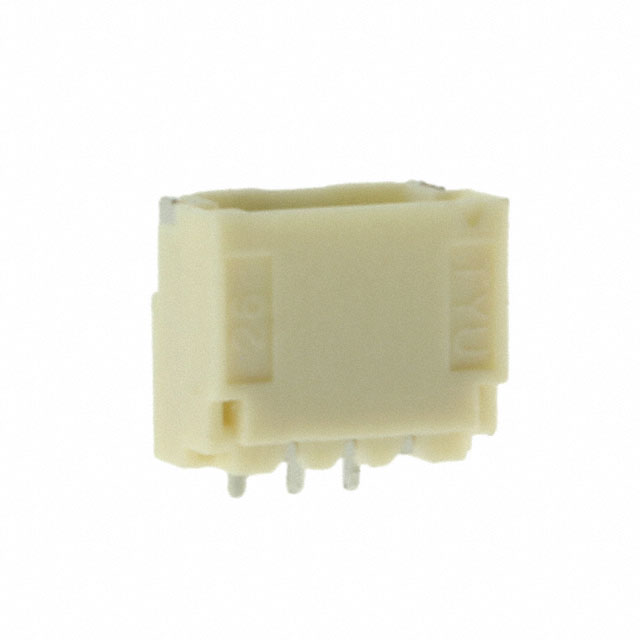

Harwin Inc. M40-4010346R	All	1 mm	0.039 in	85 °C	-25 °C	Natural	Header	Copper Alloy	Solder Retention	Liquid Crystal Polymer (LCP)	UL94 V-0	Shrouded - 4 Wall	Right Angle Surface Mount	Board to Cable/Wire	Solder	1	Tin	Rectangular	0.118 in	3 mm	Male Pin		Push-Pull	50 VAC

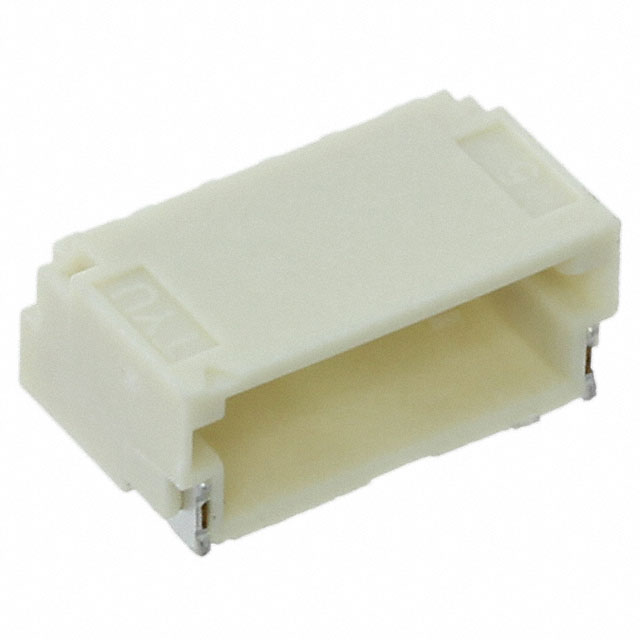

Harwin Inc. M40-4010546	All	1 mm	0.039 in	85 °C	-25 °C	Natural	Header	Phosphor Bronze	Solder Retention	Nylon 9T Polyamide (PA9T)	UL94 V-0	Shrouded - 4 Wall	Right Angle Surface Mount	Board to Cable/Wire	Solder	1	Tin	Rectangular	0.114 in	2.9 mm	Male Pin	5	Push-Pull	50 V
