WLC60 Series

Catalog

LED LIGHTING FIXTURES WLC60 WORK LIGHT; LENGTH: 640 MM; NICKEL-PLATED ALUMINUM; PWM DIMMING; VOLTAGE: 12-30 V DC; ENVIRONMENTAL RATING: IP68G, IP69K; COLOR: WHITE; CASCADABLE; WINDOW: POLYCARBONATE; 4-PIN M12 INTEGRAL QD; SIDE EXIT

Part	Features	Approval Agency	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Luminous Flux	Illumination Color	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [y]	Profile (W x H) [x]	Ingress Protection	Housing Material	Length	Length	Rated Life	Lens Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Profile (W x H) [x]	Profile (W x H) [y]

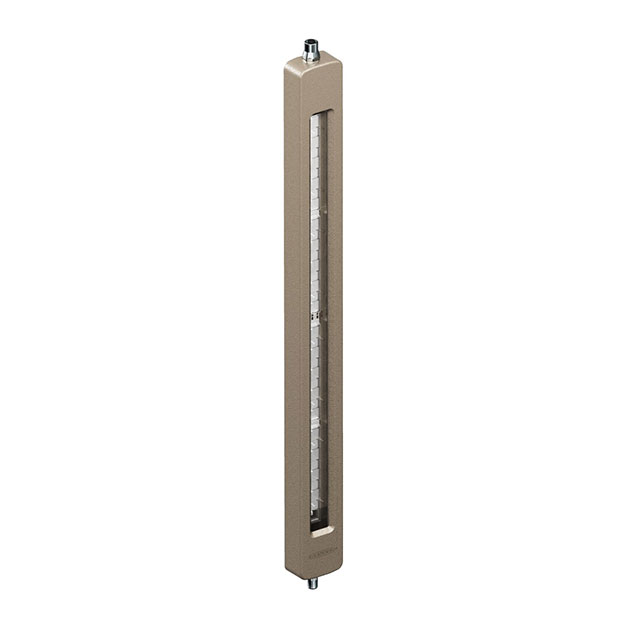

BANNER ENGINEERING WLC60CW640APWMQ	Cascadable	CE cULus	Connector (M12)	70 °C	-40 C	2600 lm	Cool White	2.4 in	31.3 mm	1.23 in	60.9 mm	IP67 IP68G IP69K	Aluminum (Al) Nickel Plated	640 mm	25.2 in	60000 Hours	Clear Flat	12 VDC	30 VDC
BANNER ENGINEERING WLC60CW340GAQ		CE cULus	Connector (M12)	70 °C	-40 C	1300 lm	Cool White	2.4 in	31.3 mm	1.23 in	60.9 mm	IP67 IP68G IP69K	Aluminum (Al) Nickel Plated	340 mm	13.39 in	60000 Hours	Clear Flat	12 VDC	30 VDC
BANNER ENGINEERING WLC60XW640DAQ	Cascadable	CE cULus	Connector (M12)	70 °C	-40 C	2600 lm	Cool White		1.21 in		2.4 in	IP67 IP68G IP69K	Aluminum (Al) Nickel Plated	640 mm	25.2 in	60000 Hours	Clear Flat	12 VDC	30 VDC	60.9 mm	30.7 mm
BANNER ENGINEERING WLC60XB340GAQ	Cascadable	CE cULus	Connector (M12)	70 °C	-40 C	340 lm	Blue	2.4 in	31.3 mm	1.23 in	60.9 mm	IP67 IP68G IP69K	Aluminum (Al) Nickel Plated	340 mm	13.39 in	60000 Hours	Clear Flat	12 VDC	30 VDC
BANNER ENGINEERING WLC60XW340ARPWMQ	Cascadable	CE cULus	Connector (M12)	70 °C	-40 C	1300 lm	Cool White	2.4 in	31.3 mm	1.23 in	60.9 mm	IP67 IP68G IP69K	Aluminum (Al) Nickel Plated	340 mm	13.39 in	60000 Hours	Clear Flat	12 VDC	30 VDC
