842-082 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 82POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Read Out	Contact Finish	Termination	Color	Flange Feature	Gender	Number of Positions	Contact Type	Card Type	Number of Positions/Bay/Row	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 842-082-523-208	Diallyl Phthalate (DAP)	2	Dual	Gold	Solder	Green	4-40 Flush Mount Threaded Insert Top Opening	Female	82	Cantilever	Non Specified - Dual Edge	41	Copper Alloy	0.25 Ám	10 Áin	Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm

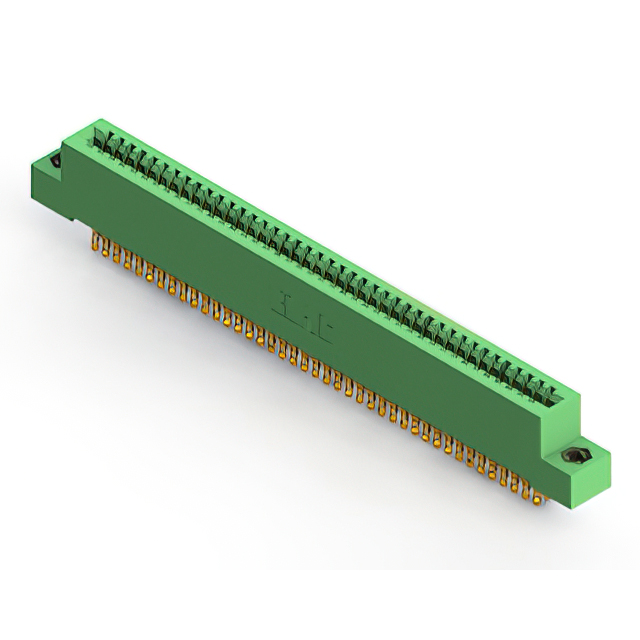

EDAC Inc. 842-082-555-208	Diallyl Phthalate (DAP)	2	Dual	Gold	Solder	Green	4-40 Flush Mount Threaded Insert Top Opening	Female	82	Cantilever	Non Specified - Dual Edge	41	Copper Alloy	0.25 Ám	10 Áin	Board Edge Straddle Mount	2	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm	Card Extender

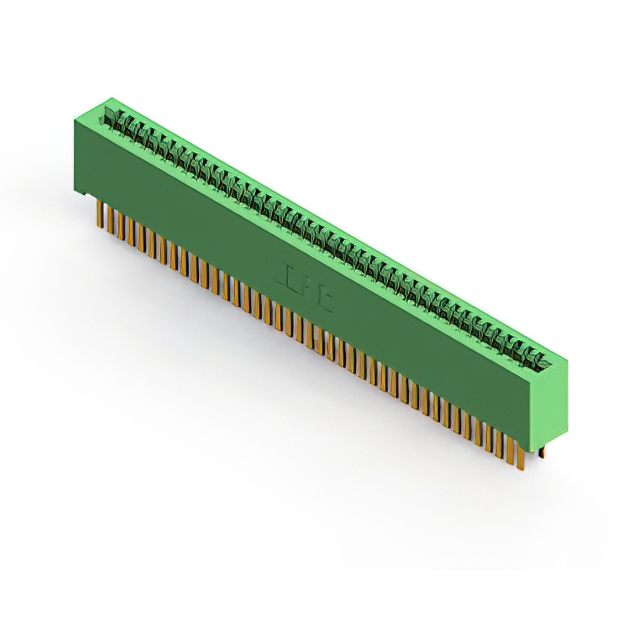

EDAC Inc. 842-082-544-201	Diallyl Phthalate (DAP)	2	Dual	Gold	Wire Wrap	Green		Female	82	Cantilever	Non Specified - Dual Edge	41	Copper Alloy	0.25 Ám	10 Áin	Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm

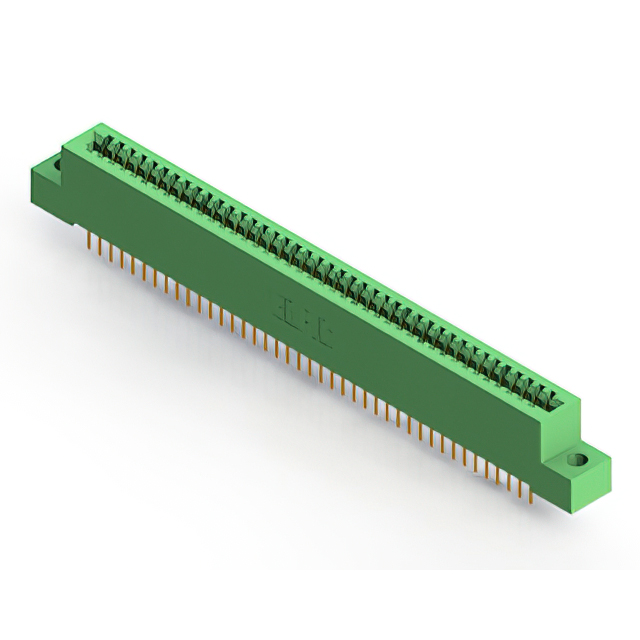

EDAC Inc. 842-082-524-204	Diallyl Phthalate (DAP)	2	Dual	Gold	Solder	Green	Flush Mount Top Opening Unthreaded	Female	82	Cantilever	Non Specified - Dual Edge	41	Copper Alloy	0.25 Ám	10 Áin	Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm		0.156 "	3.96 mm
EDAC Inc. 842-082-541-201	Diallyl Phthalate (DAP)	2	Dual	Gold	Wire Wrap	Green		Female	82	Cantilever	Non Specified - Dual Edge	41	Copper Alloy	0.25 Ám	10 Áin	Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm

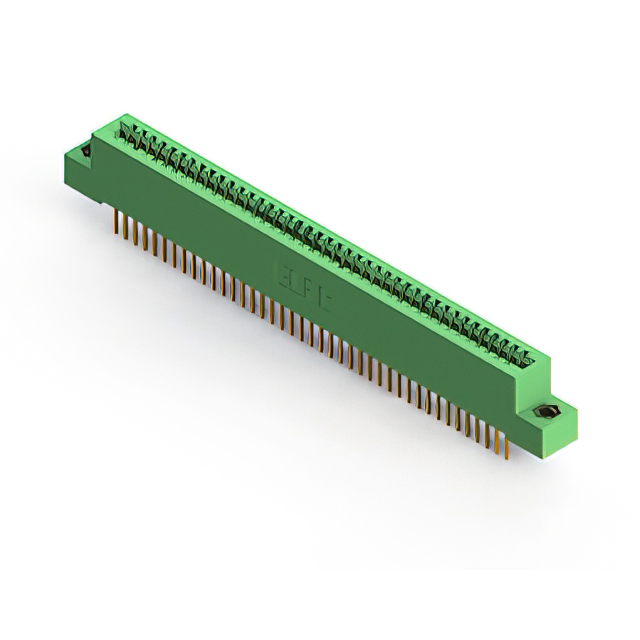

EDAC Inc. 842-082-541-207	Diallyl Phthalate (DAP)	2	Dual	Gold	Wire Wrap	Green	Flush Mount M3 Threaded Insert Top Opening	Female	82	Cantilever	Non Specified - Dual Edge	41	Copper Alloy	0.25 Ám	10 Áin	Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm
EDAC Inc. 842-082-560-201	Diallyl Phthalate (DAP)	2	Dual	Gold	Solder	Green		Female	82	Cantilever	Non Specified - Dual Edge	41	Copper Alloy	0.25 Ám	10 Áin	Board Edge Straddle Mount	2	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm	Card Extender
EDAC Inc. 842-082-520-212	Diallyl Phthalate (DAP)	2	Dual	Gold	Solder	Green	Flush Mount Side Opening Unthreaded	Female	82	Cantilever	Non Specified - Dual Edge	41	Copper Alloy	0.25 Ám	10 Áin	Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm		0.128 "	3.25 mm

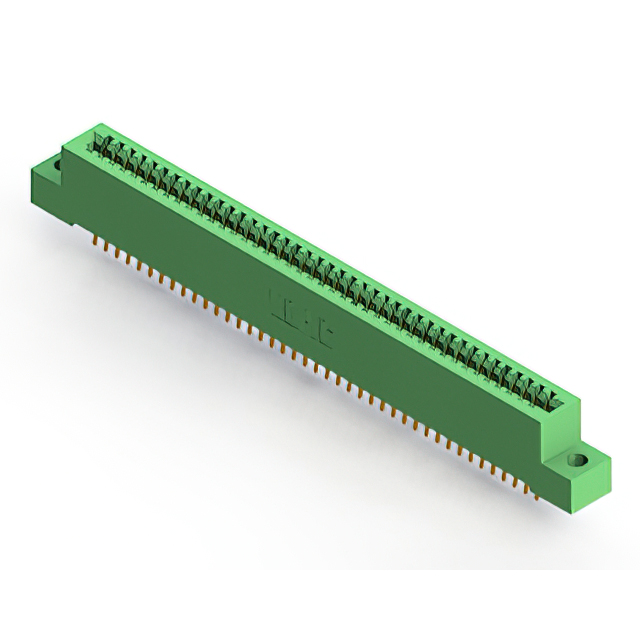

EDAC Inc. 842-082-556-204	Diallyl Phthalate (DAP)	2	Dual	Gold	Solder	Green	Flush Mount Top Opening Unthreaded	Female	82	Cantilever	Non Specified - Dual Edge	41	Copper Alloy	0.25 Ám	10 Áin	Board Edge Straddle Mount	2	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm	Card Extender	0.156 "	3.96 mm
EDAC Inc. 842-082-520-202	Diallyl Phthalate (DAP)	2	Dual	Gold	Solder	Green	Flush Mount Top Opening Unthreaded	Female	82	Cantilever	Non Specified - Dual Edge	41	Copper Alloy	0.25 Ám	10 Áin	Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.1 "	2.54 mm		0.128 "	3.25 mm
