DE-9S Series
Manufacturer: JAE Electronics
Beta
⌘K

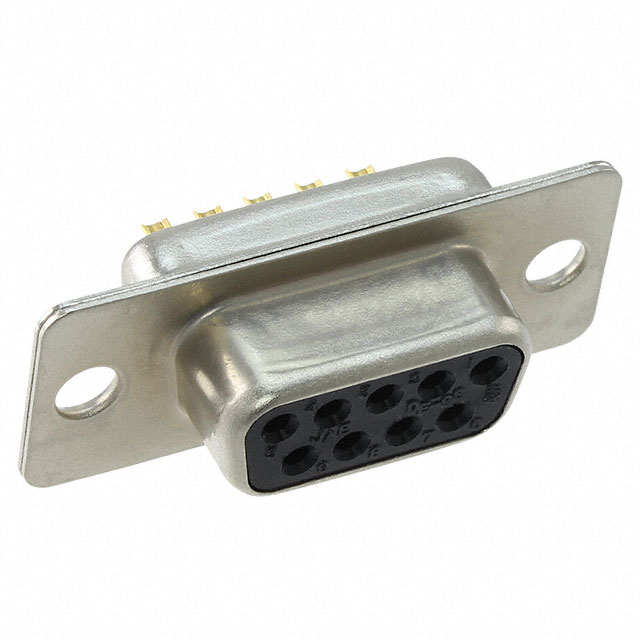

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Color | Dielectric Material | Contact Form | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Current Rating (Amps) | Contact Finish | Material Flammability Rating | Connector Style | Mounting Type | Number of Rows [custom] | Flange Feature | Connector Type | Number of Positions | Shell Material, Finish | Termination | Features | Backset Spacing | Backset Spacing | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Black | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | Copper Alloy | -55 C | 105 ░C | 1 | DE E | Signal | 5 A | Gold | UL94 V-0 | D-Sub | Through Hole | 2 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 9 | Nickel Plated Steel | Solder | ||||
 JAE Electronics | Black | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | Copper Alloy | -55 C | 105 ░C | 1 | DE E | Signal | 5 A | Gold | UL94 V-0 | D-Sub | Right Angle Through Hole | 2 | Housing/Shell (M2.6) | Receptacle Female Sockets | 9 | Nickel Plated Steel | Solder | Shielded | 7.2 mm | 0.283 in | |
 JAE Electronics | Black | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | Copper Alloy | -55 C | 105 ░C | 1 | DE E | Signal | 5 A | Gold | UL94 V-0 | D-Sub | Panel Mount | 2 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 9 | Steel Zinc Plated | 20 AWG | ||||
 JAE Electronics | Black | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | Copper Alloy | -55 C | 105 ░C | 1 | DE E | Signal | 5 A | Gold | UL94 V-0 | D-Sub | Panel Mount | 2 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 9 | Nickel Plated Steel | Shielded | 20 AWG | |||
JAE Electronics | Black | Polybutylene Terephthalate (PBT) Glass Filled | Stamped | Copper Alloy | -55 C | 105 ░C | 1 | DE E | Signal | 5 A | Gold | UL94 V-0 | D-Sub | Right Angle Through Hole | 2 | Housing/Shell (M2.6) | Receptacle Female Sockets | 9 | Steel Zinc Plated | Solder | 7.2 mm | 0.283 in |
