9536 Series

Catalog

CABLE 6COND 24AWG CHRM SHD

Part	Shield Material	Shield Coverage	Features	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length	Length	Number of Conductors	Conductor Material	Ratings	Shield Type	Cable Type	Jacket (Insulation) Material	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]

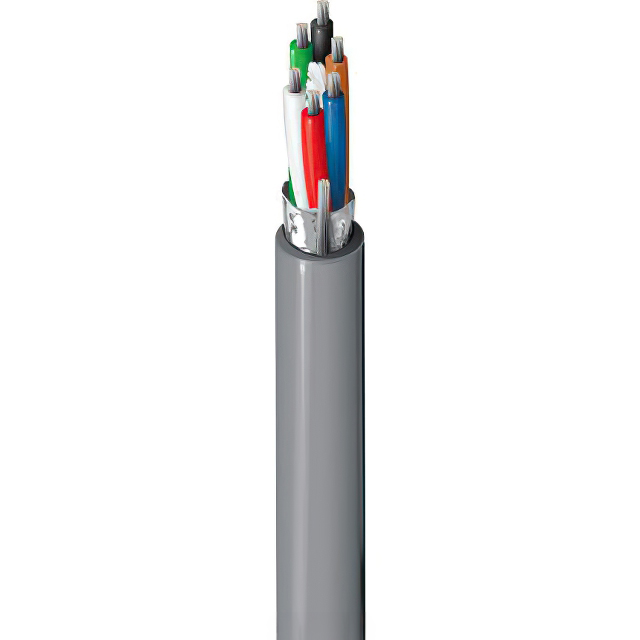

Belden Inc. 9536 0601000	Aluminum	100 %	Drain Wire	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	7	32 AWG	Chrome	304.8 m	1000 ft	6	Copper Tinned	UL Style 2464	Foil	Multi-Conductor	Poly-Vinyl Chloride (PVC)	24 AWG	80 °C	-30 ░C	300 VDC	Computer	0.209 in	5.31 mm
Belden Inc. 9536 060U1000	Aluminum	100 %	Drain Wire	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	7	32 AWG	Chrome	304.8 m	1000 ft	6	Copper Tinned	UL Style 2464	Foil	Multi-Conductor	Poly-Vinyl Chloride (PVC)	24 AWG	80 °C	-30 ░C	300 VDC	Computer	0.209 in	5.31 mm

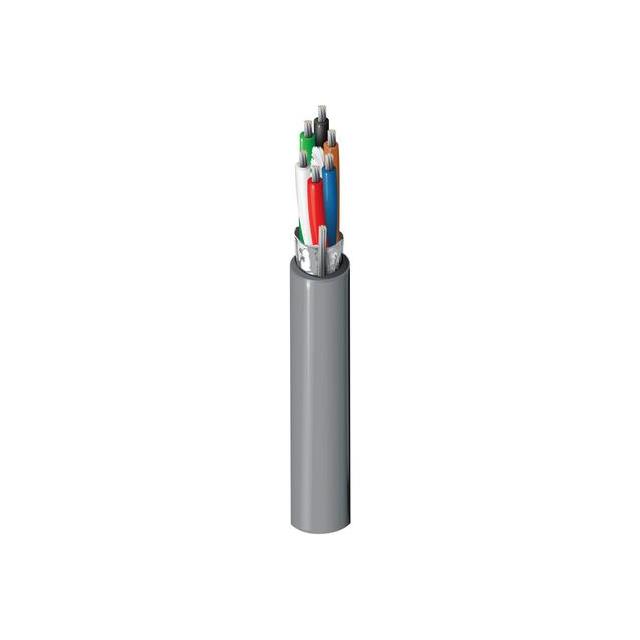

Belden Inc. 9536 0605000	Aluminum	100 %	Drain Wire	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	7	32 AWG	Chrome			6	Copper Tinned	UL Style 2464	Foil	Multi-Conductor	Poly-Vinyl Chloride (PVC)	24 AWG	80 °C	-30 ░C	300 VDC	Computer	0.209 in	5.31 mm
Belden Inc. 9536 060100	Aluminum	100 %	Drain Wire	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	7	32 AWG	Chrome			6	Copper Tinned		Foil	Multi-Conductor	Poly-Vinyl Chloride (PVC)	24 AWG	80 °C	-30 ░C		Computer	0.209 in	5.31 mm	100 ft	30.5 m
Belden Inc. 9536 060U500	Aluminum	100 %	Drain Wire	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	7	32 AWG	Chrome	152.4 m	500 ft	6	Copper Tinned	UL Style 2464	Foil	Multi-Conductor	Poly-Vinyl Chloride (PVC)	24 AWG	80 °C	-30 ░C	300 VDC	Computer	0.209 in	5.31 mm
