1061 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

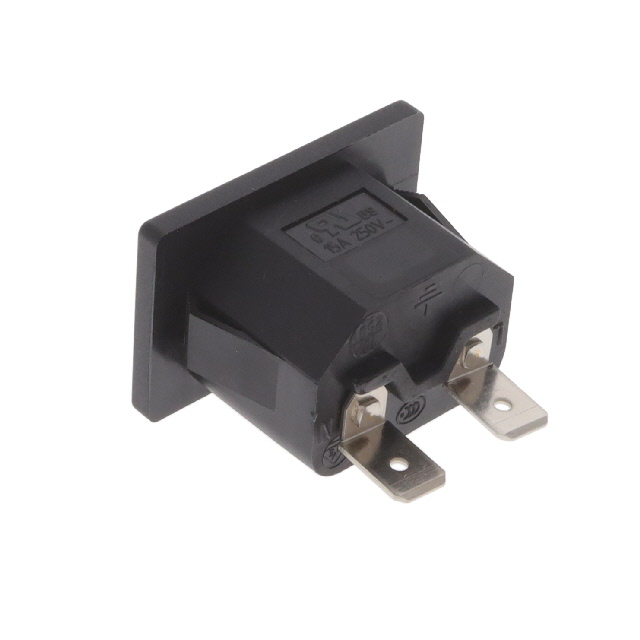

AC POWER ENTRY MODULES 1061 APPLIANCE INLET 10A 70C
| Part | Filter Type | Termination | Material Flammability Rating | Mounting Type | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Approval Agency | Accomodates a Fuse | Ingress Protection | Current Rating - Appliance Inlet | Connector Type | Connector Style | Voltage Rating - Appliance Inlet | Number of Positions | Termination | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Unfiltered - Commercial | Solder Eyelet | UL94 V-0 | Panel Mount Snap-In | 0.79 mm | 0.079 " | 0.031 " | 2 mm | CCC cCSAus ENEC UL | IP20 | 10 A | Receptacle Male Blades | IEC 320-C14 | 250 VAC | ||||
 SCHURTER Inc. | Unfiltered - Commercial | Solder Eyelet | UL94 V-0 | Panel Mount Snap-In | 0.79 mm | 0.079 " | 0.031 " | 2 mm | CCC cCSAus ENEC UL | IP20 | 10 A | Receptacle Male Blades | IEC 320-C18 | 250 VAC | 2 | |||
 SCHURTER Inc. | Unfiltered - Commercial | Quick Connect | UL94 V-0 | Panel Mount Snap-In | 0.79 mm | 0.079 " | 0.031 " | 2 mm | CCC cCSAus ENEC UL | IP20 | 10 A | Receptacle Male Blades | IEC 320-C18 | 250 VAC | 2 | 6.3 mm | 0.25 " | |
 SCHURTER Inc. | Unfiltered - Commercial | Solder Eyelet | UL94 V-0 | Panel Mount Snap-In | 0.79 mm | 0.079 " | 0.031 " | 2 mm | CCC cCSAus ENEC UL | IP20 | 10 A | Receptacle Male Blades | IEC 320-C14 | 250 VAC |
