142.5395.6122 Series

Fuse - BF2 58V / 1000A DC, 125A 200 pc

Catalog

Fuse - BF2 58V / 1000A DC, 125A 200 pc

Part	Color	Mounting Type	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Response Time	Current Rating (Amps)	Melting I²t	DC Cold Resistance	Package / Case	Fuse Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Littelfuse/Commercial Vehicle Products 142.5395.6122	Green	Bolt Mount	58 VDC	1 kA	Slow Blow	125 A	118100	0.52 Ohms	Auto Link	Automotive	29 mm	18.8 mm	0.382 "	1.142 inches	9.7 mm	0.74 in

Fuse - BF2 58V / 1000A DC, 125A 200 pc

• Green housing indicates 125 A rating

• Tin-plated copper alloy terminals

• Refers to ISO 8820-5:2015

• UL Recognized in Canada and United States as a UL Special Purpose Fuse

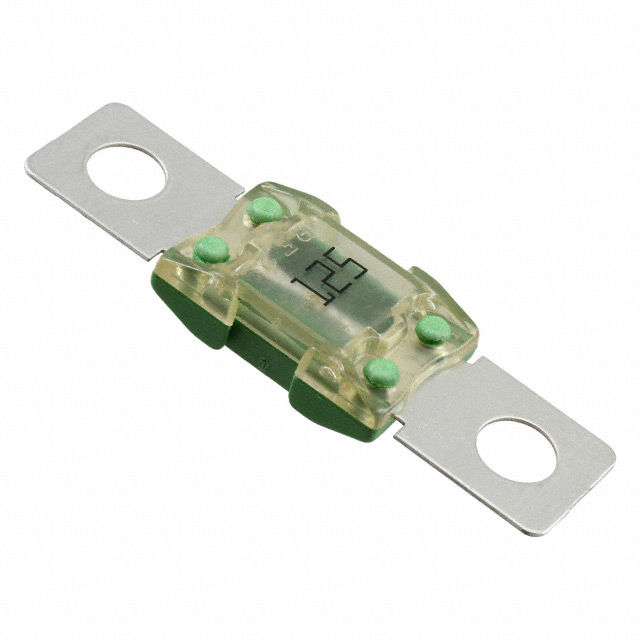

This 125 A BF2 58V bolt-down automotive fuse employs SLO-BLO® technology to provide time-delayed protection for high-current wiring harnesses.
