DA10-050 Series

Catalog

AC/DC WALL MOUNT ADAPTER 5V 10W

Part	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Efficiency	Approval Agency	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	No Load Power Consumption	Form	Output Connector	Region Utilized	Current - Output (Max) [Max]	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Cord Length	Cord Length

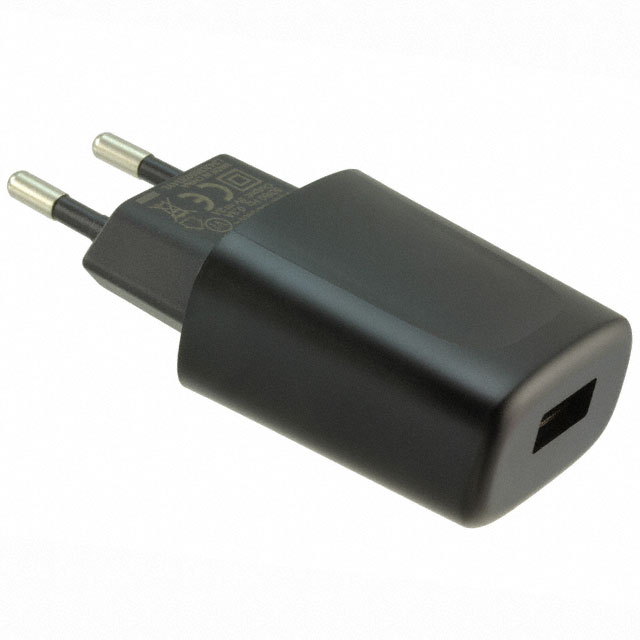

ARTESYN / Advanced Energy DA10-050EU	Fixed Blade	40 °C	-10 °C	CEE 7/16	CoC Tier 2 Level VI	CCC CE CSA DEMKO CB PSE UL	10 W	39.5 mm	1.56 "	2.45 in	62.3 mm	0.98 "	25 mm	264 VAC	90 VAC	5 V	75 mW	Wall Mount	USB A Receptacle	Europe	2 A	ITE (Commercial)

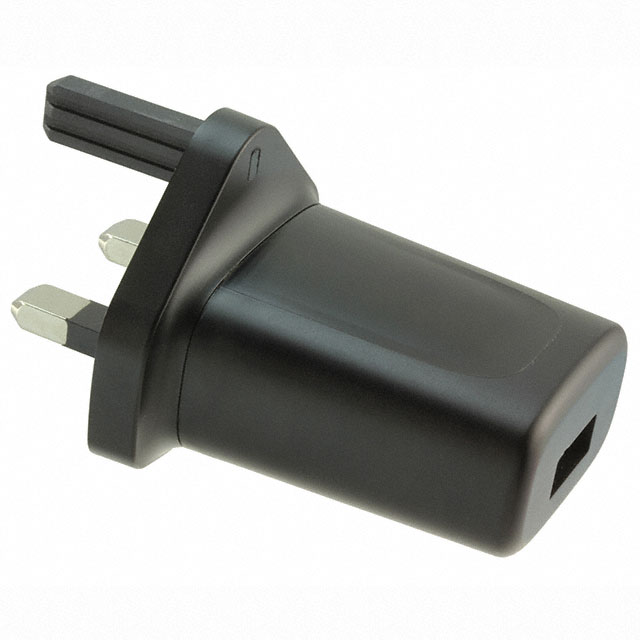

ARTESYN / Advanced Energy DA10-050UK	Fixed Blade	40 °C	-10 °C	BS 1363	CoC Tier 2 Level VI	CCC CE CSA DEMKO CB PSE UL	10 W	1.93 "			1.87 in		1.63 in	264 VAC	90 VAC	5 V	75 mW	Wall Mount	USB A Receptacle	United Kingdom	2 A	ITE (Commercial)	47.5 mm	41.4 mm	49 mm

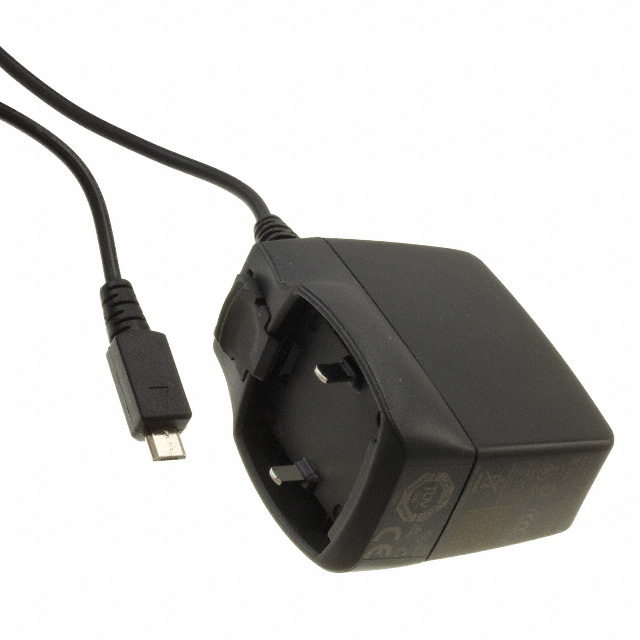

ARTESYN / Advanced Energy DA10-050MP-M402	Multi-Blade (Sold Separately)	40 °C	-10 °C	Multi-Blade (Sold Separately)	Level VI		10 W	40.2 mm	1.58 "	2.06 in	52.2 mm	2.36 "	60 mm	264 VAC	90 VAC	5 V		Wall Mount	USB Micro	International	2 A	ITE (Commercial) Medical				1.5 m	59 in

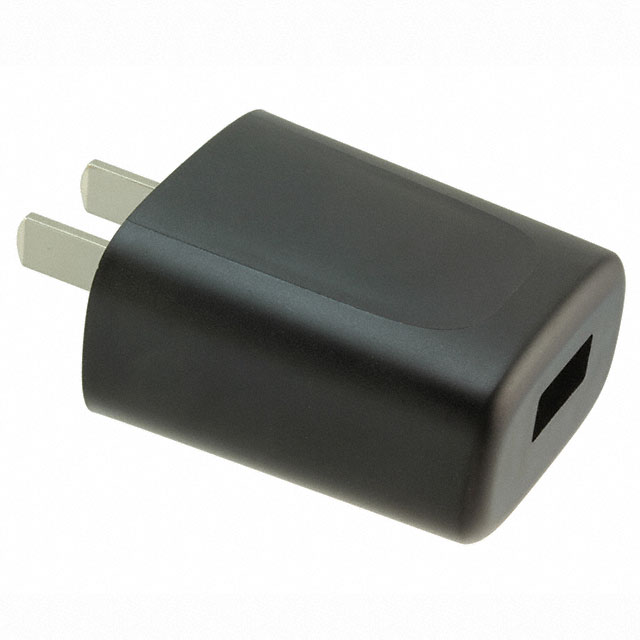

ARTESYN / Advanced Energy DA10-050CH	Fixed Blade	40 °C	-10 °C	GB 1002	CoC Tier 2 Level VI	CCC CE CSA DEMKO CB PSE UL	10 W	39.5 mm	1.56 "	1.73 "	44 mm	0.98 "	25 mm	264 VAC	90 VAC	5 V	75 mW	Wall Mount	USB A Receptacle	China	2 A	ITE (Commercial)
