LPPB112 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

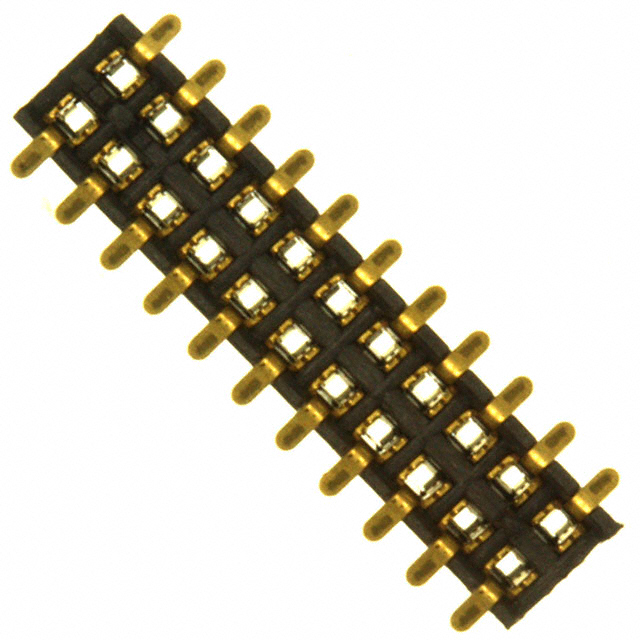

CONN HDR 22POS 0.05 GOLD SMD
| Part | Insulation Material | Contact Material | Contact Finish Thickness - Post | Contact Shape | Fastening Type | Contact Finish - Post | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Type | Number of Positions | Mounting Type | Insulation Color | Pitch - Mating | Pitch - Mating | Number of Rows [custom] | Connector Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Flash | Square | Push-Pull | Gold | 0.05 in | 1.27 mm | Flash | Gold | 4.65 mm | 0.183 in | All | Female Socket | 22 | Surface Mount | Black | 1.27 mm | 0.05 in | 2 | Header Top or Bottom Entry | UL94 V-0 | 125 °C | -40 C | Solder | |
 Sullins Connector Solutions | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Flash | Square | Push-Pull | Gold | 0.05 in | 1.27 mm | Flash | Gold | 4.65 mm | 0.183 in | All | Female Socket | 22 | Surface Mount | Black | 1.27 mm | 0.05 in | 2 | Header Top or Bottom Entry | UL94 V-0 | 125 °C | -40 C | Solder | Board Guide |
