DRV3255-Q1 Series

Automotive, integrated, 3-phase 48-V Gate Driver Unit (GDU) with 4.5-A peak sink gate drive current

Catalog

Automotive, integrated, 3-phase 48-V Gate Driver Unit (GDU) with 4.5-A peak sink gate drive current

Part	Motor Type - Stepper	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Supplier Device Package	Technology	Current - Output	Output Configuration	Motor Type - AC, DC	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Qualification	Function

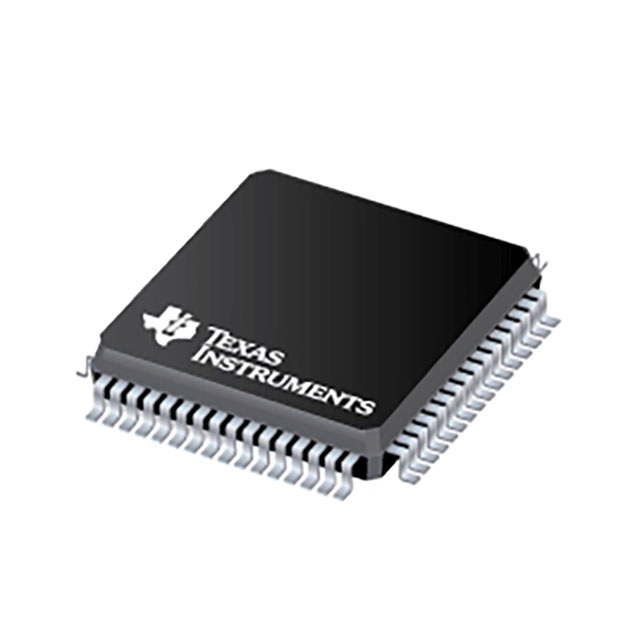

Texas Instruments DRV3255EPAPRQ1	Multiphase	95 V	5 V	Surface Mount	64-HTQFP (10x10)	NMOS	4.5 A	Half Bridge (3)	Brushless DC (BLDC)	150 °C	-40 °C	Automotive	20 V	90 V	64-TQFP Exposed Pad	AEC-Q100	Controller - Current Management

Catalog

Automotive, integrated, 3-phase 48-V Gate Driver Unit (GDU) with 4.5-A peak sink gate drive current

Key Features

• AEC-Q100 qualified for automotive applications:Device ambient temperature grade 0: –40°C to +150°CDevice HBM ESD classification level 2Device CDM ESD classification level C4BFunctional Safety-ComplianttargetedDeveloped for functional safety applicationsDocumentation to aid ISO 26262 system design will be available upon production releaseSystematic capability up to ASIL D targetedThree N-Channel half-bridge gate driver3.5-A/4.5-A max peak gate drive currentPower architecture optimized for 48-V applications12-V/48-V split supply architecture95-V transient absolute maximum rating of DC link power supply (DHCP)105-V Bootstrap voltage to support 90-V MOSFET operating voltage rangeBootstrap with charge pump for 100% duty cycleIntegrated configurable Active Short Circuit (ASC) functionLow-side and High-side ASC supportDevice pin control availableFault handling capabilitySerial peripheral interface (SPI) with CRCSupports 3.3-V and 5-V logic inputsAdvanced protection featuresBattery voltage monitorsMOSFET VDSovercurrent monitorsMOSFET VGSgate fault monitorsAnalog built in self testInternal regulator and clock monitorsDevice thermal warning and shutdownFault condition indicator pin sAEC-Q100 qualified for automotive applications:Device ambient temperature grade 0: –40°C to +150°CDevice HBM ESD classification level 2Device CDM ESD classification level C4BFunctional Safety-ComplianttargetedDeveloped for functional safety applicationsDocumentation to aid ISO 26262 system design will be available upon production releaseSystematic capability up to ASIL D targetedThree N-Channel half-bridge gate driver3.5-A/4.5-A max peak gate drive currentPower architecture optimized for 48-V applications12-V/48-V split supply architecture95-V transient absolute maximum rating of DC link power supply (DHCP)105-V Bootstrap voltage to support 90-V MOSFET operating voltage rangeBootstrap with charge pump for 100% duty cycleIntegrated configurable Active Short Circuit (ASC) functionLow-side and High-side ASC supportDevice pin control availableFault handling capabilitySerial peripheral interface (SPI) with CRCSupports 3.3-V and 5-V logic inputsAdvanced protection featuresBattery voltage monitorsMOSFET VDSovercurrent monitorsMOSFET VGSgate fault monitorsAnalog built in self testInternal regulator and clock monitorsDevice thermal warning and shutdownFault condition indicator pin s

Description

The DRV3255-Q1 device is a highly-integrated three phase gate driver for 48-V automotive motor drive applications. The device is specifically designed to support high-power motor drive applications by providing 3.5-A peak source and 4.5-A peak sink gate drive currents, and 90-V MOSFET transient over voltage support. A highly efficient bootstrap architecture is used to minimize power losses and self-heating of the gate drivers. A charge pump allows for the gate drivers to support 100% PWM duty cycle control. A wide range of diagnostics, monitoring, and protection features supports a robust motor drive system design. A highly configurable Active Short Circuit (ASC) function which enables selected external MOSFETs is integrated to achieve the fast response to system faults and to eliminate the needs of external components. The DRV3255-Q1 device is a highly-integrated three phase gate driver for 48-V automotive motor drive applications. The device is specifically designed to support high-power motor drive applications by providing 3.5-A peak source and 4.5-A peak sink gate drive currents, and 90-V MOSFET transient over voltage support. A highly efficient bootstrap architecture is used to minimize power losses and self-heating of the gate drivers. A charge pump allows for the gate drivers to support 100% PWM duty cycle control. A wide range of diagnostics, monitoring, and protection features supports a robust motor drive system design. A highly configurable Active Short Circuit (ASC) function which enables selected external MOSFETs is integrated to achieve the fast response to system faults and to eliminate the needs of external components.
