ADS7823 Series
Manufacturer: Texas Instruments
Beta
⌘K
12-BIT LOW POWER,I2C SERIAL, SAMPLING ANALOG-TO-DIGITAL CONVERTER
| Part | Ratio - S/H:ADC | Operating Temperature [Max] | Operating Temperature [Min] | Number of Bits | Number of Inputs | Data Interface | Package / Case | Package / Case [custom] | Package / Case | Reference Type | Input Type | Number of A/D Converters | Mounting Type | Configuration | Architecture | Voltage - Supply, Analog | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Utilized IC / Part | Power (Typ) @ Conditions | Input Range [Max] | Input Range [Min] | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1:1 | 85 °C | -40 °C | 12 bits | 1 | I2C | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | External | Single Ended | 1 | Surface Mount | S/H-ADC | SAR | 5 V | 2.7 V | 3.6 V | |||||
Texas Instruments | 1:1 | 85 °C | -40 °C | 12 bits | 1 | I2C | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | External | Single Ended | 1 | Surface Mount | S/H-ADC | SAR | 5 V | 2.7 V | 3.6 V | |||||

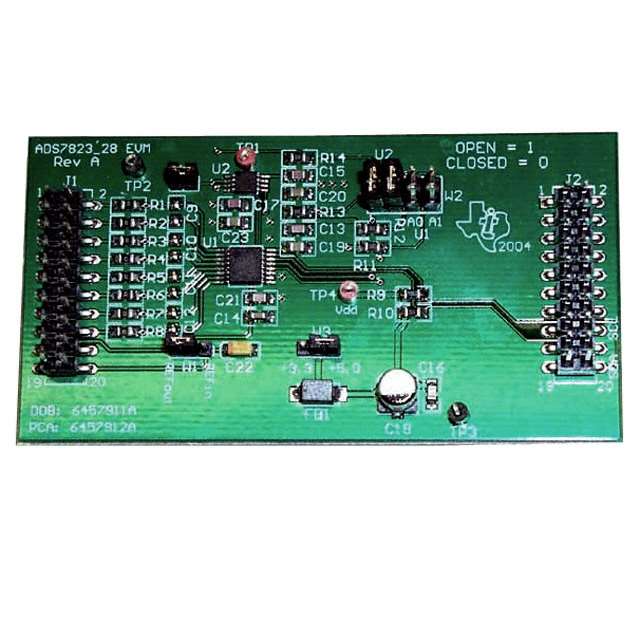

 Texas Instruments | 12 bits | I2C | 1 | ADS7823 ADS7828 | 3.6 mW | 5 V | 0 V | Board(s) | |||||||||||||||
Texas Instruments | 1:1 | 85 °C | -40 °C | 12 bits | 1 | I2C | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | External | Single Ended | 1 | Surface Mount | S/H-ADC | SAR | 5 V | 2.7 V | 3.6 V | |||||
Texas Instruments | 1:1 | 85 °C | -40 °C | 12 bits | 1 | I2C | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | External | Single Ended | 1 | Surface Mount | S/H-ADC | SAR | 5 V | 2.7 V | 3.6 V |
