845-118 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 118POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Pitch	Pitch	Termination	Number of Positions	Number of Positions/Bay/Row [custom]	Gender	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Read Out	Flange Feature [diameter]	Flange Feature [diameter]	Color	Contact Material	Card Type	Contact Type	Flange Feature	Features
EDAC Inc. 845-118-521-802	2	Diallyl Phthalate (DAP)	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.1 "	2.54 mm	Solder	118	59	Female	0.25 Ám	10 Áin	125 °C	-40 C	2	Dual	3.25 mm	0.128 "	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever
EDAC Inc. 845-118-541-502	2	Diallyl Phthalate (DAP)	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.1 "	2.54 mm	Wire Wrap	118	59	Female	0.25 Ám	10 Áin	125 °C	-40 C	2	Dual	3.25 mm	0.128 "	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever
EDAC Inc. 845-118-500-204	2	Diallyl Phthalate (DAP)	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.1 "	2.54 mm	Solder Eyelet(s)	118	59	Female	0.25 Ám	10 Áin	125 °C	-40 C	2	Dual	3.96 mm	0.156 "	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Flush Mount Top Opening Unthreaded
EDAC Inc. 845-118-541-504	2	Diallyl Phthalate (DAP)	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.1 "	2.54 mm	Wire Wrap	118	59	Female	0.25 Ám	10 Áin	125 °C	-40 C	2	Dual	3.96 mm	0.156 "	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever
EDAC Inc. 845-118-523-803	2	Diallyl Phthalate (DAP)	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.1 "	2.54 mm	Solder	118	59	Female	0.25 Ám	10 Áin	125 °C	-40 C	2	Dual	2.95 mm	0.116 "	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Floating Bobbin Top Mount Opening
EDAC Inc. 845-118-500-503	2	Diallyl Phthalate (DAP)	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.1 "	2.54 mm	Solder Eyelet(s)	118	59	Female	0.25 Ám	10 Áin	125 °C	-40 C	2	Dual	2.95 mm	0.116 "	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Floating Bobbin Top Mount Opening

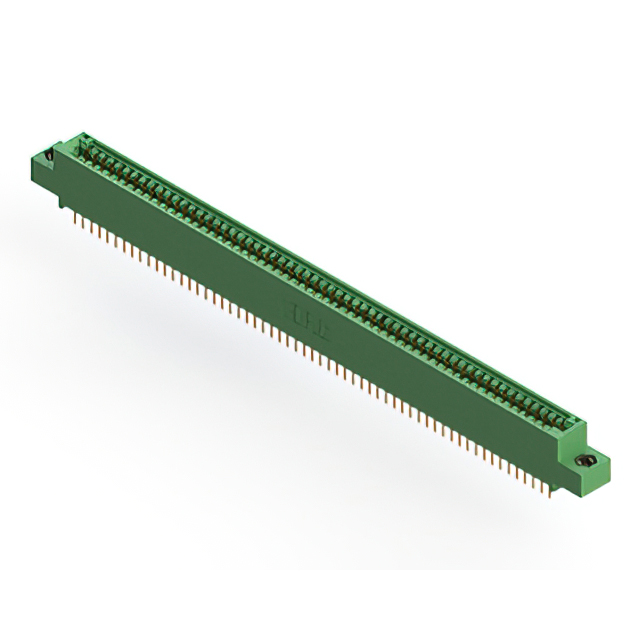

EDAC Inc. 845-118-524-508	2	Diallyl Phthalate (DAP)	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.1 "	2.54 mm	Solder	118	59	Female	0.25 Ám	10 Áin	125 °C	-40 C	2	Dual			Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 845-118-560-507	2	Diallyl Phthalate (DAP)	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	0.1 "	2.54 mm	Solder	118	59	Female	0.25 Ám	10 Áin	125 °C	-40 C	2	Dual			Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	M3 Threaded Insert Top Mount Opening	Card Extender
EDAC Inc. 845-118-560-212	2	Diallyl Phthalate (DAP)	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	0.1 "	2.54 mm	Solder	118	59	Female	0.25 Ám	10 Áin	125 °C	-40 C	2	Dual	3.25 mm	0.128 "	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever	Flush Mount Side Opening Unthreaded	Card Extender
EDAC Inc. 845-118-542-504	2	Diallyl Phthalate (DAP)	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.1 "	2.54 mm	Wire Wrap	118	59	Female	0.25 Ám	10 Áin	125 °C	-40 C	2	Dual	3.96 mm	0.156 "	Green	Copper Alloy	Non Specified - Dual Edge	Cantilever
