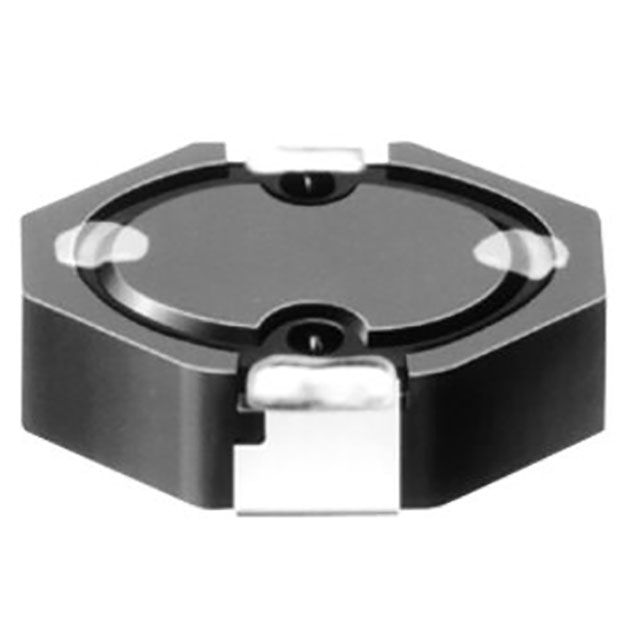

A915BY Series
Manufacturer: Murata Electronics
Beta
⌘K
FIXED IND 10UH 1.5A 0.067OHM SMD
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current - Saturation (Isat) | Inductance Frequency - Test | Package / Case | Tolerance | Type | Current Rating (Amps) | Inductance | Shielding | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Material - Core | DC Resistance (DCR) [Max] | Mounting Type | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 0.118 " | 3 mm | 740 mA | 100 kHz | 2020 (5050 Metric) | 20 % | Drum Core Wirewound | 1.5 A | 10 µH | Shielded | 2020 | 85 °C | -40 C | 0.197 in | 0.197 " | 5 mm | 5 mm | Ferrite | 67 mOhm | Surface Mount | |
 Murata Electronics | 0.118 " | 3 mm | 340 mA | 100 kHz | 2020 (5050 Metric) | 20 % | Drum Core Wirewound | 750 mA | 47 µH | Shielded | 2020 | 85 °C | -40 C | 0.197 in | 0.197 " | 5 mm | 5 mm | Ferrite | Surface Mount | 268 mOhm | |
Murata Electronics | 0.118 " | 3 mm | 1.13 A | 100 kHz | 2020 (5050 Metric) | 20 % | Drum Core Wirewound | 4.7 ÁH | Shielded | 2020 | 85 °C | -40 C | 0.197 in | 0.197 " | 5 mm | 5 mm | Ferrite | 35 mOhm | Surface Mount |
