102792 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

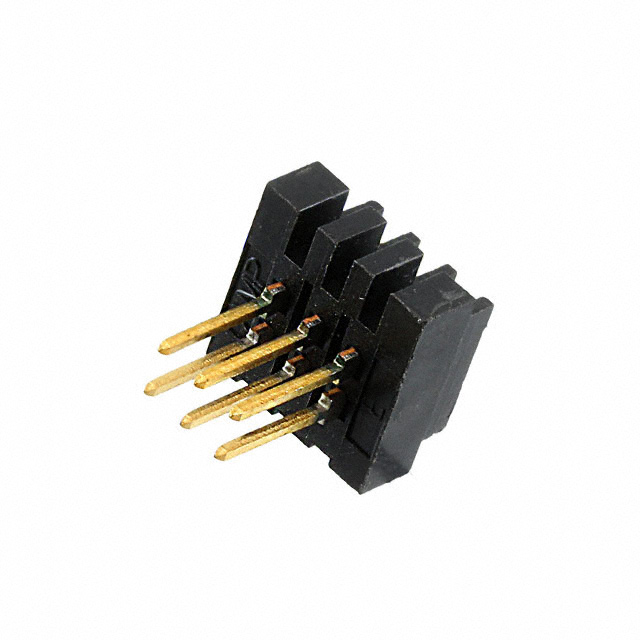

06 AMPMODU HDR ASSY DR UNSHRD ROHS COMPLIANT: YES
| Part | Contact Finish Thickness - Post | Fastening Type | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Contact Type | Style | Insulation Height | Insulation Height [custom] | Number of Positions Loaded | Termination | Contact Length - Mating | Contact Length - Mating | Number of Positions | Insulation Color | Material Flammability Rating | Connector Type | Number of Rows [custom] | Contact Material | Current Rating (Amps) | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Shape | Contact Length - Post [custom] | Contact Length - Post [custom] | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Flash | Push-Pull | Gold | 105 ░C | -65 ░C | Thermoplastic | Male Pin | Board to Cable/Wire | 11.02 mm | 0.434 " | All | Solder | 8.08 mm | 0.318 in | 6 | Black | UL94 V-0 | Header | 2 | Copper Alloy | 3 A | Gold | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Right Angle Through Hole | 0.1 " | 2.54 mm | Square | 0.135 in | 3.43 mm | Unshrouded |
