EP2-16 Series

Catalog

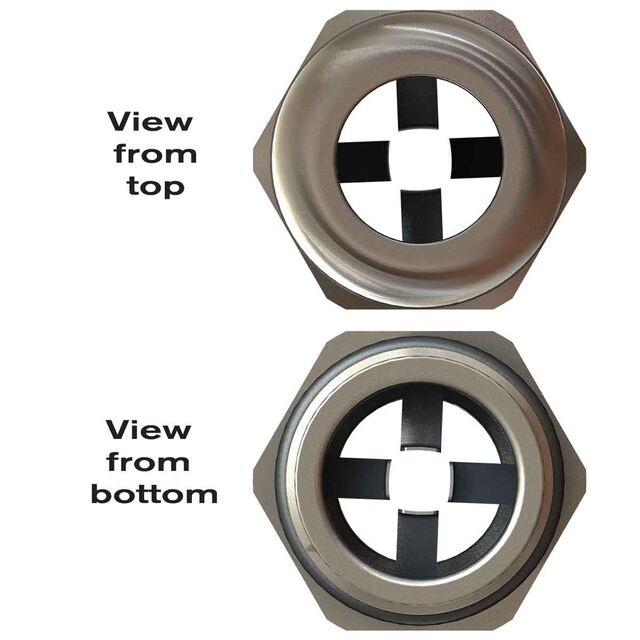

CABLE GLAND 10-14MM PG16 BRASS

Part	Includes	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]	Type	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection	Color	Material
SAB North America EP2-16L	O-Ring	0.886 in	22.5 mm	14 mm	0.551 in	Cable Gland	PG16	-20 ░C	100 °C	0.394 in	10 mm	10 mm	0.394 "	IP68 - Dust Tight Waterproof	Silver	Brass Nickel Plated
