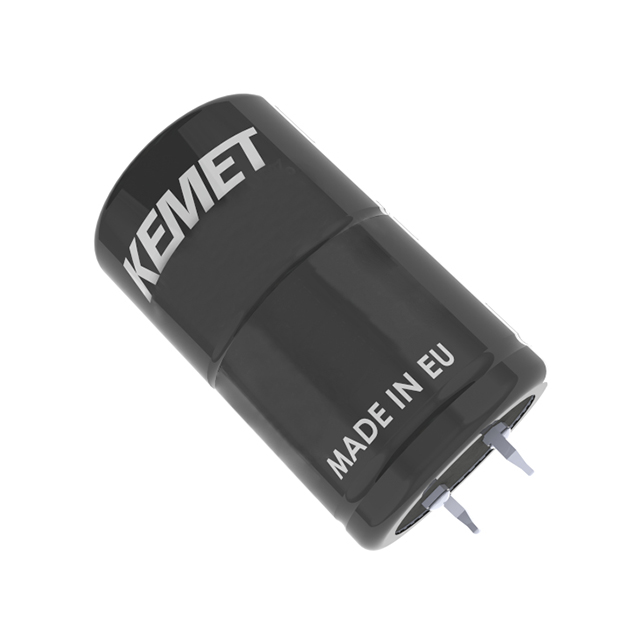

ALA7D Series
Manufacturer: KEMET
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 450V 390UF 20% 15K HRS AEC-Q200
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Ripple Current @ High Frequency | Package / Case | Capacitance | Polarization | Ripple Current @ Low Frequency | Lifetime @ Temp. | ESR (Equivalent Series Resistance) | Size / Dimension [diameter] | Size / Dimension [diameter] | Impedance | Tolerance | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Ratings | Applications | Voltage - Rated | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 85 °C | -40 C | 5.18 A | Radial Can - Snap-In | 390 µF | Polar | 2.5 A | 15000 Hrs | 394 mOhm | 1.378 " | 35 mm | 196.8 mOhms | 20 % | 37 mm | 1.457 in | AEC-Q200 | Automotive | 450 V | Through Hole | ||||
 KEMET | 85 °C | -40 C | 5.82 A | Radial Can - Snap-In | 390 µF | Polar | 2.84 A | 15000 Hrs | 640.2 mOhm | 1.378 " | 35 mm | 1.628 Ohms | 20 % | 1.654 in | AEC-Q200 | Automotive | 500 V | Through Hole | 42 mm | ||||
 KEMET | 85 °C | -40 C | 6.06 A | Radial Can - Snap-In | 430 µF | Polar | 2.68 A | 13000 Hrs | 352.6 mOhm | 1.181 " | 357.6 mOhms | 20 % | AEC-Q200 | Automotive | 450 V | Through Hole | 1.85 in | 47 mm | 30 mm |
