RPRM2 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CONN EN4165 INSERT 20-22 SKT PCB
| Part | Contact Shape | Contact Material | Insulation Material | Connector Type | Mounting Type | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Number of Positions | Fastening Type | Insulation Color | Contact Finish - Post | Number of Positions Loaded | Contact Finish - Mating | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

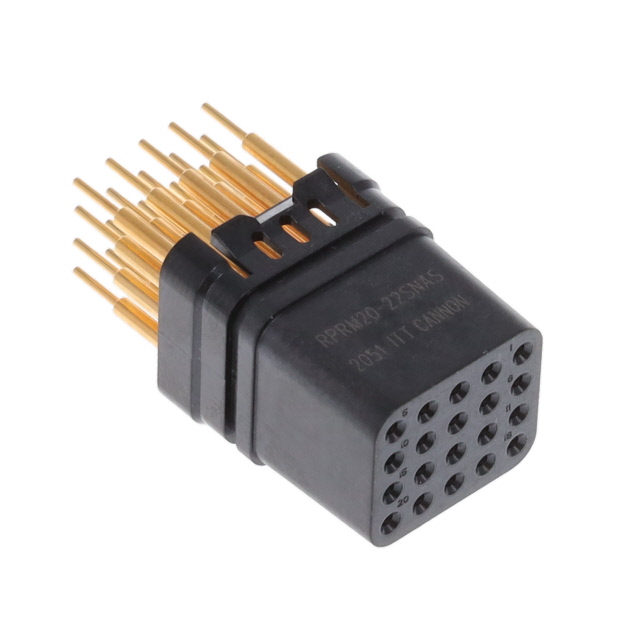

 ITT Cannon, LLC | Circular | Copper Alloy | Thermoplastic | Insert | Through Hole | Female Socket | 175 °C | -55 C | Solder | 20 | Push-Pull | Black | Gold | All | Gold | |

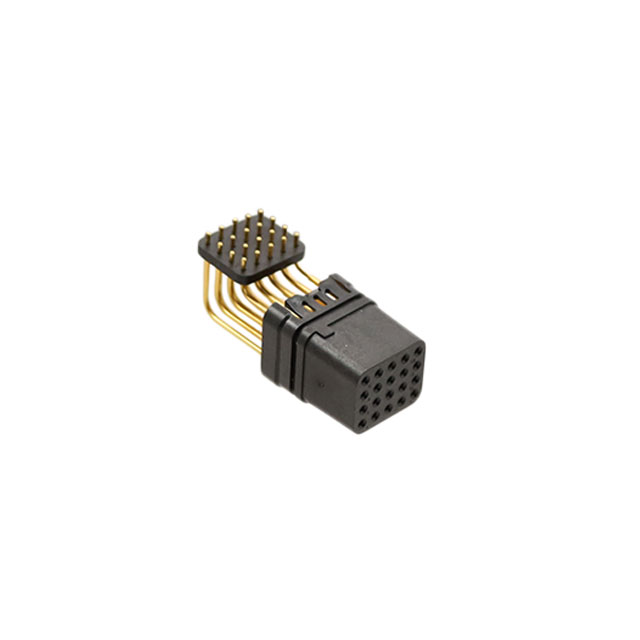

 ITT Cannon, LLC | Circular | Copper Alloy | Thermoplastic | Insert | Right Angle Through Hole | Female Socket | 175 °C | -55 C | Solder | 20 | Push-Pull | Black | Gold | All | Gold | |

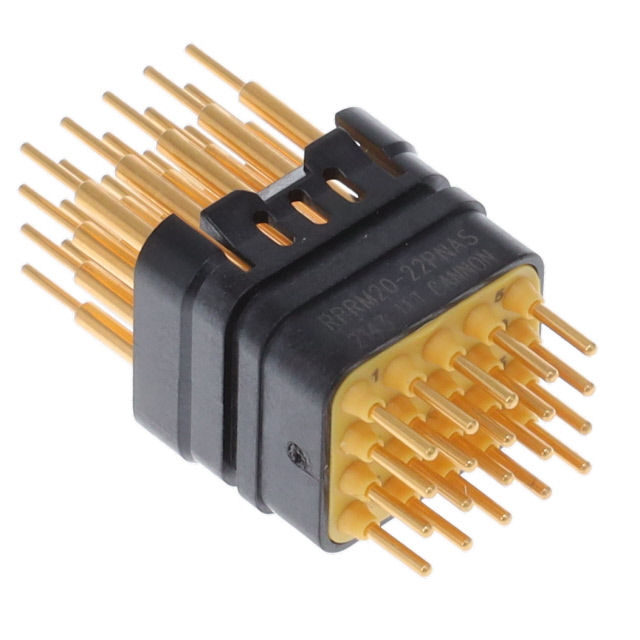

 ITT Cannon, LLC | Circular | Copper Alloy | Thermoplastic | Insert | Through Hole | Male Pin | 175 °C | -55 C | Solder | 20 | Push-Pull | Black | Gold | All | Gold | Unshrouded |

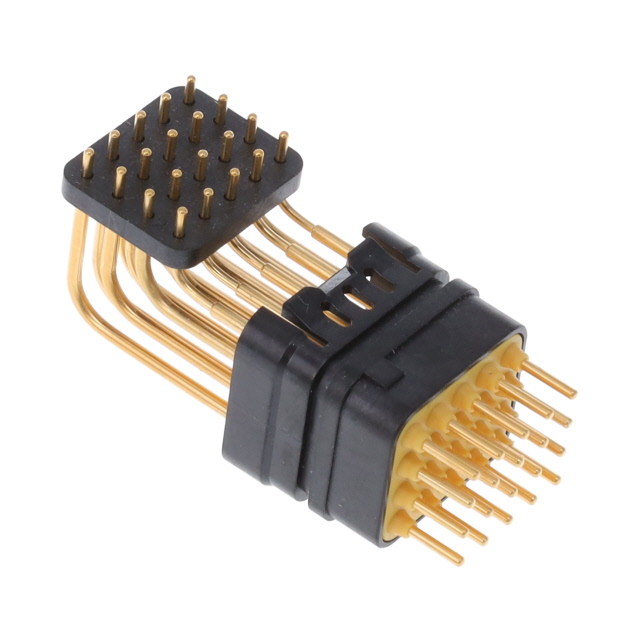

 ITT Cannon, LLC | Circular | Copper Alloy | Thermoplastic | Insert | Right Angle Through Hole | Male Pin | 175 °C | -55 C | Solder | 20 | Push-Pull | Black | Gold | All | Gold | Unshrouded |
