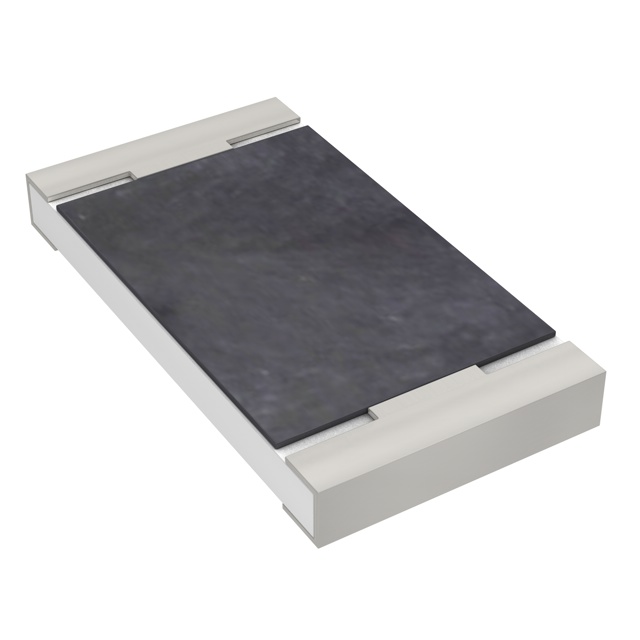

PE2010D Series

Manufacturer: YAGEO

Catalog

RES 0.03 OHM 0.5% 1/2W 2010

Part	Resistance	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [z]	Height - Seated (Max) [z]	Number of Terminations [custom]	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Tolerance	Composition	Ratings	Features	Package / Case
YAGEO PE2010DKE070R03L	0.03 Ohms	2010	0.1 in	5.08 mm	2.54 mm	0.2 in	0.035 "	0.89 mm	2	0.5 W	0.5 W	170 °C	-55 C	50 ppm/░C	0.5 %	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	2010 (5025 Metric)
YAGEO PE2010DKF070R01L	10 mOhms	2010	0.1 in	5.08 mm	2.54 mm	0.2 in	0.035 "	0.89 mm	2	0.5 W	0.5 W	170 °C	-55 C	100 ppm/°C	0.5 %	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	2010 (5025 Metric)
YAGEO PE2010DKF070R015L	15 mOhms	2010	0.1 in	5.08 mm	2.54 mm	0.2 in	0.035 "	0.89 mm	2	0.5 W	0.5 W	170 °C	-55 C	100 ppm/°C	0.5 %	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	2010 (5025 Metric)
YAGEO PE2010DKF7W0R03L	0.03 Ohms	2010	0.1 in	5.08 mm	2.54 mm	0.2 in	0.035 "	0.89 mm	2	1 W		170 °C	-55 C	100 ppm/°C	0.5 %	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	2010 (5025 Metric)
YAGEO PE2010DKF070R04L		2010	0.1 in	5.08 mm	2.54 mm	0.2 in	0.035 "	0.89 mm	2	0.5 W	0.5 W	170 °C	-55 C	100 ppm/°C	0.5 %	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	2010 (5025 Metric)
YAGEO PE2010DKE7W0R03L	0.03 Ohms	2010	0.1 in	5.08 mm	2.54 mm	0.2 in	0.035 "	0.89 mm	2	1 W		170 °C	-55 C	50 ppm/░C	0.5 %	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	2010 (5025 Metric)
YAGEO PE2010DKE070R015L	15 mOhms	2010	0.1 in	5.08 mm	2.54 mm	0.2 in	0.035 "	0.89 mm	2	0.5 W	0.5 W	170 °C	-55 C	50 ppm/░C	0.5 %	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	2010 (5025 Metric)
YAGEO PE2010DKM070R05L	0.05 Ohms	2010	0.1 in	5.08 mm	2.54 mm	0.2 in	0.035 "	0.89 mm	2	0.5 W	0.5 W	170 °C	-55 C	75 ppm/°C	0.5 %	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	2010 (5025 Metric)
YAGEO PE2010DKF7W0R05L	0.05 Ohms	2010	0.1 in	5.08 mm	2.54 mm	0.2 in	0.035 "	0.89 mm	2	1 W		170 °C	-55 C	100 ppm/°C	0.5 %	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	2010 (5025 Metric)
YAGEO PE2010DKM7W0R02L	0.02 Ohms	2010	0.1 in	5.08 mm	2.54 mm	0.2 in	0.035 "	0.89 mm	2	1 W		170 °C	-55 C	75 ppm/°C	0.5 %	Metal Film	AEC-Q200	Automotive AEC-Q200 Current Sense	2010 (5025 Metric)
