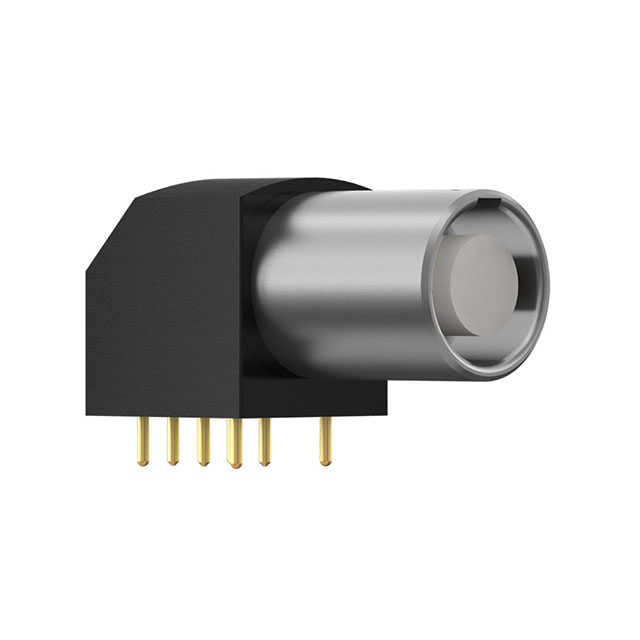

GF0L0C-P Series
Manufacturer: ODU
Beta
⌘K
ODU MINI-SNAP RECEPT, STY F, SZ
| Part | Connector Type | Current Rating (Amps) | Shell Material | Shell Size - Insert [custom] | Voltage Rating | Contact Finish - Mating | Features | Mounting Type | Ingress Protection | Color | Termination | Insert Material | Fastening Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Shell Finish | Orientation | Number of Positions | Contact Material | Shielding | Orientation | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Receptacle Female Sockets | 4 A | Brass | 0 | 300 VDC | Gold | Ground | Panel Mount Right Angle Through Hole | IP50 - Dust Protected | Silver | Solder | Polyetheretherketone (PEEK) | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Metal | Chrome over Nickel | A | 7 | Brass | Unshielded | |||
Receptacle Female Sockets | 7.5 A | Brass | 0 | 500 V | Gold | Ground | Panel Mount Right Angle Through Hole | IP50 - Dust Protected | Silver | Solder | Polyetheretherketone (PEEK) | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Metal | Chrome over Nickel | 2 | Brass | Unshielded | 0 | |||
Receptacle Female Sockets | 6 A | Brass | 0 | 300 VDC | Gold | Ground | Panel Mount Right Angle Through Hole | IP50 - Dust Protected | Silver | Solder | Polyetheretherketone (PEEK) | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Metal | Chrome over Nickel | 4 | Brass | Unshielded | 0 | |||
Receptacle Female Sockets | 4 A | Brass | 0 | 300 VDC | Gold | Ground | Panel Mount Right Angle Through Hole | IP50 - Dust Protected | Silver | Solder | Polyetheretherketone (PEEK) | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Metal | Chrome over Nickel | 6 | Brass | Unshielded | 0 | |||
Receptacle Female Sockets | 7.5 A | Brass | 500 V | Gold | Ground | Panel Mount Right Angle Through Hole | IP50 - Dust Protected | Silver | Solder | Polyetheretherketone (PEEK) | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Metal | Chrome over Nickel | 4 | Brass | Unshielded | 0 | 1 | |||
Receptacle Female Sockets | 4 A | Brass | 0 | Gold | Ground | Panel Mount Right Angle Through Hole | IP50 - Dust Protected | Silver | Solder | Polyetheretherketone (PEEK) | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Metal | Chrome over Nickel | 7 | Brass | 0 | |||||
Receptacle Female Sockets | 6 A | Brass | 400 V | Gold | Ground | Panel Mount Right Angle Through Hole | IP50 - Dust Protected | Silver | Solder | Polyetheretherketone (PEEK) | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Metal | Chrome over Nickel | 6 | Brass | Unshielded | 0 | 1 |
