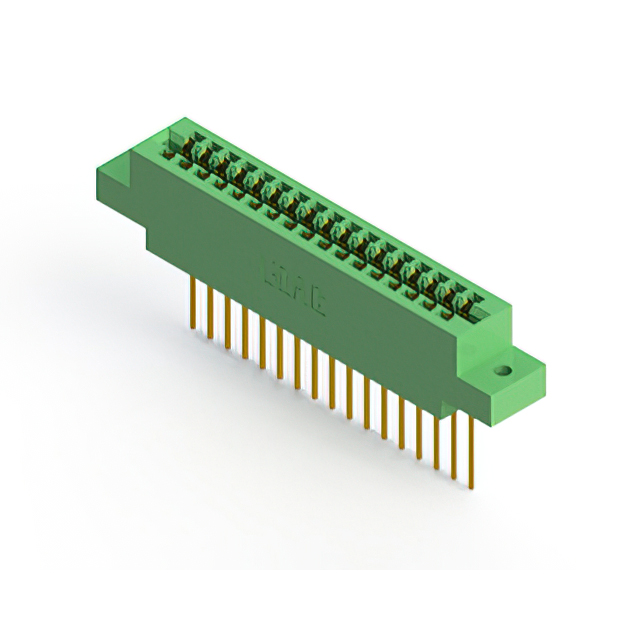

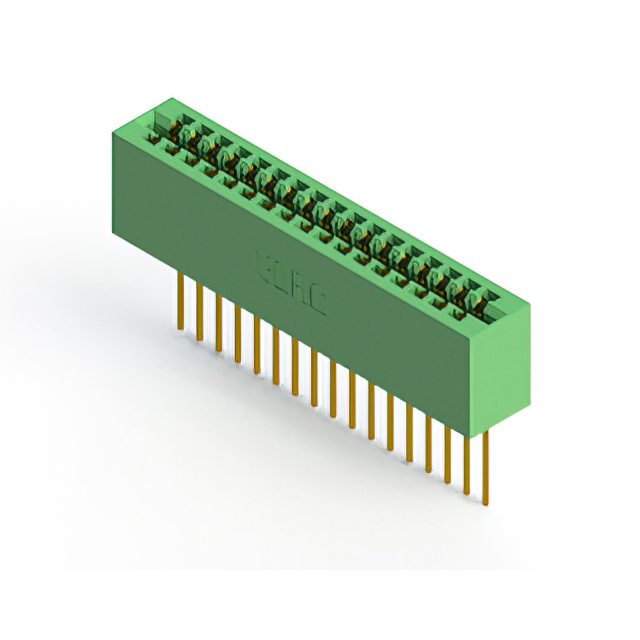

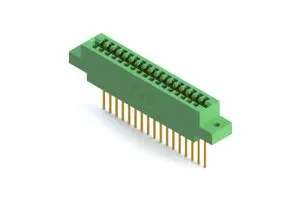

317-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 34POS 0.156
| Part | Material - Insulation | Number of Positions/Bay/Row [custom] | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Pitch | Pitch | Color | Gender | Contact Type | Termination | Contact Finish | Number of Rows [custom] | Contact Material | Card Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 17 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -65 ░C | 125 °C | Through Hole | 3.96 mm | 0.156 in | Green | Female | Cantilever | Wire Wrap | Gold | 2 | Copper Alloy | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Single | 34 |
 EDAC Inc. | Diallyl Phthalate (DAP) | 17 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -65 ░C | 125 °C | Through Hole | 3.96 mm | 0.156 in | Green | Female | Cantilever | Wire Wrap | Gold | 2 | Copper Alloy | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Single | 34 |
