745-104 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 104POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows [custom]	Contact Finish	Read Out	Color	Number of Positions	Card Type	Contact Material	Mounting Type	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Finish Thickness	Contact Finish Thickness	Termination	Pitch	Pitch
EDAC Inc. 745-104-541-206	Polyester Thermoplastic	2	-40 C	105 ░C	Cantilever	2	Gold	Dual	Black	104	Non Specified - Dual Edge	Copper Alloy	Through Hole	52	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit Wire Wrap	0.1 "	2.54 mm
EDAC Inc. 745-104-522-206	Polyester Thermoplastic	2	-40 C	105 ░C	Cantilever	2	Gold	Dual	Black	104	Non Specified - Dual Edge	Copper Alloy	Through Hole	52	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	0.1 "	2.54 mm
EDAC Inc. 745-104-522-201	Polyester Thermoplastic	2	-40 C	105 ░C	Cantilever	2	Gold	Dual	Black	104	Non Specified - Dual Edge	Copper Alloy	Through Hole	52	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	0.1 "	2.54 mm
EDAC Inc. 745-104-520-206	Polyester Thermoplastic	2	-40 C	105 ░C	Cantilever	2	Gold	Dual	Black	104	Non Specified - Dual Edge	Copper Alloy	Through Hole	52	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	0.1 "	2.54 mm

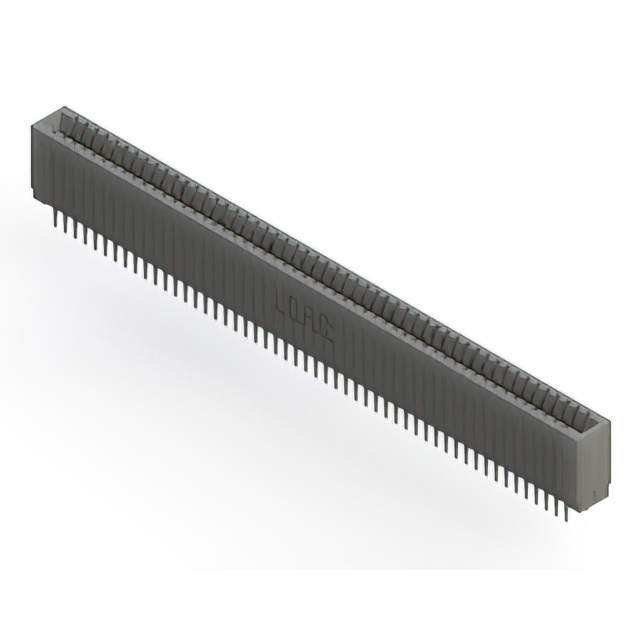

EDAC Inc. 745-104-525-201	Polyester Thermoplastic	2	-40 C	105 ░C	Cantilever	2	Gold	Dual	Black	104	Non Specified - Dual Edge	Copper Alloy	Through Hole	52	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	0.1 "	2.54 mm

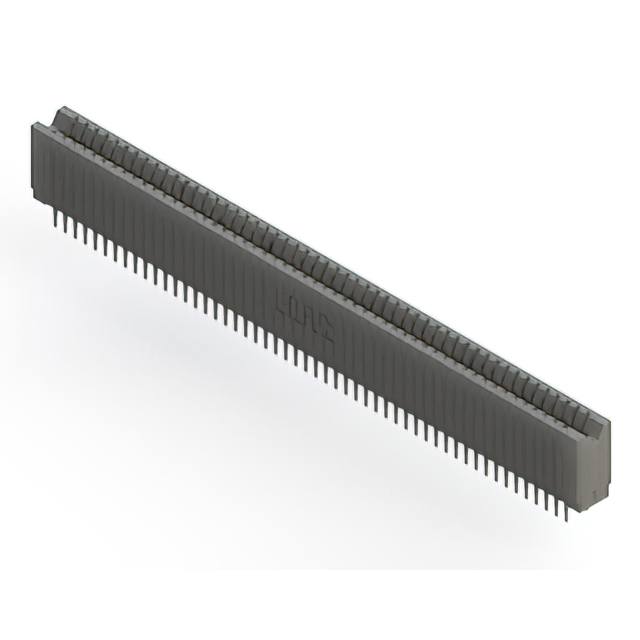

EDAC Inc. 745-104-525-206	Polyester Thermoplastic	2	-40 C	105 ░C	Cantilever	2	Gold	Dual	Black	104	Non Specified - Dual Edge	Copper Alloy	Through Hole	52	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	0.1 "	2.54 mm
EDAC Inc. 745-104-540-201	Polyester Thermoplastic	2	-40 C	105 ░C	Cantilever	2	Gold	Dual	Black	104	Non Specified - Dual Edge	Copper Alloy	Through Hole	52	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit Wire Wrap	0.1 "	2.54 mm
EDAC Inc. 745-104-545-206	Polyester Thermoplastic	2	-40 C	105 ░C	Cantilever	2	Gold	Dual	Black	104	Non Specified - Dual Edge	Copper Alloy	Through Hole	52	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	0.1 "	2.54 mm
EDAC Inc. 745-104-545-201	Polyester Thermoplastic	2	-40 C	105 ░C	Cantilever	2	Gold	Dual	Black	104	Non Specified - Dual Edge	Copper Alloy	Through Hole	52	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	0.1 "	2.54 mm
EDAC Inc. 745-104-560-206	Polyester Thermoplastic	2	-40 C	105 ░C	Cantilever Make Before Break	2	Gold	Dual	Black	104	Non Specified - Dual Edge	Copper Alloy	Through Hole	52	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	30 Áin	0.76 Ám	Press-Fit	0.1 "	2.54 mm
