06DB Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

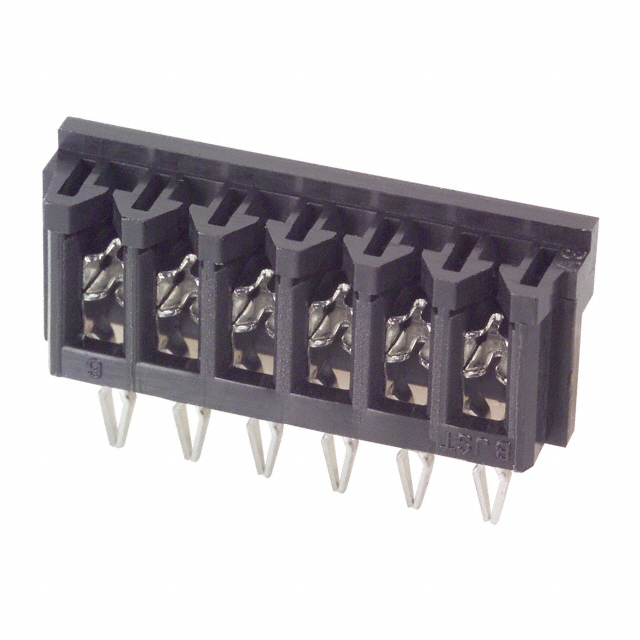

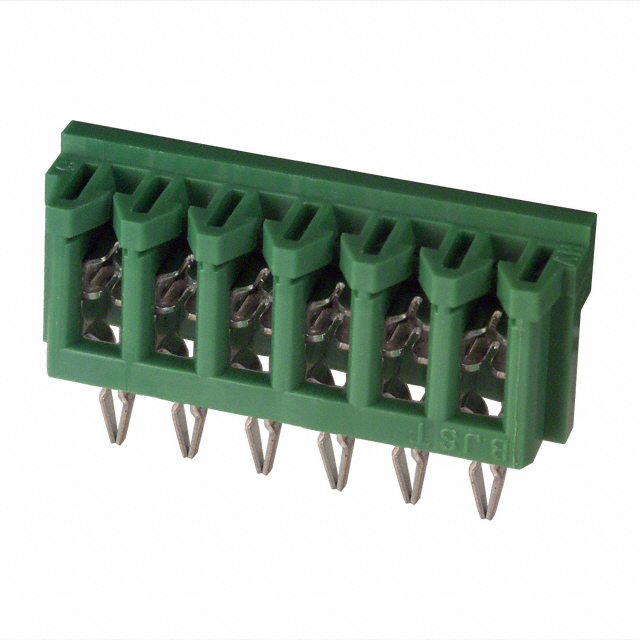

CONN WIRE IDC 6POS 24-28AWG PCB
| Part | Number of Positions Loaded | Number of Rows | Wire Gauge [Min] | Wire Gauge [Max] | Wire Gauge | Color | Cable Termination | Board-Side Pitch | Board-Side Pitch | Connector Type | Features | Cable Pitch | Cable Pitch | Number of Positions | Mounting Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | All | 1 | 24 AWG | 28 AWG | Stranded | Green | IDC | 2.5 mm | 0.098 in | Individual Wires | Closed End | 0.098 in | 2.5 mm | 6 | Press-Fit Through Hole | Tin-Lead |
 JST Sales America Inc. | All | 1 | 24 AWG | 28 AWG | Stranded | White | IDC | 2.5 mm | 0.098 in | Individual Wires | Closed End | 0.098 in | 2.5 mm | 6 | Press-Fit Through Hole | Tin-Lead |
 JST Sales America Inc. | All | 1 | 24 AWG | 28 AWG | Stranded | Black | IDC | 2.5 mm | 0.098 in | Individual Wires | Closed End | 0.098 in | 2.5 mm | 6 | Press-Fit Through Hole | Tin-Lead |
