SSA-EB Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

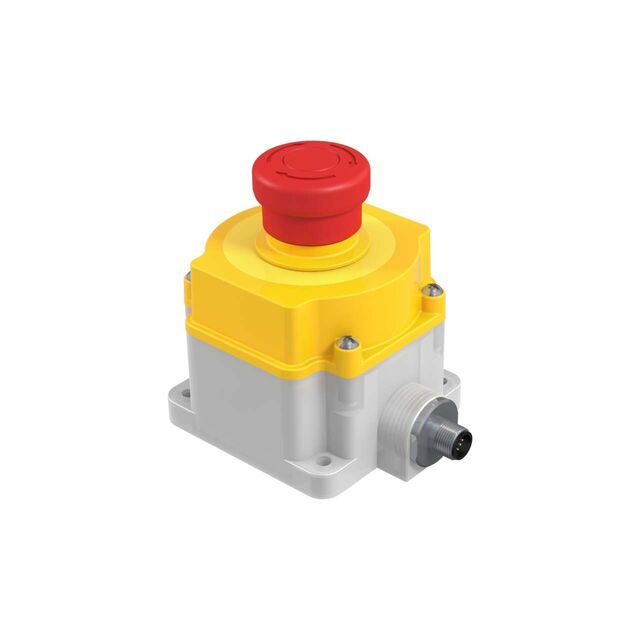

EMERGENCY STOP SWITCHES / E-STOP SWITCHES SSA-EB1 30 MM MOUNT EMERGENCY STOP PUSH BUTTON; GREEN, RED FLASH ILLUMINATED BASE; 40 MM ACTUATOR; IP65; CONTACTS: 2 NC; 5-PIN M12 INTEGRAL QD; SAFETY BUS NODE COMPATIBLE CH1=PINS1&4 CH2=PINS2&5
| Part | Voltage Rating - DC | Switch Function | Current Rating (Amps) | Ingress Protection | Termination Style | Circuit | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Reset Operation | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | For Use With/Related Products | Accessory Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | 24 V | On-Off | 2 A | IP65 - Dust Tight Water Resistant | Connector | DPST-NC | Panel Mount Front | 55 °C | -25 °C | Pull Twist | 30 mm | ||||
 BANNER ENGINEERING | 75 V | On-Off | 2 A | IP50 - Dust Protected | Connector | DPST-NC | Chassis Mount | 50 °C | -25 °C | Twist | 60 V | ||||
 BANNER ENGINEERING | Off-On On-Off | Screw Terminal | DPST-NO/NC | Panel Mount Front | 60 °C | -25 °C | Pull Twist | 30 mm | |||||||

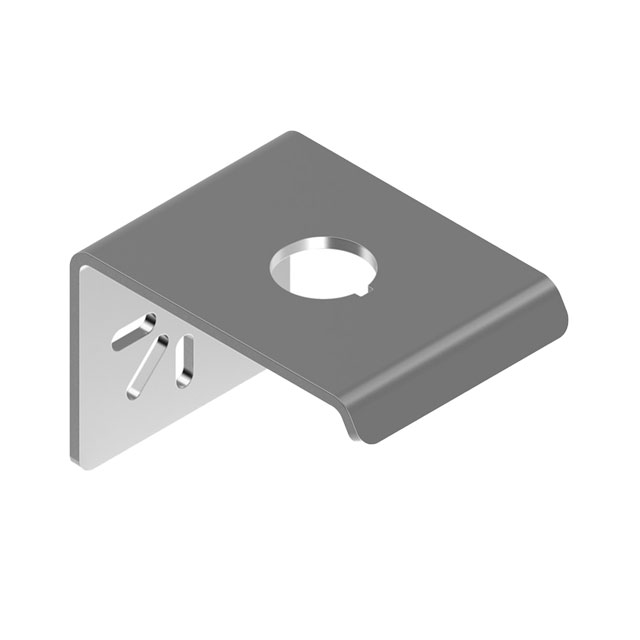

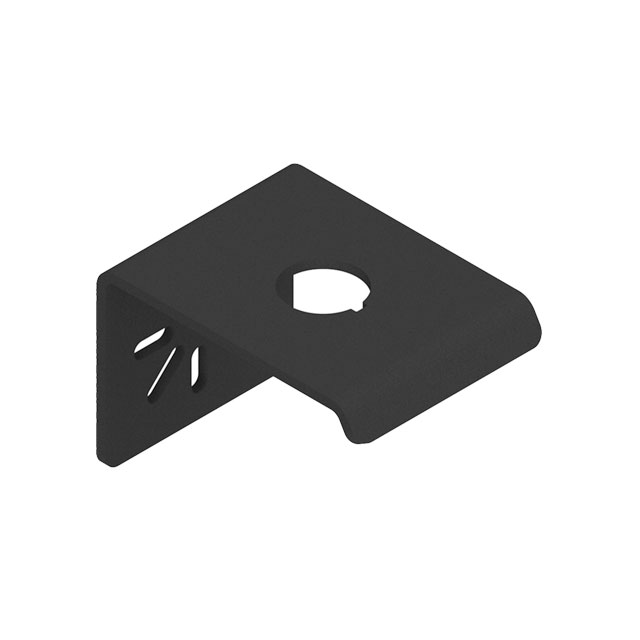

 BANNER ENGINEERING | SSA-EB Series | Mounting Bracket | |||||||||||||
 BANNER ENGINEERING | 24 V | Off-On On-Off | 2 A | IP65 - Dust Tight Water Resistant | Screw Terminal | DPST-NO/NC | Panel Mount Front | 60 °C | -25 °C | Pull Twist | 30 mm | ||||
 BANNER ENGINEERING | 24 V | On-Off | 100 mA | IP65 - Dust Tight Water Resistant | Connector | DPST-NC | Chassis Mount | 50 °C | -25 °C | Twist | |||||
 BANNER ENGINEERING | 24 V | Off-On On-Off | 2 A | IP65 - Dust Tight Water Resistant | Connector | 3PST-2NC/1NO | Chassis Mount | 55 °C | -25 °C | Twist | Illuminated (Red) | ||||
 BANNER ENGINEERING | 24 V | On-Off | 2 A | IP65 - Dust Tight Water Resistant | Connector | DPST-NC | Chassis Mount | 55 °C | -25 °C | Pull Twist | |||||
 BANNER ENGINEERING | 24 V | On-Off | 2 A | IP65 - Dust Tight Water Resistant | Screw Terminal | DPST-NC | Panel Mount Front | 60 °C | -25 °C | Pull Twist | 30 mm | ||||
 BANNER ENGINEERING | 75 V | On-Off | 2 A | IP50 - Dust Protected | Connector | DPST-NC | Chassis Mount | 50 °C | -20 ░C | Twist | 60 V |
