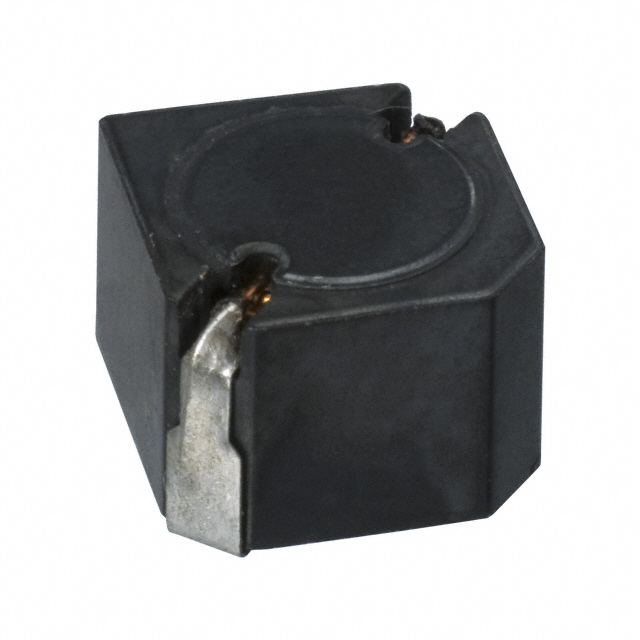

ELL-8UV Series

Catalog

FIXED IND 4.7UH 4.2MA 12 OHM SMD

Part	Current Rating (Amps)	Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Material - Core	DC Resistance (DCR)	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance	Tolerance
Panasonic Industrial Automation Sales ELL-8UV4R7N	4.2 mA	Drum Core Wirewound	Surface Mount	-40 °C	105 ░C	Nonstandard	Ferrite	12 Ohm	100 kHz	0.256 in	6.5 mm	Unshielded	0.315 in	8 mm	0.315 "	8 mm	4.7 ÁH	30 %
Panasonic Industrial Automation Sales ELL-8UV330M	1.65 mA	Drum Core Wirewound	Surface Mount	-40 °C	105 ░C	Nonstandard	Ferrite	78 Ohm	100 kHz	0.256 in	6.5 mm	Unshielded	0.315 in	8 mm	0.315 "	8 mm	33 µH	20 %
Panasonic Industrial Automation Sales ELL-8UV390M	1.5 mA	Drum Core Wirewound	Surface Mount	-40 °C	105 ░C	Nonstandard	Ferrite	90 Ohm	100 kHz	0.256 in	6.5 mm	Unshielded	0.315 in	8 mm	0.315 "	8 mm	39 µH	20 %
Panasonic Industrial Automation Sales ELL-8UV470M	1.25 mA	Drum Core Wirewound	Surface Mount	-40 °C	105 ░C	Nonstandard	Ferrite	100 Ohm	100 kHz	0.256 in	6.5 mm	Unshielded	0.315 in	8 mm	0.315 "	8 mm	47 µH	20 %
Panasonic Industrial Automation Sales ELL-8UV100M	3 mA	Drum Core Wirewound	Surface Mount	-40 °C	105 ░C	Nonstandard	Ferrite	22 Ohm	100 kHz	0.256 in	6.5 mm	Unshielded	0.315 in	8 mm	0.315 "	8 mm	10 µH	20 %
Panasonic Industrial Automation Sales ELL-8UV2R7N	4.75 mA	Drum Core Wirewound	Surface Mount	-40 °C	105 ░C	Nonstandard	Ferrite	10 Ohm	100 kHz	0.256 in	6.5 mm	Unshielded	0.315 in	8 mm	0.315 "	8 mm	2.7 µH	30 %
